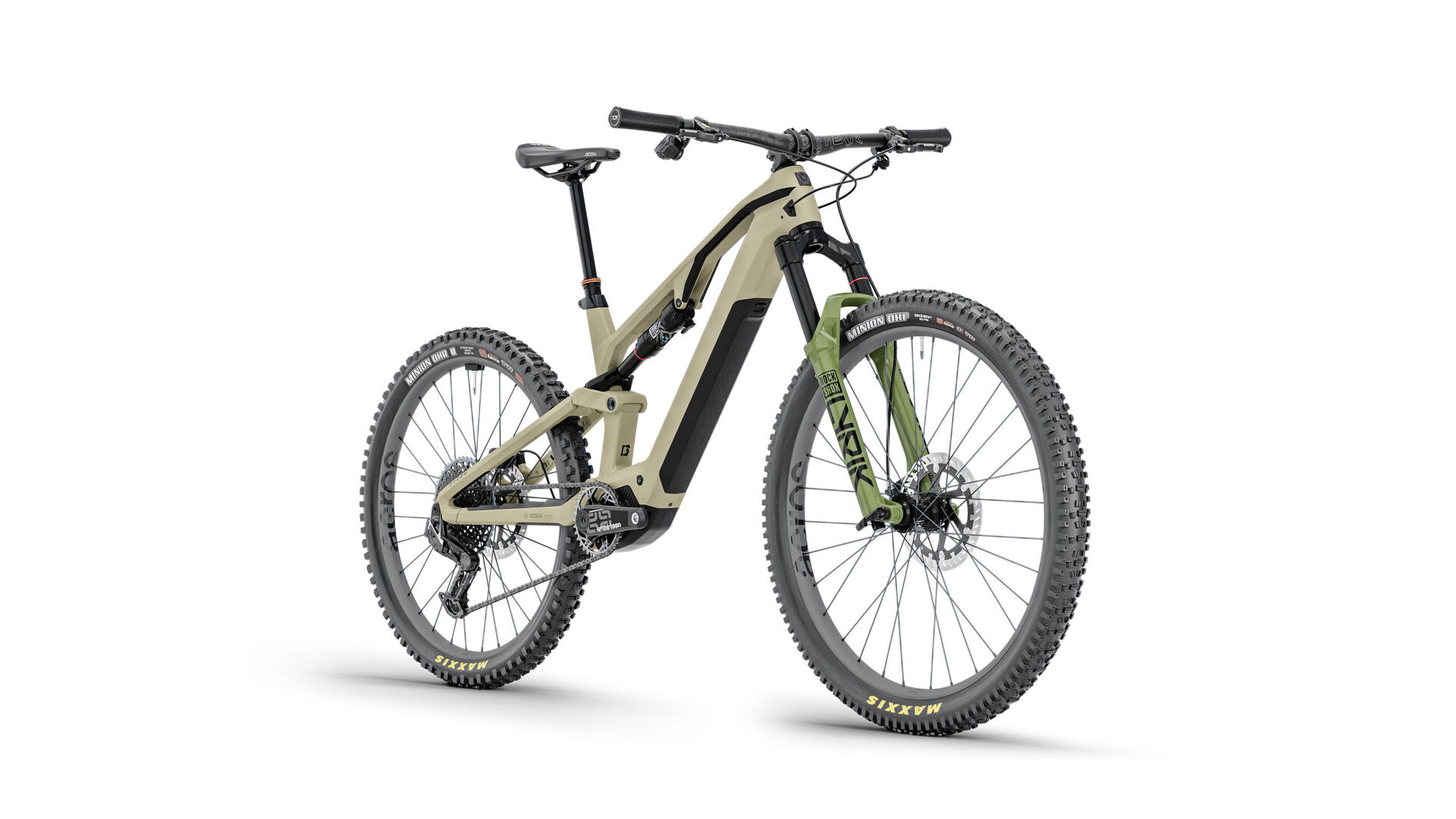

Ryvon ST 10.0 full suspension
9,499.95€ *
E-MOUNTAINBIKE ➜ Material: carbon ✓ Weight: 18,40 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 140 kg ✓ ➤ Discover now
Product information
"Ryvon ST 10.0 full suspension "
Enjoy unlimited fun on single trails with the CONWAY RYVON ST 10.0 e-mountain bike - the ultimate all-in-one solution for unforgettable adventures in the nature! This bike is the perfect choice for all-mountain enthusiasts and those who want to become one.
Our interchangeable battery concept not only offers more energy density, but also allows for faster charging. Enjoy longer rides with more power and change the battery in seconds to continue riding without interruption.
The RYVON ST 10.0 offers the flexibility by using a 160 mm suspension fork without compromising on geometry. You can adjust the suspension to your preferences while maintaining stability.
We know that every rider has unique requirements. That's why we developed CONWAY Ergonomic Sizing. Our frame sizes are perfectly matched to your needs and offer coordinated grip diameters, stem lengths, handlebar widths and crank lengths depending on your frame size.
The RYVON ST 10.0 is equipped with a powerful Light-EMTB motor, which provides you with the necessary power for demanding trails. Together with a high-end spec equipment such as the SRAM "X0 Eagle AXS T-Type" circuit maximum performance is guaranteed. The Eagle Transmission is light, robust, shifts precisely - and this under full load.
Our interchangeable battery concept not only offers more energy density, but also allows for faster charging. Enjoy longer rides with more power and change the battery in seconds to continue riding without interruption.
The RYVON ST 10.0 offers the flexibility by using a 160 mm suspension fork without compromising on geometry. You can adjust the suspension to your preferences while maintaining stability.
We know that every rider has unique requirements. That's why we developed CONWAY Ergonomic Sizing. Our frame sizes are perfectly matched to your needs and offer coordinated grip diameters, stem lengths, handlebar widths and crank lengths depending on your frame size.
The RYVON ST 10.0 is equipped with a powerful Light-EMTB motor, which provides you with the necessary power for demanding trails. Together with a high-end spec equipment such as the SRAM "X0 Eagle AXS T-Type" circuit maximum performance is guaranteed. The Eagle Transmission is light, robust, shifts precisely - and this under full load.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, Carbon, Fullsuspension, 40 cm |
| Dropout: | SRAM "UDH", for thru axle, 1mm thread pitch |
| Fork: | ROCKSHOX suspension fork "Lyrik Ultimate", 29", 150mm travel, tapered, post mount, boost, Maxle Ultimate thru axle, 44mm offset, e-bike, black |
| Headset: | ACROS ZS56/28,6/OD62 / EC56/40, 1 1/8" - 1,5" tapered |

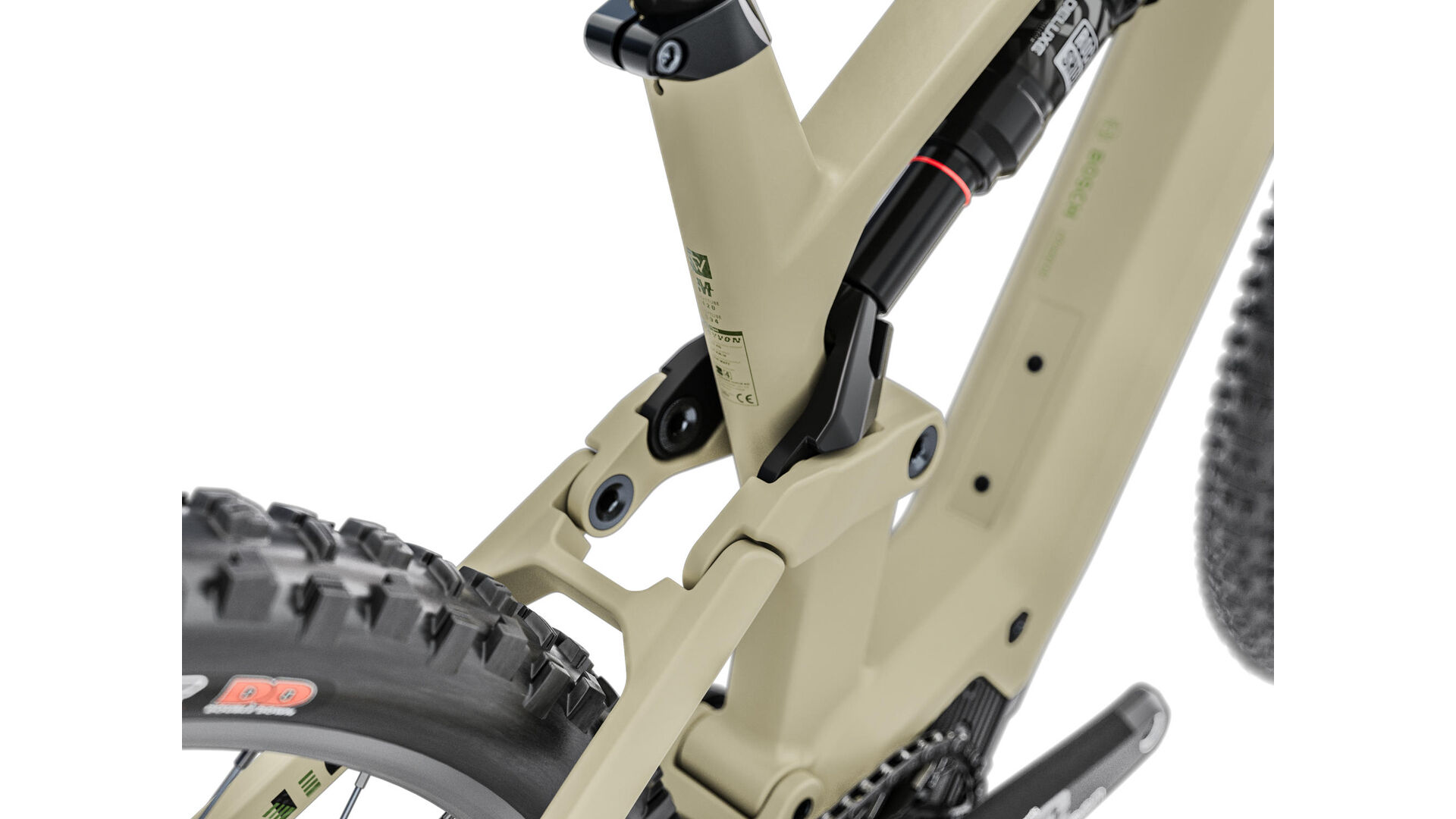

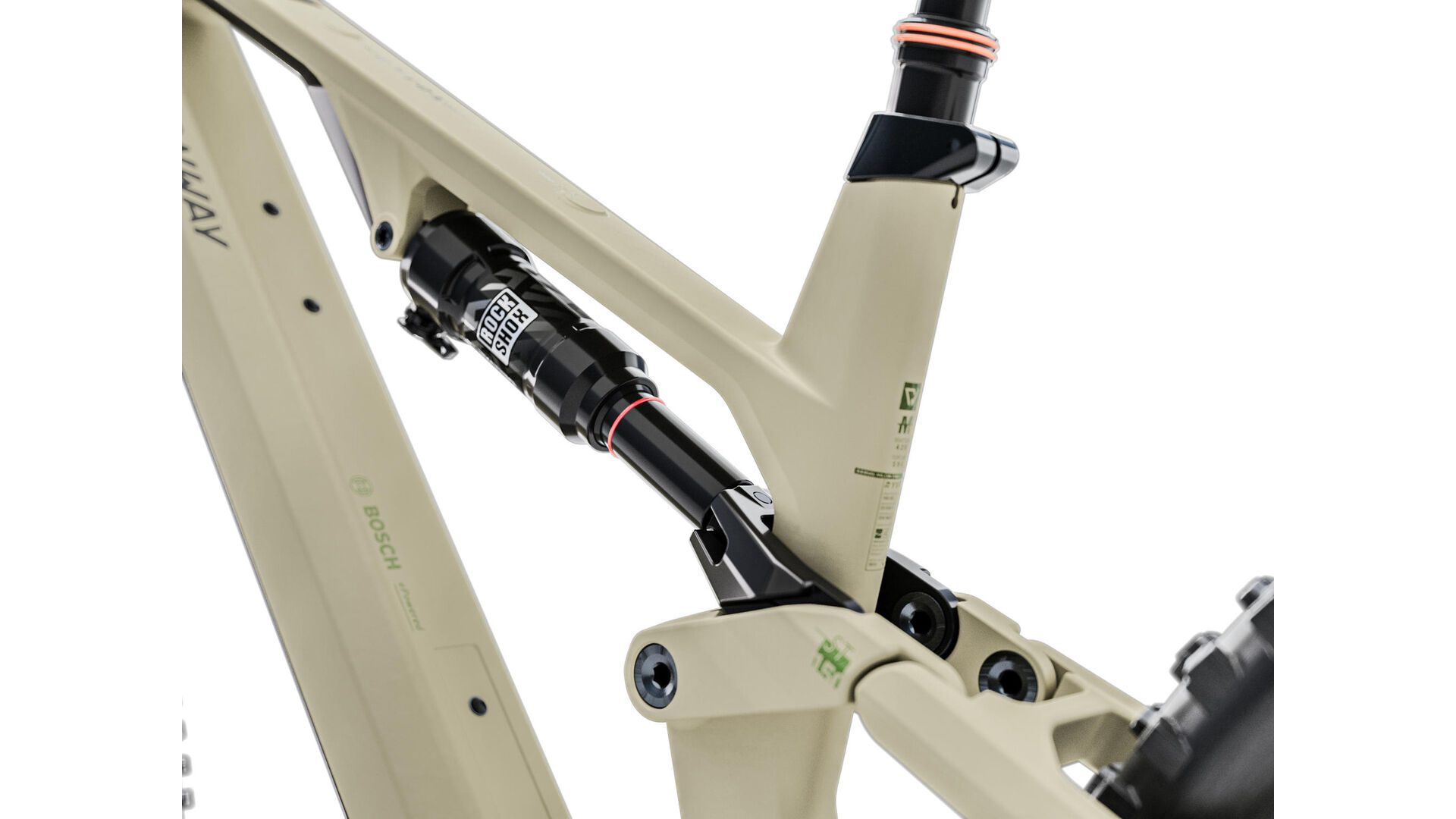

| Rear shock: | ROCKSHOX "Super Deluxe Select +", 230 mm x 60 mm |
| Crank arm: | E*THIRTEEN "Helix Race Carbon", 160 mm, für Bosch Gen. 4, Carbon, ISIS, 27,8 mm Offset |
| Chain ring / belt ring: | SRAM "XX Eagle Transmission", 34 Zähne, Direct Mount, Bosch Gen. 4 |
| Bremse V.R.: | MAGURA Scheibenbremse "MT7", hydraulisch, 4 Kolben, Post Mount |
| Bremse H.R.: | MAGURA Scheibenbremse "MT7", hydraulisch, 4 Kolben |
| Front rotor: | MAGURA "MDR-P", Ø 203 mm, 6-Loch, zweiteilig |
| Rear rotor: | MAGURA "MDR-P", Ø 203 mm, 6-Loch, zweiteilig |
| Shifting lever: | SRAM "Eagle AXS POD", 12-fach |
| Rear derailleur: | SRAM "X0 Eagle AXS Transmission" |
| Cassette / belt sprocket: | SRAM "XS-1295 T-Type", 12-fach X0 Eagle Transmission, 10-52 Zähne, XD |
| Chain / belt: | SRAM "GX Eagle Transmission Flattop" |

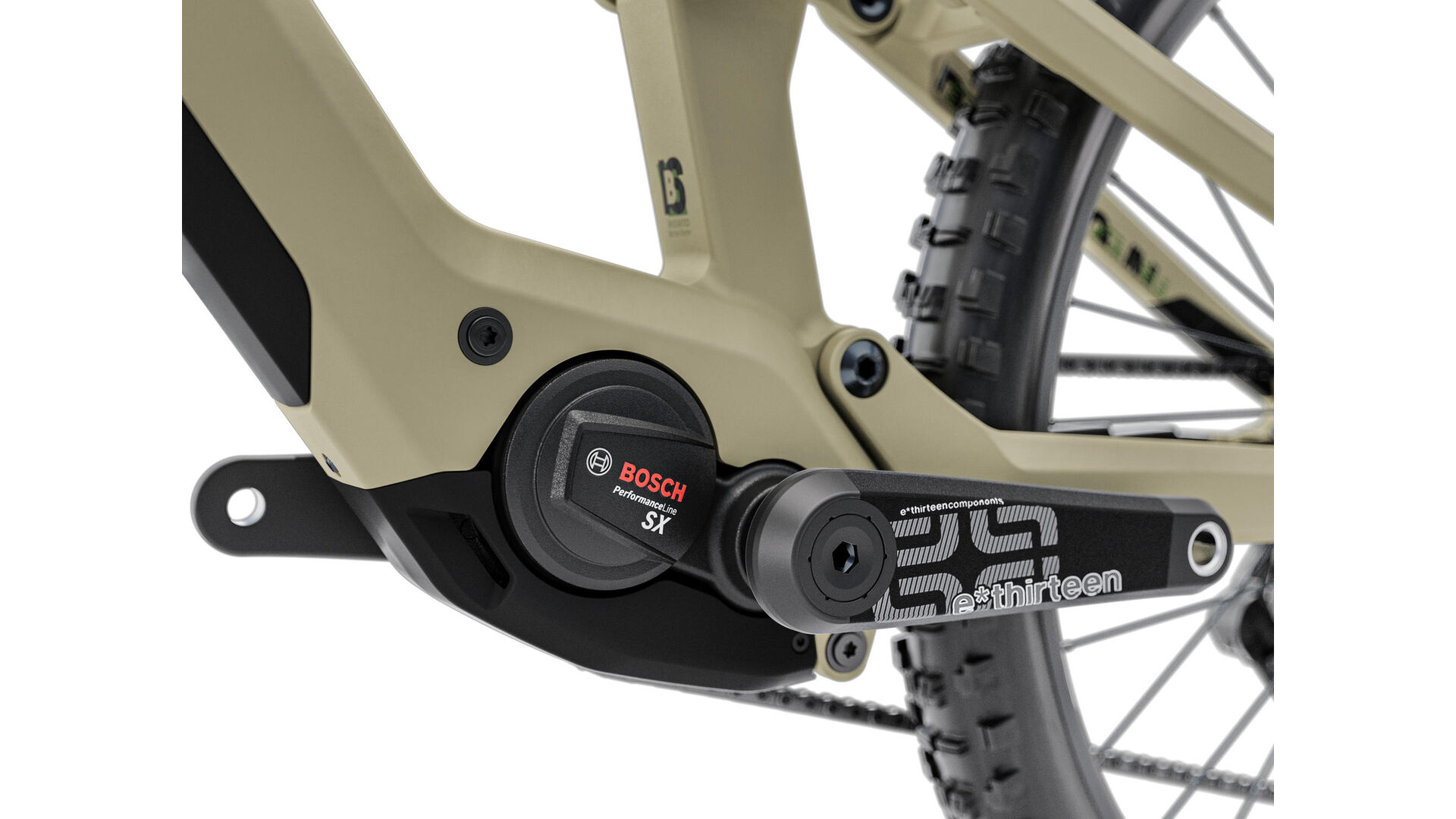

| Drive unit: | BOSCH "Performance Line SX" Gen. 4, BES3 |
| Battery: | BOSCH "CompactTube 400", 400 Wh, BES3, horizontal |
| Charger: | BOSCH 4 A, BES3 |
| Remote: | BOSCH "BRC3300", mini remote |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Laufrad V.R.: | ACROS Vorderrad "Enduro Carbon", 15 x 110 mm, 6-Loch |
| Laufrad H.R.: | ACROS "Enduro Carbon", 12 x 148 mm, 6-Loch, 12-fach XD |
| Spokes: | ACROS |
| Front hub: | ACROS "Enduro Carbon 29", 15 x 110 mm |
| Rear hub: | ACROS "Enduro Carbon 27,5", 12 x 148 mm |
| Front tires: | MAXXIS "Minion DHF", 63-622, 3C MaxxGrip, Exo+ Protection, Tubeless ready, faltbar, 60 TPI |
| Rear tires: | MAXXIS "Minion DHR II", 61-584, 3C MaxxTerra, Exo+ Protection, Tubeless ready, faltbar, 60 TPI |
| Handle bar: | RACEFACE "Next R 35", 760mm, carbon, Ø 35mm, backsweep 8°, upsweep 5°, rise 10mm, black |
| Stem: | RACEFACE "Turbine R", 1 1/8", 35mm handlebar clamp, 32mm long, angle 0°, stack 42mm, black |
| Grips: | SQLAB "70X", 135mm, black |
| Saddle: | FIZIK "Terra Aidon X1", unisex, type 2, regular, black |
| Seat post: | VECNUM dropper seatpost "Nivo", Ø 31,6mm, 451mm long, adjustment range: 152mm, steppless, black |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Drive system: | Bosch |
| Drive version: | middle motor |
| Battery capacity: | 400 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 40 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | SRAM |
| Shifting model: | X0 AXS |
| Brake system: | hydraulic disc brake |
| Travel: | 150 mm |
| Frame travel: | 150 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Permissible total weight: | 140 kg |
| Material: | carbon |
| Colour: | beige, green |
| Colour designation: | desert matt / meadow green |
| Weight: | 18,40 kg |
| EAN | 4251971145665 |
Geometry data
S
M
L
XL
| A - Seat tube: | 400 mm |
| B - Toptube: | 572 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 32 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 442 mm |
| G - Steering tube: | 100 mm |
| H - Reach: | 445 mm |
| I - Stack: | 615 mm |
| J - Wheel distance: | 1.223 mm |
| A - Seat tube: | 420 mm |
| B - Toptube: | 594 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 442 mm |
| G - Steering tube: | 110 mm |
| H - Reach: | 465 mm |
| I - Stack: | 623 mm |
| J - Wheel distance: | 1.243 mm |
| A - Seat tube: | 440 mm |
| B - Toptube: | 618 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 442 mm |
| G - Steering tube: | 125 mm |
| H - Reach: | 485 mm |
| I - Stack: | 637 mm |
| J - Wheel distance: | 1.273 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 641 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 50 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 442 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 505 mm |
| I - Stack: | 650 mm |
| J - Wheel distance: | 1.300 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 400 mm | 420 mm | 440 mm | 460 mm |
| B - Toptube: | 572 mm | 594 mm | 618 mm | 641 mm |
| C - Steering tube angle: | 64° | 64° | 64° | 64° |
| D - Stem length: | 32 mm | 40 mm | 40 mm | 50 mm |
| E - Seat angle: | 78° | 78° | 78° | 78° |
| F - Kettenstrebe: | 442 mm | 442 mm | 442 mm | 442 mm |
| G - Steering tube: | 100 mm | 110 mm | 125 mm | 140 mm |
| H - Reach: | 445 mm | 465 mm | 485 mm | 505 mm |
| I - Stack: | 615 mm | 623 mm | 637 mm | 650 mm |
| J - Wheel distance: | 1.223 mm | 1.243 mm | 1.273 mm | 1.300 mm |
