MS 3.9 Hardtail
599.95€ *
MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 14,80 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
Product information

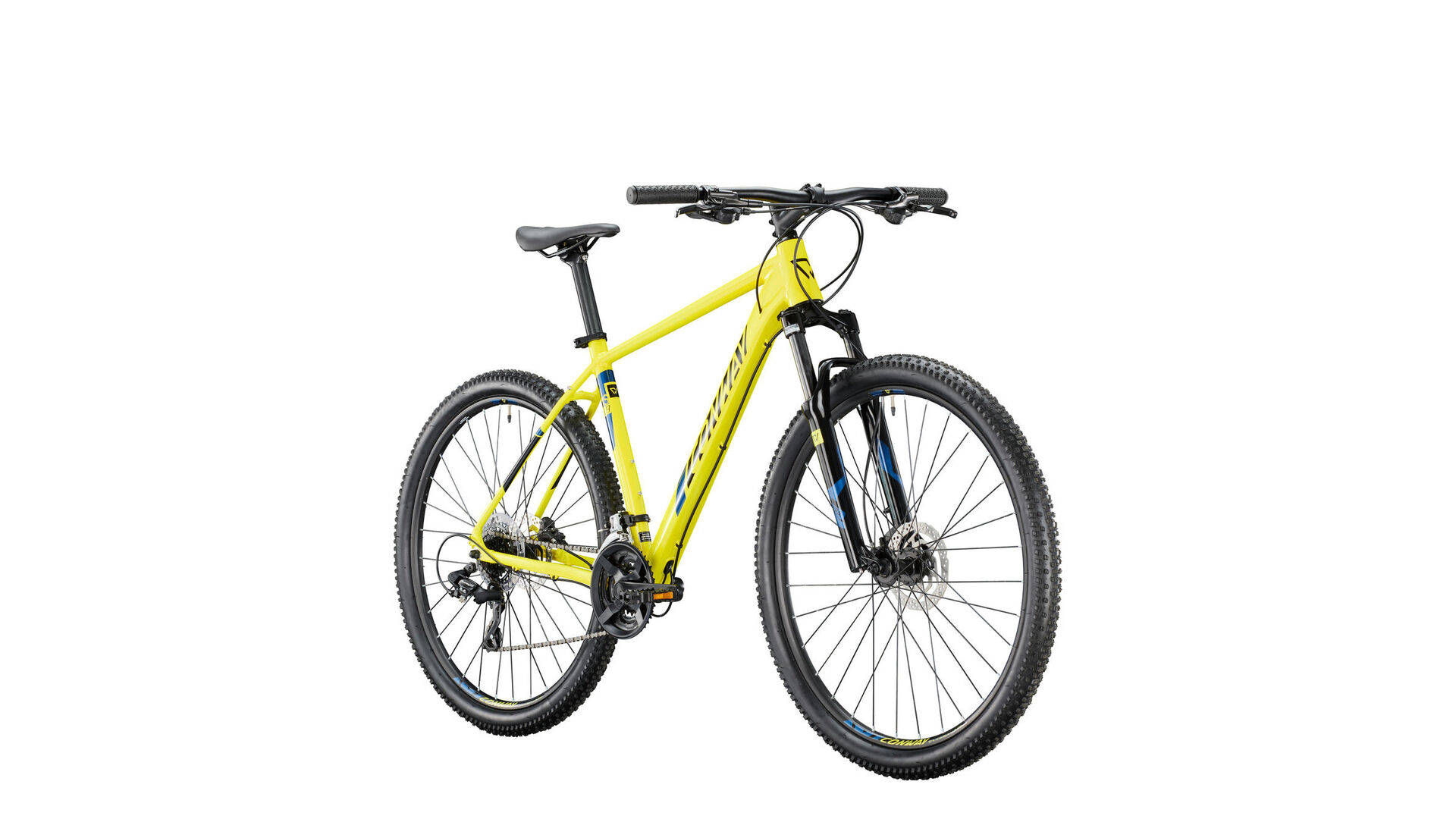

"MS 3.9 Hardtail "
Chic and solid - that is the entry-level mountain bike "MS 3.9" from CONWAY. The lightweight yet sturdy aluminum frame provides a sporty yet comfortable riding position, so that you can use this bike for long tours on the weekend as well as for a crisp after-work ride.
New components that complement the solid equipment are the hydraulic disc brakes, which can be finely dosed on the one hand, but which also grip properly when it comes down to it - especially in wet conditions. The 57 mm wide "Ranger" WTB tires bite firmly into loose ground and convince with their high puncture protection.
The suspension fork from SUNTOUR smoothes bumps from field and forest roads with the usual 100 mm travel in cross country and marathon. For steep climbs and long descents, the 7-speed SHIMANO derailleur with its total of 21 gears always provides the right cadence.
If there is no forest road for the evening round, then the "MS 3.9" can also be steered agilely through the city. Since the frame has the necessary eyelets, you can also retrofit mudguards for everyday use. And of course, the good damping properties also score on cobblestones and potholed roads.
New components that complement the solid equipment are the hydraulic disc brakes, which can be finely dosed on the one hand, but which also grip properly when it comes down to it - especially in wet conditions. The 57 mm wide "Ranger" WTB tires bite firmly into loose ground and convince with their high puncture protection.
The suspension fork from SUNTOUR smoothes bumps from field and forest roads with the usual 100 mm travel in cross country and marathon. For steep climbs and long descents, the 7-speed SHIMANO derailleur with its total of 21 gears always provides the right cadence.
If there is no forest road for the evening round, then the "MS 3.9" can also be steered agilely through the city. Since the frame has the necessary eyelets, you can also retrofit mudguards for everyday use. And of course, the good damping properties also score on cobblestones and potholed roads.
Spezifikationen
| Frame: | CONWAY, Alu |
| Dropout: | 0.281.106/5 |
| Fork: | RST "Capa-T", 100 mm |
| Headset: | ZS44 / ZS56, Reduzierkonus |
| Crank set: | SHIMANO "FC-TY301", 24/34/42 Z., 175 mm |
| Bottom Bracket: | SHIMANO "BB-UN100" |
| Brakes: | TEKTRO "HD-M275" |
| Brake lever: | TEKTRO "HD-M275" |
| Front rotor: | TEKTRO "TR160-27", 160 mm |
| Rear rotor: | TEKTRO "TR160-27", 160 mm |
| Shifting lever: | SHIMANO "SL-M315" |
| Front derailleur: | SHIMANO "Altus FD-M313" |
| Rear derailleur: | SHIMANO "RD-TX800", 7speed |
| Cassette / belt sprocket: | SHIMANO "CS-HG200", 12-32 Z. |
| Chain / belt: | KMC "Z7" |
| Rims: | CONWAY Hohlkammer |
| Spokes: | Stahl schwarz |
| Front hub: | CONWAY "Alloy" QR |
| Rear hub: | CONWAY "Alloy" QR |
| Front tires: | WTB "Ranger", 57-622 |
| Rear tires: | WTB "Ranger", 57-622 |
| Handle bar: | CONWAY Riser, Ø 31,8, 720 mm |
| Stem: | CONWAY, 31,8, 70 mm |
| Grips: | CONWAY "Sport" |
| Saddle: | SELLE ROYAL "Vivo Athletic Ergo", He |
| Seat post: | CONWAY Patent, 31,6 mm, 300 mm |
| Pedals: | Welgo "C280DU" 1-piece |
Technical data
| Category: | Hardtail |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | Hardtail |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 21-speed |
| Transmission: | 3x 7-fach |
| Circuit brand: | Shimano |
| Shifting model: | TX800 |
| Brake system: | hydraulic disc brake |
| Travel: | 100 mm |
| Features: | suspension fork |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Colour: | green, blue |
| Colour designation: | acid metallic / darkblue metallic |
| Weight: | 14,80 kg |
| EAN | 4251507977418 |
Geometry data
S
M
L
XL
| A - Seat tube: | 406 mm |
| B - Toptube: | 570 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 70 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 448 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 369 mm |
| I - Stack: | 634 mm |
| J - Standover height: | 771 mm |
| K - Wheel distance: | 1.069 mm |
| A - Seat tube: | 457 mm |
| B - Toptube: | 590 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 70 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 448 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 389 mm |
| I - Stack: | 634 mm |
| J - Standover height: | 800 mm |
| K - Wheel distance: | 1.089 mm |
| A - Seat tube: | 508 mm |
| B - Toptube: | 610 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 448 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 409 mm |
| I - Stack: | 634 mm |
| J - Standover height: | 829 mm |
| K - Wheel distance: | 1.104 mm |
| A - Seat tube: | 559 mm |
| B - Toptube: | 630 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 110 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 448 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 423 mm |
| I - Stack: | 652 mm |
| J - Standover height: | 865 mm |
| K - Wheel distance: | 1.124 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 406 mm | 457 mm | 508 mm | 559 mm |
| B - Toptube: | 570 mm | 590 mm | 610 mm | 630 mm |
| C - Steering tube angle: | 70° | 70° | 70° | 70° |
| D - Stem length: | 70 mm | 70 mm | 90 mm | 110 mm |
| E - Seat angle: | 72° | 72° | 72° | 72° |
| F - Kettenstrebe: | 448 mm | 448 mm | 448 mm | 448 mm |
| G - Steering tube: | 120 mm | 120 mm | 120 mm | 140 mm |
| H - Reach: | 369 mm | 389 mm | 409 mm | 423 mm |
| I - Stack: | 634 mm | 634 mm | 634 mm | 652 mm |
| J - Standover height: | 771 mm | 800 mm | 829 mm | 865 mm |
| K - Wheel distance: | 1.069 mm | 1.089 mm | 1.104 mm | 1.124 mm |
