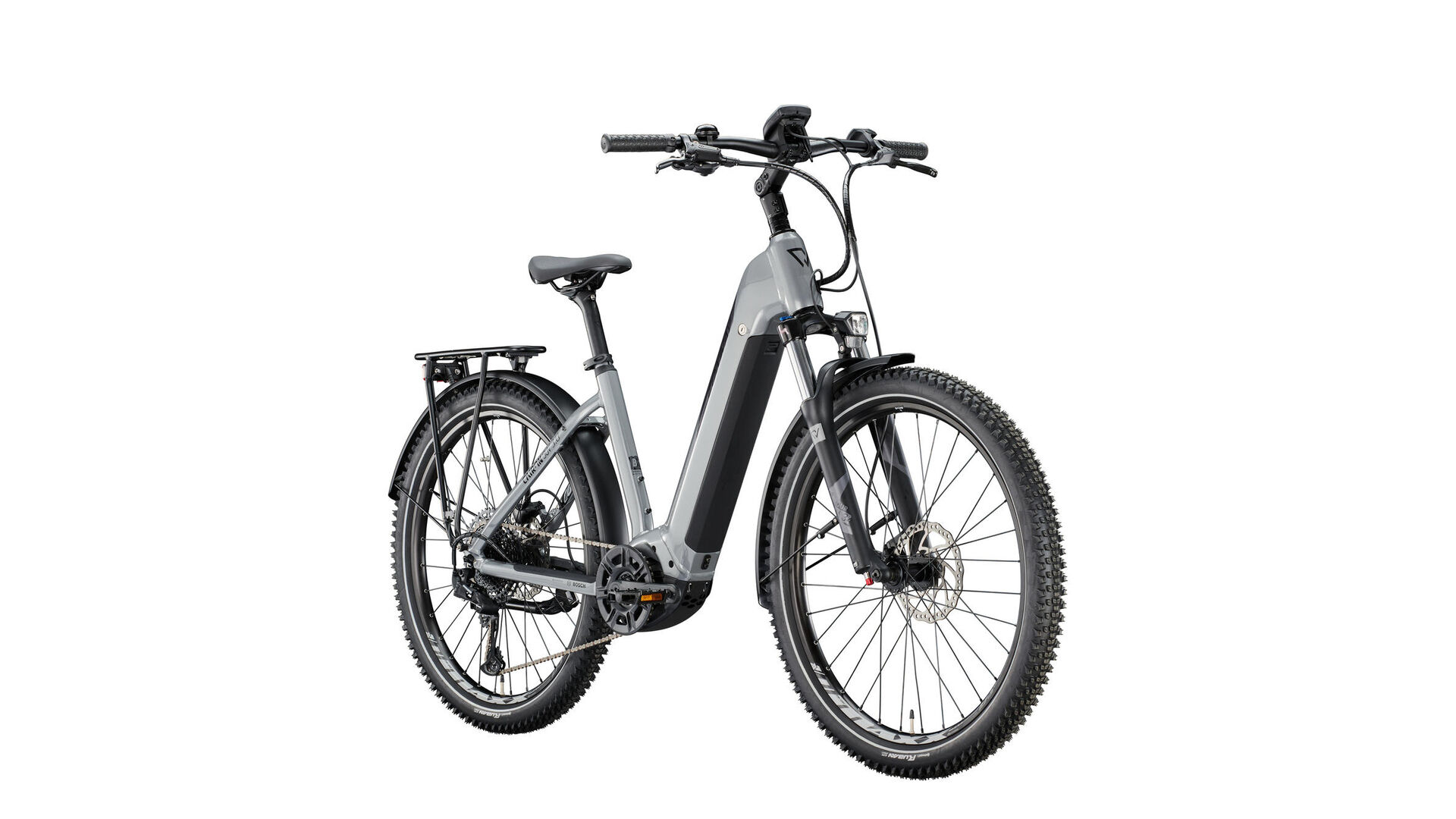

Cairon SUV 3.0 wave

3,599.95€ *
Find frame size
3,599.95€ *

E-BIKES ➜ Material: aluminium ✓ Weight: 27,90 kg ✓ Wheel size: 27,5" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251507979429
  • Product information "Cairon SUV 3.0 wave "
    Versatile and easy to handle - these are the characteristics of the “Cairon SUV" models from CONWAY. Starting with the easy entry through the wave frame as well as its balanced riding: All these features make the "Cairon SUV 3.0" well suited for touring through changing terrain.

    To ensure a clean look and to better protect the battery from dust and dirt, it is fully integrated into the down tube of the E-SUV. It supports your tours with 625 Wh and can be recharged in the evening via a socket, or you can remove it for this purpose. With the four support levels of the powerful BOSCH "Performance CX" motor and the 12 gears of the SRAM "SX" derailleur, the mid-motor can support up to 25 km/h.

    To have the best riding performance and always feel comfortable on- or off the road, the tires are finely profiled. Together with the 100 mm suspension fork, they cushion the surface of dirt and forest roads as well as cobblestones. To keep the E-SUV in check at speed, they allow the braking forces of the large-dimension hydraulic disc brakes to be precisely dosed.

    The bike is suitable for rides through the city, thanks to its mudguards, the solid CONTEC LED lighting system and the luggage rack with spring flap.
    Spezifikationen
    Frame: CONWAY Intube Bosch, Alu
    Dropout: 0281175/0
    Fork: SUNTOUR "XCM34 LOR", 100 mm
    Headset: ZS44 / ZS56
    Crank arm: FSA "CK-745", 170 mm
    Chain ring / belt ring: SRAM "Gen4 Eagle DM non-B", 38 Z., w CG
    Bottom Bracket: BOSCH
    Brakes: TEKTRO "HD-T390"
    Brake lever: TEKTRO "HD-T390"
    Front rotor: TEKTRO "TR180-17 2,3", 180 mm
    Rear rotor: TEKTRO "TR180-17 2,3", 180 mm
    Shifting lever: SRAM "SX Eagle Trigger", single click

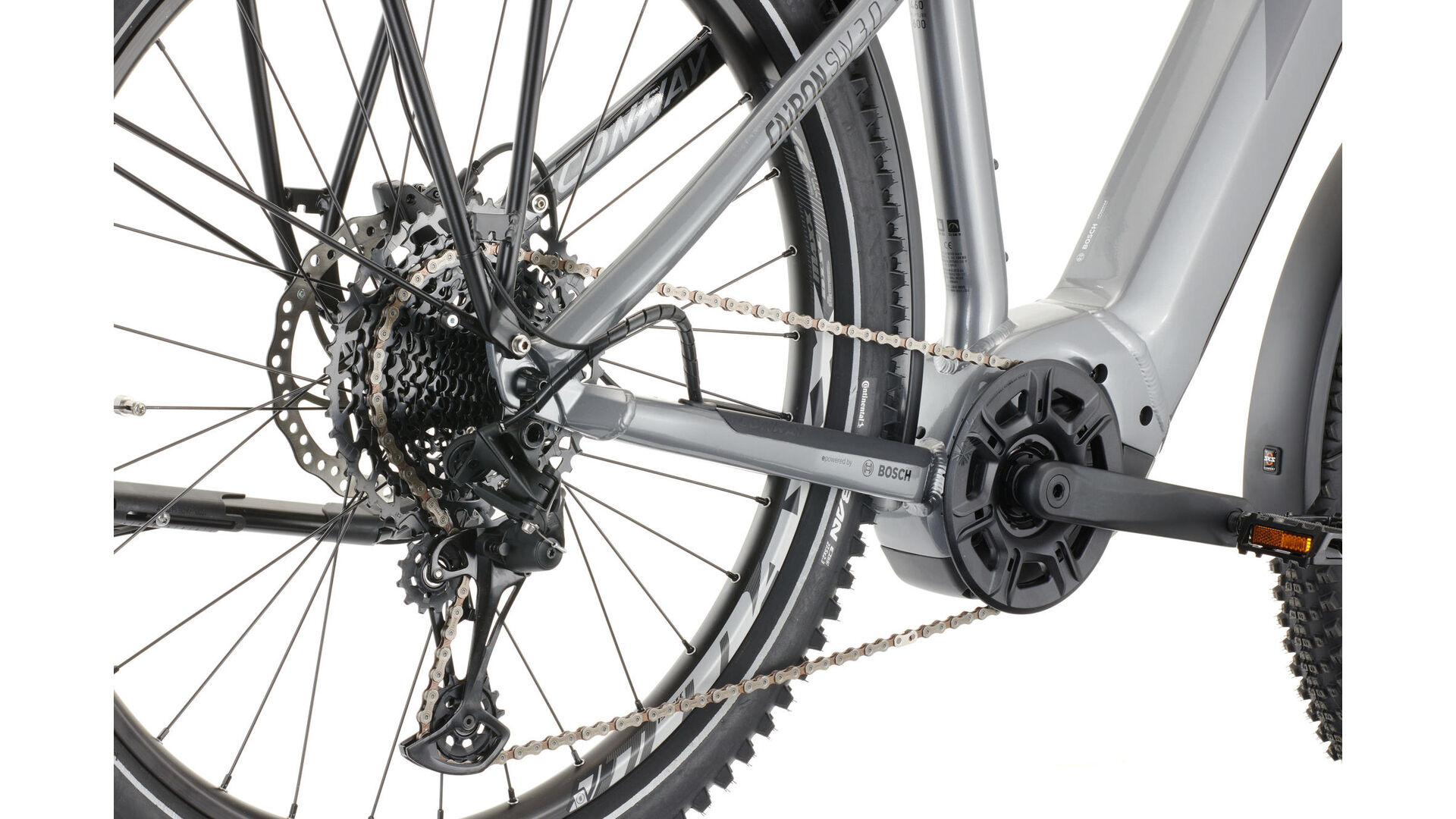

    Rear derailleur: SRAM "SX Eagle", 12speed
    Cassette / belt sprocket: SRAM "PG 1210 Eagle", 11-50 Z.
    Chain / belt: SRAM "SX Eagle"

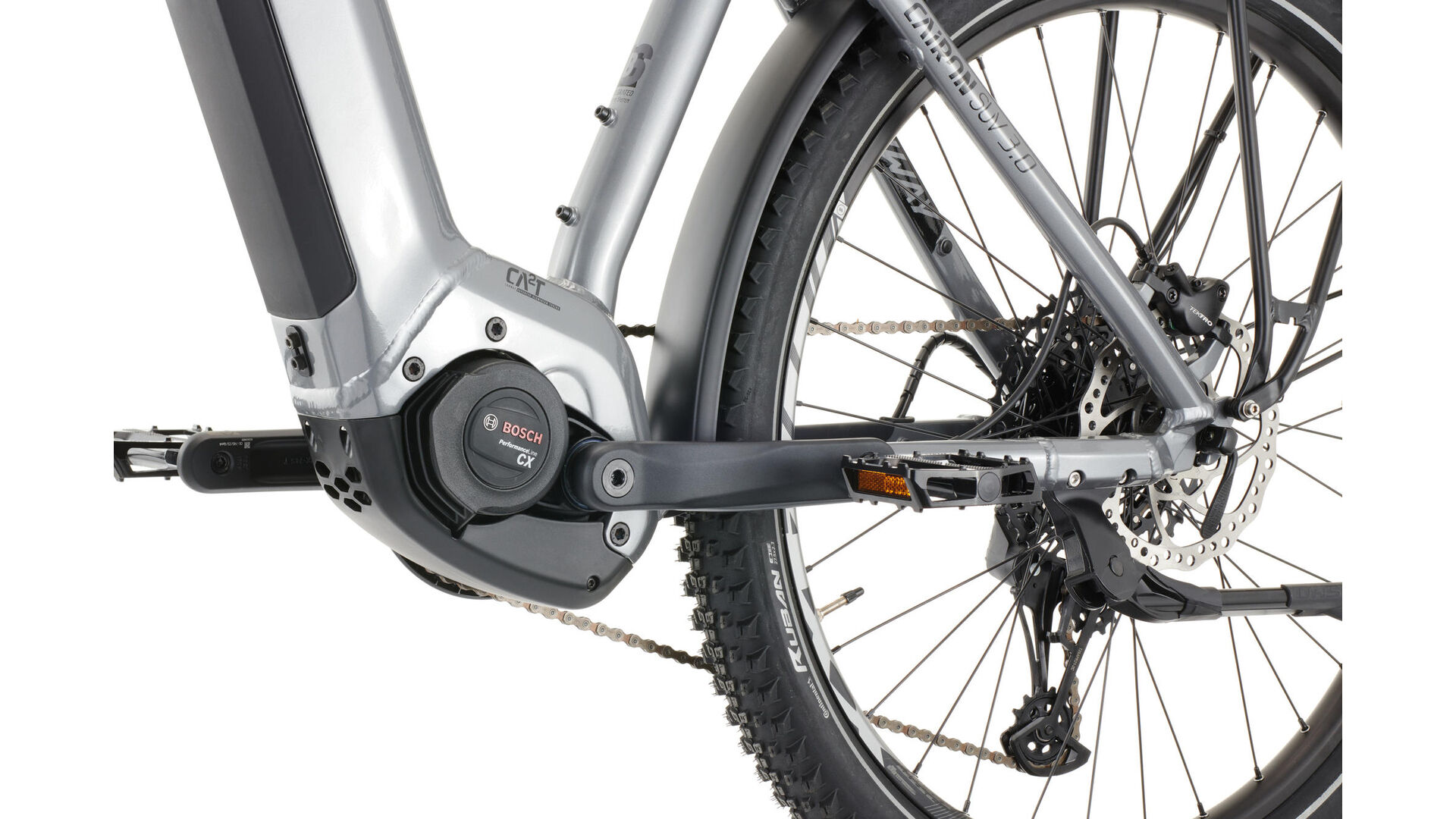

    Drive unit: BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
    Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
    Charger: Bosch 2 Ah

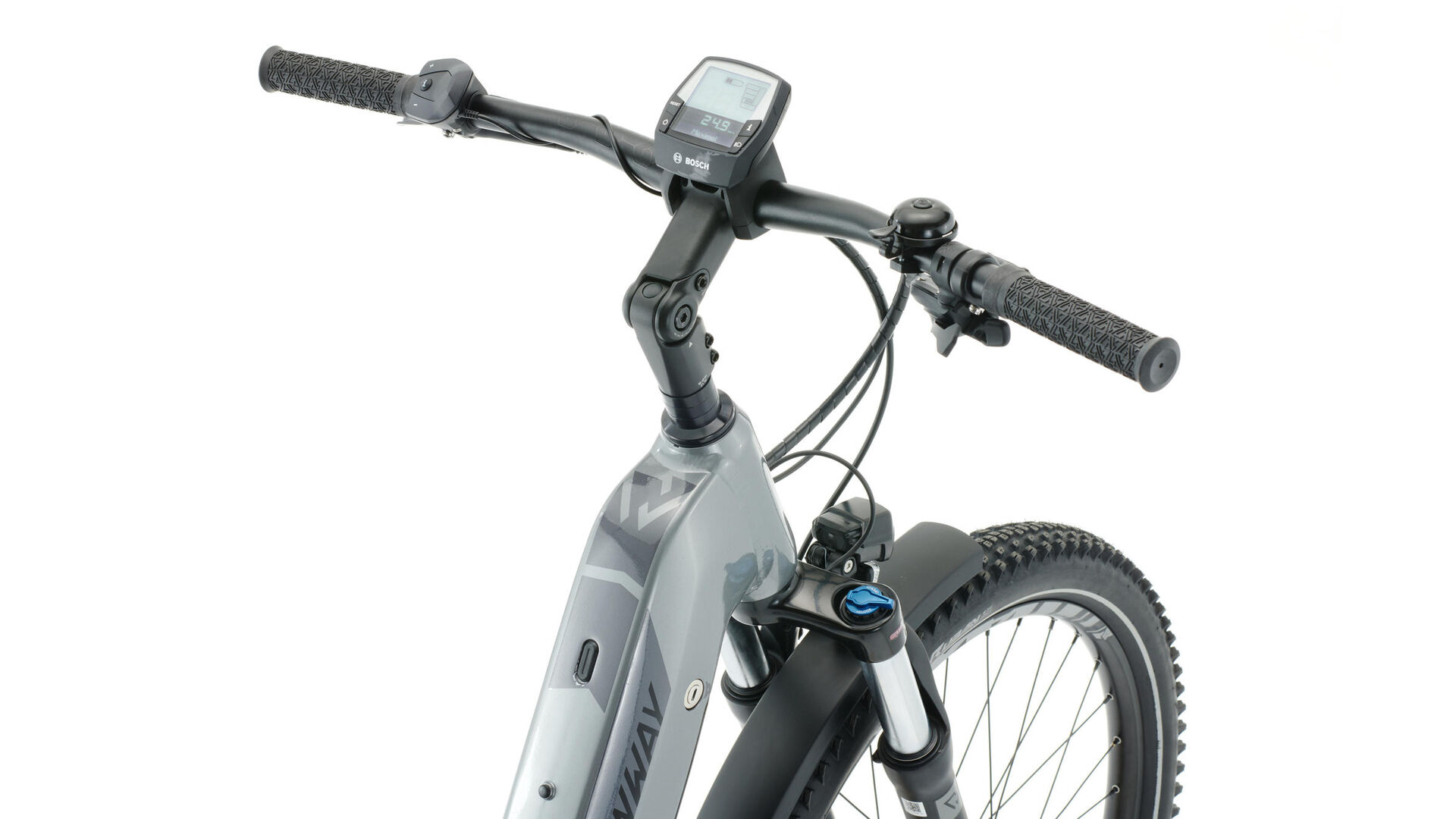

    Display: BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: MACH1 "MAXX"
    Spokes: Niro
    Front hub: KT "6-Bolt", 15x110mm
    Rear hub: SHIMANO "FH-TX506" QR
    Front tires: CONTINENTAL "Ruban", 58-584, Reflex
    Rear tires: CONTINENTAL "Ruban", 58-584, Reflex
    Handle bar: LEVEL 9 "Low Riser", Ø 31,8, 720 mm
    Stem: LEVEL 9 "Adjustable", 90 mm
    Grips: CONWAY "Sport fix"
    Saddle: SELLE ROYAL "Vivo Athletic Ergo", Da
    Seat post: CONWAY Patent, 31,6 mm, 350 mm
    Mud Guards: SKS "A65R", Kunststoff
    Carrier: ATRAN "Cummute Pro", inkl. Federklappe
    Front light: CONTEC "DLUX 50 E+"
    Tail light: CONTEC "CTL 335 E", Stoplight
    Kickstand: URSUS "Wave", 40mm
    Pedals: VP "VPE-506"
    Technical data
    Category: SUV
    E-bike: yes
    Bosch Smart System: no
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 625 Wh
    Support: till 25km/h
    Sex: ladies
    Frame shape: wave
    Frame size: S
    Frame height: 42 cm
    Wheel size: 27,5"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: SX
    Brake system: hydraulic disc brake
    Travel: 100 mm
    Features: fender
    Permissible total weight: 130 kg
    Material: aluminium
    Type: Article
    Colour: grey, grey
    Colour designation: graphitegreymetallic / shadowgrey
    Weight: 27,90 kg
    EAN 4251507979429
    Geometry data
    A - Seat tube: 420 mm
    B - Toptube: 580 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 150 mm
    H - Reach: 388 mm
    I - Stack: 640 mm
    J - Wheel distance: 1.124 mm
    A - Seat tube: 460 mm
    B - Toptube: 600 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 150 mm
    H - Reach: 407 mm
    I - Stack: 640 mm
    J - Wheel distance: 1.144 mm
    A - Seat tube: 500 mm
    B - Toptube: 620 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 170 mm
    H - Reach: 421 mm
    I - Stack: 659 mm
    J - Wheel distance: 1.165 mm
    A - Seat tube: 540 mm
    B - Toptube: 640 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 170 mm
    H - Reach: 441 mm
    I - Stack: 659 mm
    J - Wheel distance: 1.185 mm
    S M L XL
    A - Seat tube: 420 mm 460 mm 500 mm 540 mm
    B - Toptube: 580 mm 600 mm 620 mm 640 mm
    C - Steering tube angle: 68° 68° 68° 68°
    D - Stem length: 90 mm 90 mm 90 mm 90 mm
    E - Seat angle: 73° 73° 73° 73°
    F - Kettenstrebe: 460 mm 460 mm 460 mm 460 mm
    G - Steering tube: 150 mm 150 mm 170 mm 170 mm
    H - Reach: 388 mm 407 mm 421 mm 441 mm
    I - Stack: 640 mm 640 mm 659 mm 659 mm
    J - Wheel distance: 1.124 mm 1.144 mm 1.165 mm 1.185 mm
