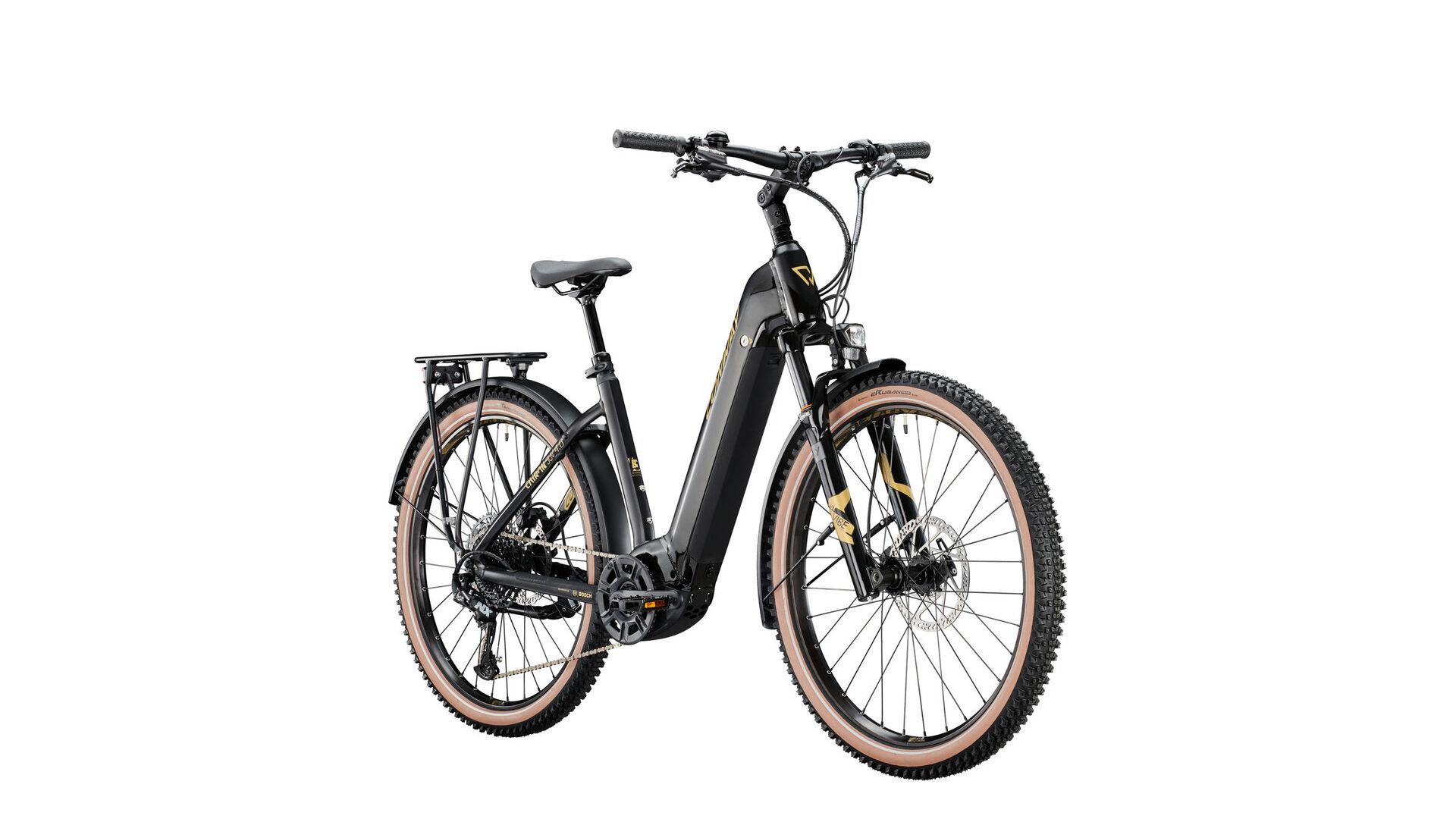

Cairon SUV 4.0 wave

3,899.95€ *
Find frame size
3,899.95€ *

E-BIKES ➜ Material: aluminium ✓ Weight: 27,20 kg ✓ Wheel size: 27,5" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251507979504
  • Product information "Cairon SUV 4.0 wave "
    The "Cairon SUV 4.0" supports you confidently through everyday life, on the way to work and especially when the route turns off onto the next field or forest path or runs directly across country. The E-SUV is equipped with the BOSCH "PowerPack 625", which disappears completely into the frame. With the extra-large capacity, you can stretch out the tour as you please.

    The powerful BOSCH "Performance CX" drive supports you with up to 25 km/h even when it goes steeply uphill. On the other hand, the hydraulic disc brakes from TEKTRO provide the necessary bite when you have to come to a spontaneous stop. They can also be finely dosed on long descents.

    The frame with its sturdy tube shapes passes the drive forces of the engine completely to the rear wheel, and to the 12-speed SRAM "NX Eagle" derailleur. Their ratio of 11-50 teeth together with the drive gives the conditions for trips up to the low mountain range already. With the treaded CONTI "eRuban Plus" tires, the "Cairon SUV 4.0" also cuts a fine figure on forest and dirt roads.

    The "Cairon SUV 4.0" becomes completely suitable for touring and everyday use with the luggage rack for panniers and the bright LED headlight, which illuminates the road so well that long tours can last well into the evening hours.
    Spezifikationen
    Frame: CONWAY Intube Bosch, Alu
    Dropout: 0281175/0
    Fork: RST "Vibe", 90 mm
    Headset: ZS44 / ZS56
    Crank arm: FSA "CK-745", 170 mm
    Chain ring / belt ring: SRAM "Gen4 Eagle DM non-B", 38 Z., w CG
    Bottom Bracket: BOSCH
    Brakes: TEKTRO "HD-M535", 4-Kolben
    Brake lever: TEKTRO "HD-M535"
    Front rotor: TEKTRO "TR203-17 2,3", 203 mm
    Rear rotor: TEKTRO "TR180-17 2,3", 180 mm
    Shifting lever: SRAM "SX Eagle Trigger", single click
    Rear derailleur: SRAM "NX Eagle", 12speed
    Cassette / belt sprocket: SRAM "PG 1230 Eagle", 11-50 Z.
    Chain / belt: SRAM "SX Eagle"
    Drive unit: BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
    Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
    Charger: Bosch 4 Ah
    Display: BOSCH, "Kiox " 4-Stufen, Remote Control, Schiebehilfe
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: RODI "Ready 30"
    Spokes: Niro
    Front hub: FORMULA "DC 511", 15 x 110 mm
    Rear hub: FORMULA "DC 22LW", QR
    Front tires: CONTINENTAL "eRuban Plus", 58-584, Reflex
    Rear tires: CONTINENTAL "eRuban Plus", 58-584, Reflex
    Handle bar: LEVEL 9 "Low Riser", Ø 31,8, 720 mm
    Stem: LEVEL 9 "Adjustable", 90 mm
    Grips: CONWAY "Sport fix"
    Saddle: SELLE ROYAL "Vivo Athletic Ergo", Da
    Seat post: CONTEC "Drop - A - Gogo", 31,6 mm, 100 mm
    Mud Guards: SKS "A65R", Kunststoff
    Carrier: ATRAN "Cummute Pro", inkl. Federklappe
    Front light: CONTEC "DLUX 50 E+"
    Tail light: CONTEC "CTL 335 E", Stoplight
    Kickstand: URSUS "Wave", 40mm
    Pedals: VP "VPE-506"
    Technical data
    Category: SUV
    E-bike: yes
    Bosch Smart System: no
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 625 Wh
    Support: till 25km/h
    Sex: ladies
    Frame shape: wave
    Frame size: S
    Frame height: 42 cm
    Wheel size: 27,5"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: NX
    Brake system: hydraulic disc brake
    Travel: 90 mm
    Features: suspension fork, electronic sliding aid, fender
    Permissible total weight: 130 kg
    Material: aluminium
    Type: Article
    Colour: black, gold
    Colour designation: black metallic / gold matt
    Weight: 27,20 kg
    EAN 4251507979504
    Geometry data
    A - Seat tube: 420 mm
    B - Toptube: 580 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 150 mm
    H - Reach: 388 mm
    I - Stack: 640 mm
    J - Wheel distance: 1.124 mm
    A - Seat tube: 460 mm
    B - Toptube: 600 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 150 mm
    H - Reach: 407 mm
    I - Stack: 640 mm
    J - Wheel distance: 1.144 mm
    A - Seat tube: 500 mm
    B - Toptube: 620 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 170 mm
    H - Reach: 421 mm
    I - Stack: 659 mm
    J - Wheel distance: 1.165 mm
    A - Seat tube: 540 mm
    B - Toptube: 640 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 460 mm
    G - Steering tube: 170 mm
    H - Reach: 441 mm
    I - Stack: 659 mm
    J - Wheel distance: 1.185 mm
    S M L XL
    A - Seat tube: 420 mm 460 mm 500 mm 540 mm
    B - Toptube: 580 mm 600 mm 620 mm 640 mm
    C - Steering tube angle: 68° 68° 68° 68°
    D - Stem length: 90 mm 90 mm 90 mm 90 mm
    E - Seat angle: 73° 73° 73° 73°
    F - Kettenstrebe: 460 mm 460 mm 460 mm 460 mm
    G - Steering tube: 150 mm 150 mm 170 mm 170 mm
    H - Reach: 388 mm 407 mm 421 mm 441 mm
    I - Stack: 640 mm 640 mm 659 mm 659 mm
    J - Wheel distance: 1.124 mm 1.144 mm 1.165 mm 1.185 mm
