Cairon T 5.0 diamond

4,299.95€ *
Find frame size
4,299.95€ *

E-TREKKING & TOUR ➜ Material: aluminium ✓ Weight: 27,80 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251971120907
  • Product information "Cairon T 5.0 diamond "

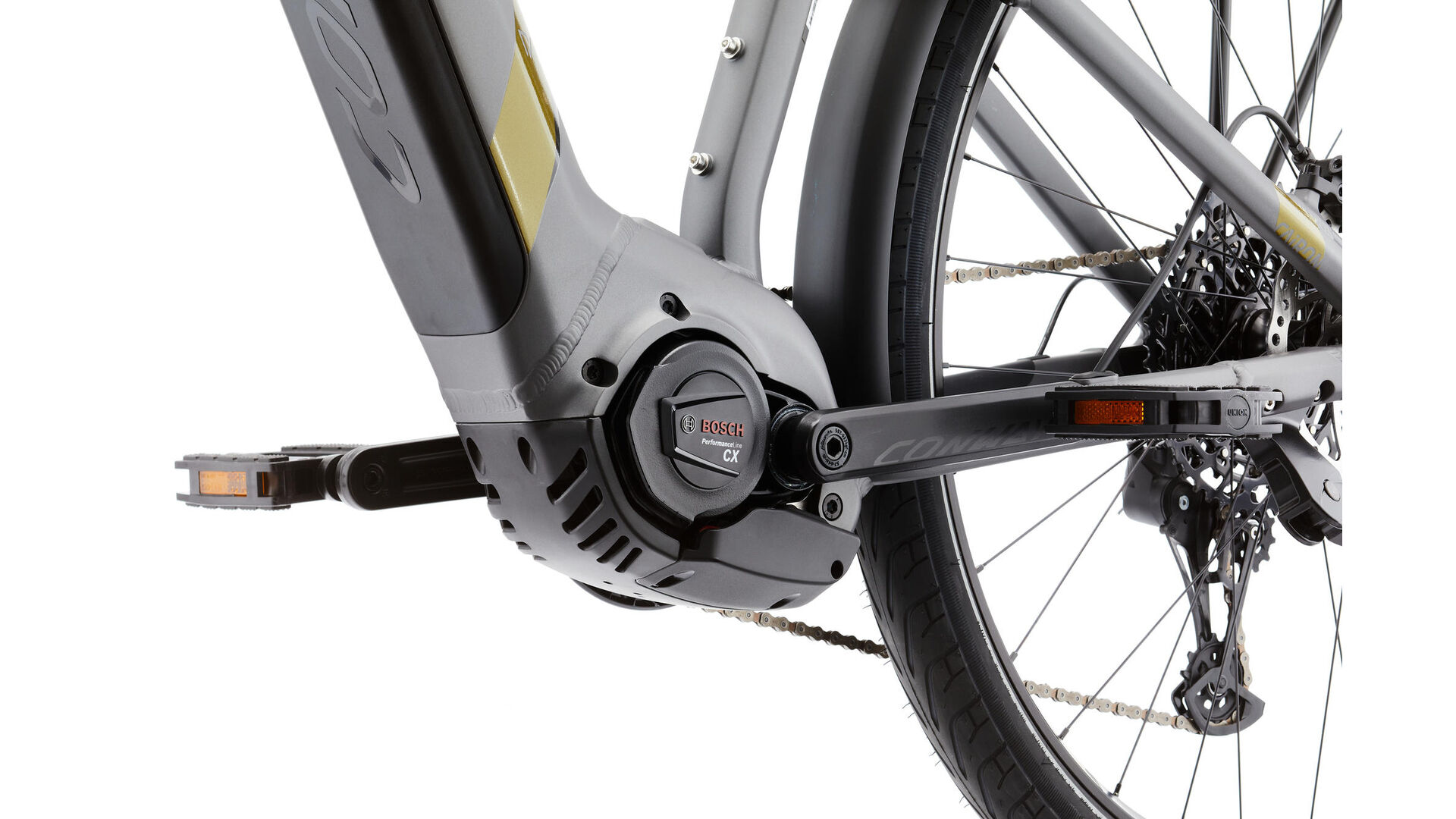

    The "Cairon T 5.0" is a reliable companion on all routes, whether in everyday life or on tours with many kilometers. CONWAY has freshly revised the aluminum frame - the fourth BOSCH motor generation of the "Performance CX" variant is new on the "Cairon T 5.0" and is installed on the bottom bracket for balanced handling.

    Due to the large BOSCH "PowerTube" battery with a whopping 750 Wh and the 11-speed SHIMANO "Deore" derailleur, the tour can be extended well and happily into the evening hours. And the powerful TEKTRO hydraulic disc brakes also allow for long downhills with enough reserves to spontaneously come to a standstill.

    The wide "Contact Urban" tires from CONTINENTAL, the suspension fork with 80 mm of travel and the sturdy luggage rack are further indications of the long-distance orientation. The "Cairon T 5.0" is completely suitable for everyday use with the 80 lux bright CONTEC LED headlight, the frame lock and the mudguards.

    The "PowerTube" battery, which is completely integrated into the down tube, as well as the motor in the bottom bracket, which blends in with the restrained frame design, offer a seamless and clean look of the bike. This rounds off the reliable touring pedelec with a lot of comfort and a balanced riding style.
    Spezifikationen
    Frame: Intube Bosch, Gen.4, BES3, aluminium, diamond, 41cm
    Dropout: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
    Fork: RST suspension fork "Aerial Air TNL", 28", 100mm travel, tapered, post mount, thru axle, black
    Headset: GLORY WHEEL ZS56/28,6 / EC56/40, 1 1/8" - 1,5", 20 mm stack
    Crank arm: MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
    Chain ring / belt ring: SRAM "X-Sync Eagle", 36 teeth, for Bosch Gen.4, direct mount
    Bremse V.R.: TEKTRO disc brake "HD-T390", hydraulic, post mount, 43mm adapter, for 2,3mm rotors
    Bremse H.R.: TEKTRO disc brake "HD-T390", hydraulic, 2 piston, for 2,3mm rotors
    Front rotor: TEKTRO "TR17", Ø 203mm, 6-hole, thickness: 2,3mm
    Rear rotor: TEKTRO "TR17", Ø 180mm, 6-hole, thickness: 2,3mm
    Shifting lever: SRAM "SX Eagle", single click, 12-speed
    Rear derailleur: SRAM "SX Eagle"
    Cassette / belt sprocket: SRAM "PG-1210", 12-speed Eagle, 11-50 teeth
    Chain / belt: SRAM "SX Eagle"
    Drive unit: BOSCH "Performance Line CX" Gen. 4, BES3
    Battery: BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
    Charger: BOSCH 4 A, BES3
    Remote: BOSCH "BRC3300", mini remote
    Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
    Spokes: Niro
    Front hub: FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
    Rear hub: FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
    Front tires: CONTINENTAL "Contact Cruiser", 50-622, reflex
    Rear tires: CONTINENTAL "Contact Cruiser", 50-622, reflex
    Handle bar: LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
    Stem: LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
    Grips: CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
    Saddle: SELLE ROYAL "Vivo Athletic Ergo", gents
    Seat post: CONWAY, Ø 31,6mm, 350mm long, black
    Chain guard: HESLING “Move”
    Mud Guards: CURANA "Apollo 65", aluminium, 65mm, black
    Carrier: ATRAN VELO "Commute Pro", AVS system, F-Fix, black
    Front light: CONTEC "DLUX 80 E+", 80 lux
    Tail light: BUSCH & MÜLLER "ILU Senior", integrated in the fender
    Frame Lock: AXA "Bock XXL"
    Battery Lock: AXA "New Lock", BES3, for PowerTube
    Kickstand: URSUS "R81 - Wave Rear", adjustable, 40mm hole distance, matt black
    Pedals: VP COMPONENTS "VPE-506"
    Technical data
    Category: trekking bike
    E-bike: yes
    Bosch Smart System: yes
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 750 Wh
    Support: till 25km/h
    Sex: gents
    Frame shape: diamond
    Frame size: S
    Frame height: 41 cm
    Wheel size: 28"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: SX
    Brake system: hydraulic disc brake
    Travel: 100 mm
    Features: suspension fork, suspensed seat post, frame lock, chain guard, electronic sliding aid, fender
    Permissible total weight: 130 kg
    Material: aluminium
    Colour: grey, gold
    Colour designation: shadowgrey metallic matt / bronze metallic
    Weight: 27,80 kg
    EAN 4251971120907
    Geometry data
    Logo
    A - Seat tube: 410 mm
    B - Toptube: 585 mm
    C - Steering tube angle: 67°
    D - Stem length: 65 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 455 mm
    G - Steering tube: 120 mm
    H - Reach: 403 mm
    I - Stack: 649 mm
    J - Wheel distance: 1.151 mm
    A - Seat tube: 450 mm
    B - Toptube: 600 mm
    C - Steering tube angle: 67°
    D - Stem length: 65 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 455 mm
    G - Steering tube: 120 mm
    H - Reach: 426 mm
    I - Stack: 649 mm
    J - Wheel distance: 1.174 mm
    A - Seat tube: 490 mm
    B - Toptube: 620 mm
    C - Steering tube angle: 67°
    D - Stem length: 65 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 455 mm
    G - Steering tube: 130 mm
    H - Reach: 445 mm
    I - Stack: 658 mm
    J - Wheel distance: 1.197 mm
    A - Seat tube: 530 mm
    B - Toptube: 640 mm
    C - Steering tube angle: 67°
    D - Stem length: 65 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 455 mm
    G - Steering tube: 130 mm
    H - Reach: 468 mm
    I - Stack: 658 mm
    J - Wheel distance: 1.220 mm
    A - Seat tube: 570 mm
    B - Toptube: 660 mm
    C - Steering tube angle: 67°
    D - Stem length: 65 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 455 mm
    G - Steering tube: 140 mm
    H - Reach: 487 mm
    I - Stack: 667 mm
    J - Wheel distance: 1.243 mm
    Logo
    S M L XL XXL
    A - Seat tube: 410 mm 450 mm 490 mm 530 mm 570 mm
    B - Toptube: 585 mm 600 mm 620 mm 640 mm 660 mm
    C - Steering tube angle: 67° 67° 67° 67° 67°
    D - Stem length: 65 mm 65 mm 65 mm 65 mm 65 mm
    E - Seat angle: 75° 75° 75° 75° 75°
    F - Kettenstrebe: 455 mm 455 mm 455 mm 455 mm 455 mm
    G - Steering tube: 120 mm 120 mm 130 mm 130 mm 140 mm
    H - Reach: 403 mm 426 mm 445 mm 468 mm 487 mm
    I - Stack: 649 mm 649 mm 658 mm 658 mm 667 mm
    J - Wheel distance: 1.151 mm 1.174 mm 1.197 mm 1.220 mm 1.243 mm
