Our Cairon SUV brings you sporty and with a lot of comfort through any terrain. Is available in different frame shapes, everyone finds here the ideal bike for himself.

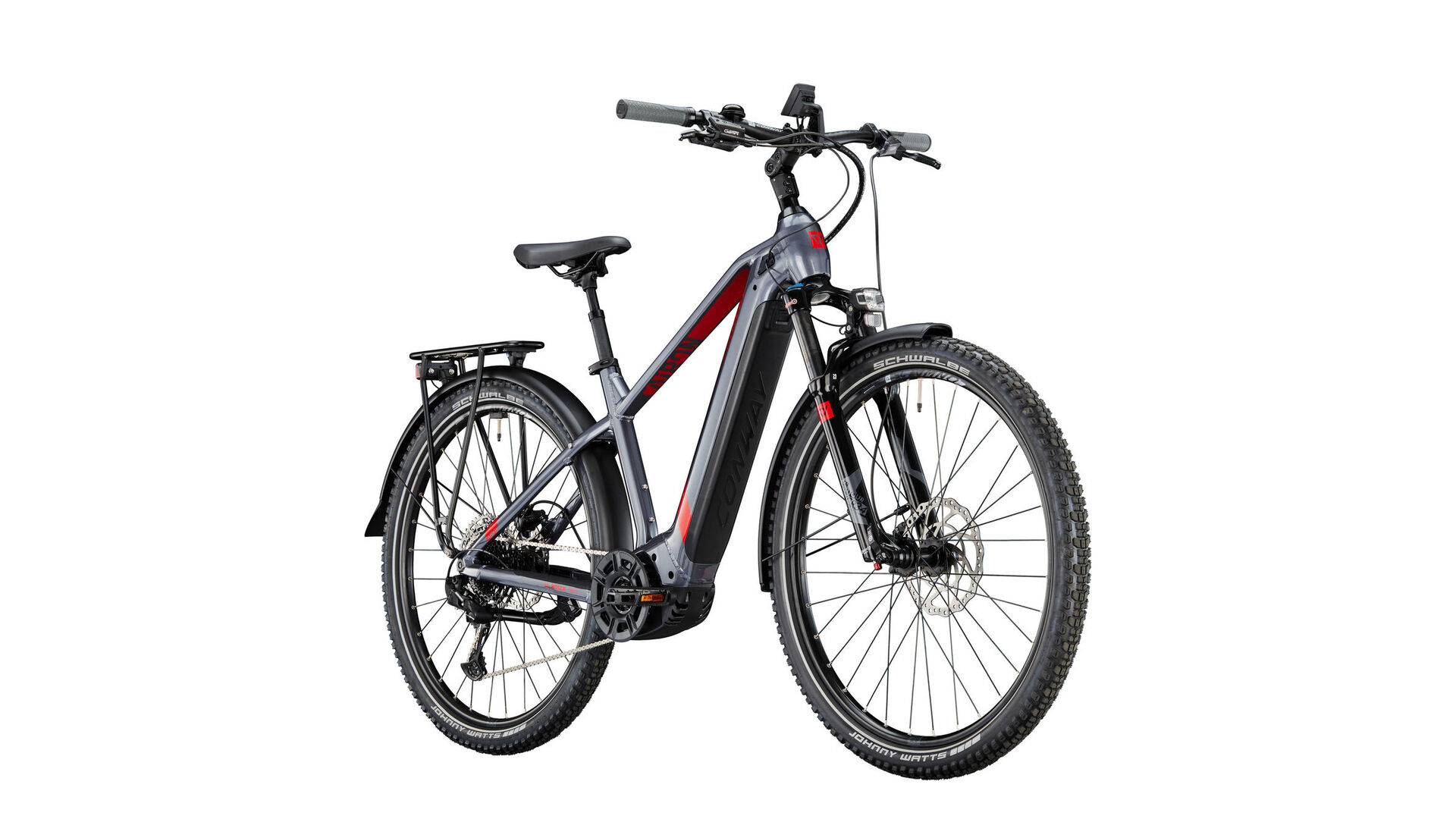

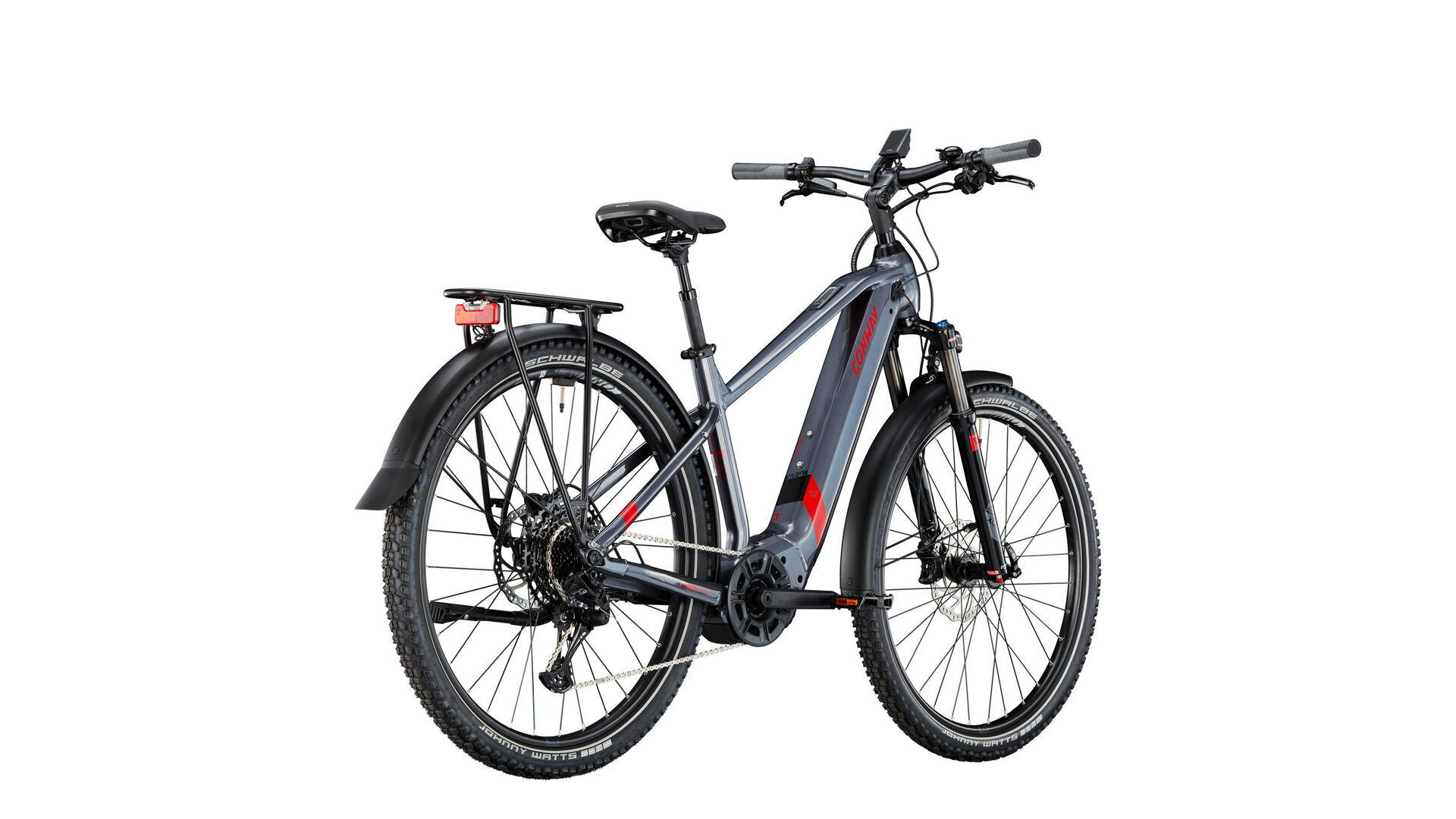

Cairon SUV 5.0 diamond
4,199.95€ *
The SUVs from CONWAY combine off-road capability and best control with exciting riding and comfort. For even more riding fun, the developers have upgraded the "Cairon SUV 5.0" with a more powerful motor as well as the longest range BOSCH "PowerTub...
Product information
"Cairon SUV 5.0 diamond"
The SUVs from CONWAY combine off-road capability and best control with exciting riding and comfort. For even more riding fun, the developers have upgraded the "Cairon SUV 5.0" with a more powerful motor as well as the longest range BOSCH "PowerTube" battery, which is fully integrated into the frame.
The support can be easily divided up to 25 km/h with the four support levels of the powerful BOSCH "Performance CX" motor and the 11 gears of the SHIMANO "Deore" derailleur. The 750 Wh battery can either be removed downwards for charging or you can simply leave it in the frame and charge it via the charging socket on the left side of the frame.
For enjoying best performance and high comfort on unpaved roads, the 58 mm wide CONTI tires are finely profiled and, together with the 120mm suspension fork from SUNTOUR, also cushion the surface of dirt and forest roads such as cobblestones well.
The hydraulic disc brake from TEKTRO (disc diameter front and rear: 180 mm) is there for the necessary safety both in fast downhill rides and in city traffic. The braking power can be finely dosed, but it does not let you down when it comes to it spontaneously. Thanks to mudguards and light system, any tour in any weather with the "Cairon SUV 5.0" can be extended until late in the evening.
The support can be easily divided up to 25 km/h with the four support levels of the powerful BOSCH "Performance CX" motor and the 11 gears of the SHIMANO "Deore" derailleur. The 750 Wh battery can either be removed downwards for charging or you can simply leave it in the frame and charge it via the charging socket on the left side of the frame.
For enjoying best performance and high comfort on unpaved roads, the 58 mm wide CONTI tires are finely profiled and, together with the 120mm suspension fork from SUNTOUR, also cushion the surface of dirt and forest roads such as cobblestones well.
The hydraulic disc brake from TEKTRO (disc diameter front and rear: 180 mm) is there for the necessary safety both in fast downhill rides and in city traffic. The braking power can be finely dosed, but it does not let you down when it comes to it spontaneously. Thanks to mudguards and light system, any tour in any weather with the "Cairon SUV 5.0" can be extended until late in the evening.
Spezifikationen
| Frame: | CONWAY Intube Bosch, Alu |
| Dropout: | 0281180/0 |
| Fork: | SUNTOUR "XCR34 Air LOR", 120 mm |
| Headset: | ZS56 / ZS56, Blocklock |
| Crank arm: | MIRANDA "Classic Gen4", 165 mm |
| Chain ring / belt ring: | SRAM "Gen4 Eagle DM B", 36 Z., w CG |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M530", 4/2-Kolben |
| Brake lever: | TEKTRO "HD-M530" |
| Front rotor: | TEKTRO "TR203-17 2,3"", 203 mm |
| Rear rotor: | TEKTRO "TR180-17 2,3"", 180 mm |
| Shifting lever: | SRAM "SX Eagle Trigger", single click |

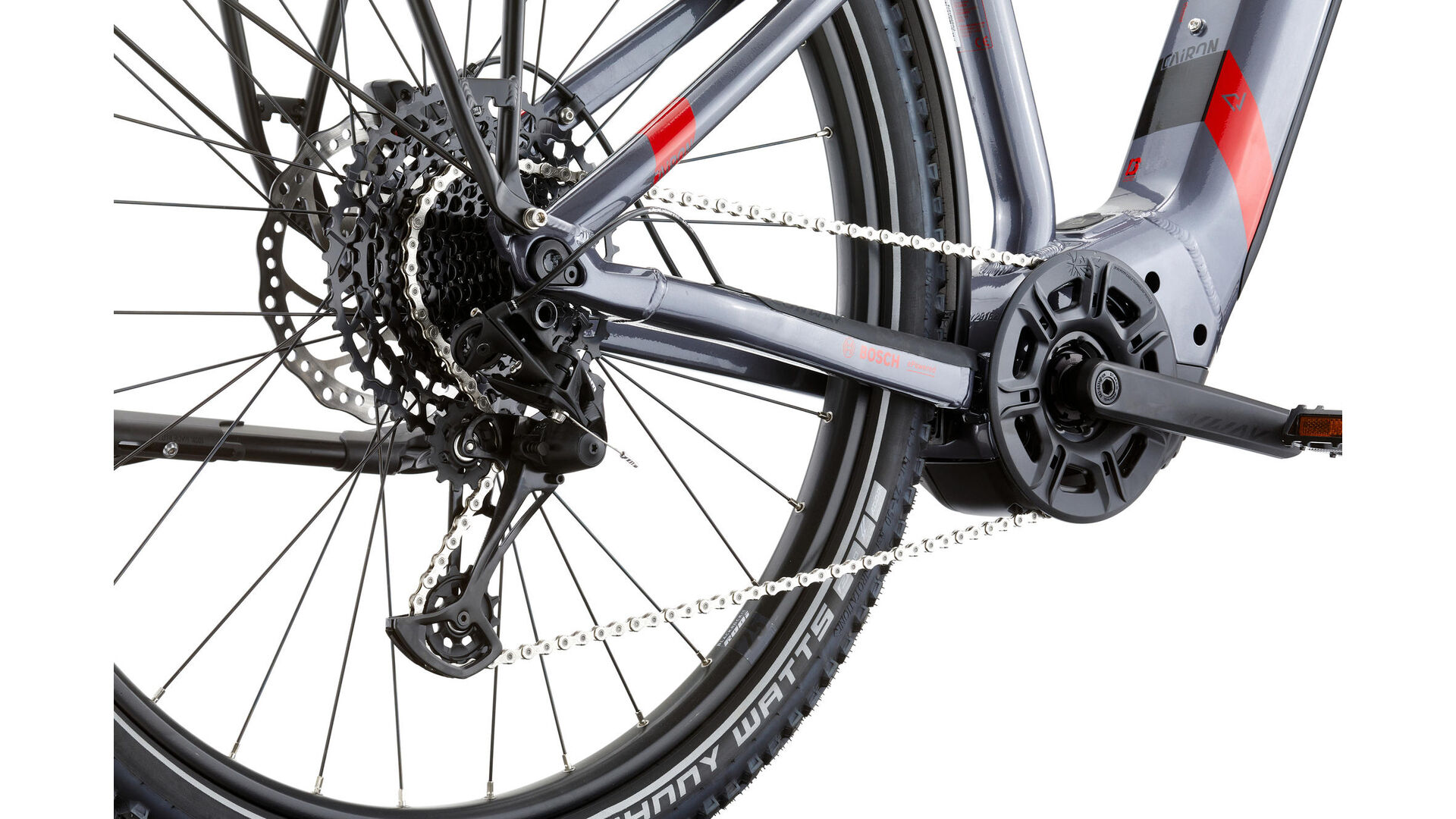

| Rear derailleur: | SRAM "SX Eagle", 12speed |
| Cassette / belt sprocket: | SRAM "PG 1210 Eagle", 11-50 Z. |
| Chain / belt: | SRAM "SX Eagle" |

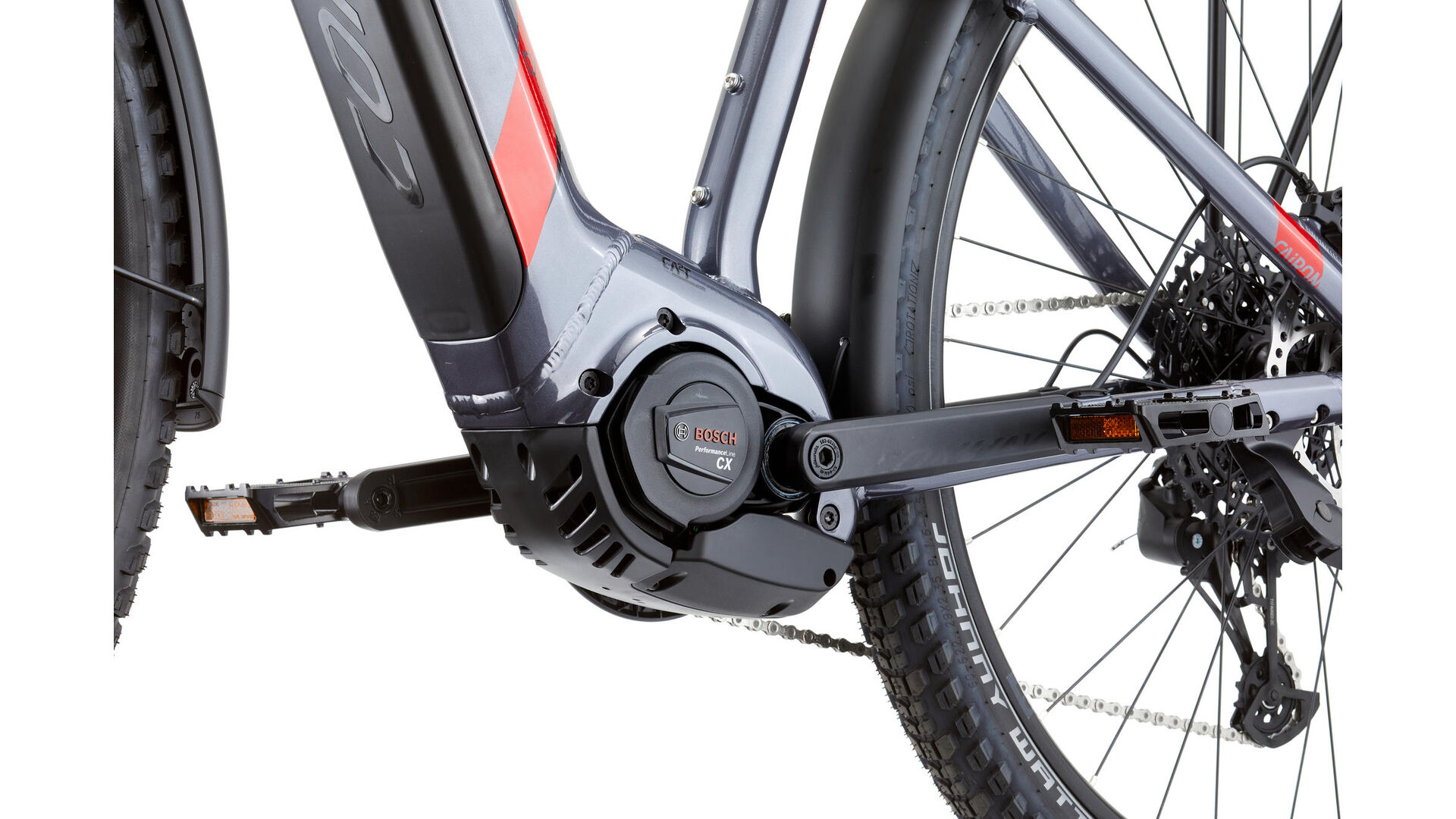

| Drive unit: | BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh |
| Charger: | Bosch 4 Ah |
| Remote: | BOSCH "BRC3300" |
| Display: | BOSCH, "Kiox 300", 4-Stufen, Remote Control, Schiebehilfe |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Ready 30" |
| Spokes: | Niro |
| Front hub: | FORMULA "DC 511", 15 x 110 mm |
| Rear hub: | FORMULA "eHL-148 S", 12 x 148 mm |
| Front tires: | SCHWALBE "Johnny Watts", 60-622, Reflex |
| Rear tires: | SCHWALBE "Johnny Watts", 60-622, Reflex |
| Handle bar: | CONWAY "Riser", Ø 31,8, 720 mm |
| Stem: | LEVEL 9 "Adjustable", 65 mm |
| Grips: | CONTEC "MERGE Mountain Straight" |
| Saddle: | SELLE ROYAL "Vivo Athletic Ergo", He |
| Seat post: | CONWAY Patent, 31,6 mm, 350 mm |
| Mud Guards: | CURANA "Apollo 75" |
| Carrier: | ATRAN "Cummute Pro", inkl. Federklappe |
| Front light: | CONTEC "DLUX 80 E+" |
| Tail light: | CONTEC "CTL 335 E", Stoplight |
| Kickstand: | URSUS "Wave", 40mm |
| Pedals: | VP "VPE-506" |
Technical data
| Category: | SUV |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | Bosch |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | SRAM |
| Shifting model: | SX |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Features: | suspension fork, electronic sliding aid, fender |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Colour: | grey, red |
| Colour designation: | shadowgrey metallic / red metallic |
| Weight: | 28,50 kg |
| EAN | 4251971117648 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 410 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Chainstay: | 455 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 403 mm |
| I - Stack: | 649 mm |
| J - Wheel distance: | 1.151 mm |
| A - Seat tube: | 450 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Chainstay: | 455 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 426 mm |
| I - Stack: | 649 mm |
| J - Wheel distance: | 1.174 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Chainstay: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 445 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Chainstay: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 468 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.220 mm |
| A - Seat tube: | 570 mm |
| B - Toptube: | 660 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Chainstay: | 455 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 487 mm |
| I - Stack: | 667 mm |
| J - Wheel distance: | 1.243 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| B - Toptube: | 585 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| C - Steering tube angle: | 67° | 67° | 67° | 67° | 67° |
| D - Stem length: | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| E - Seat angle: | 75° | 75° | 75° | 75° | 75° |
| F - Chainstay: | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| G - Steering tube: | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| H - Reach: | 403 mm | 426 mm | 445 mm | 468 mm | 487 mm |
| I - Stack: | 649 mm | 649 mm | 658 mm | 658 mm | 667 mm |
| J - Wheel distance: | 1.151 mm | 1.174 mm | 1.197 mm | 1.220 mm | 1.243 mm |
