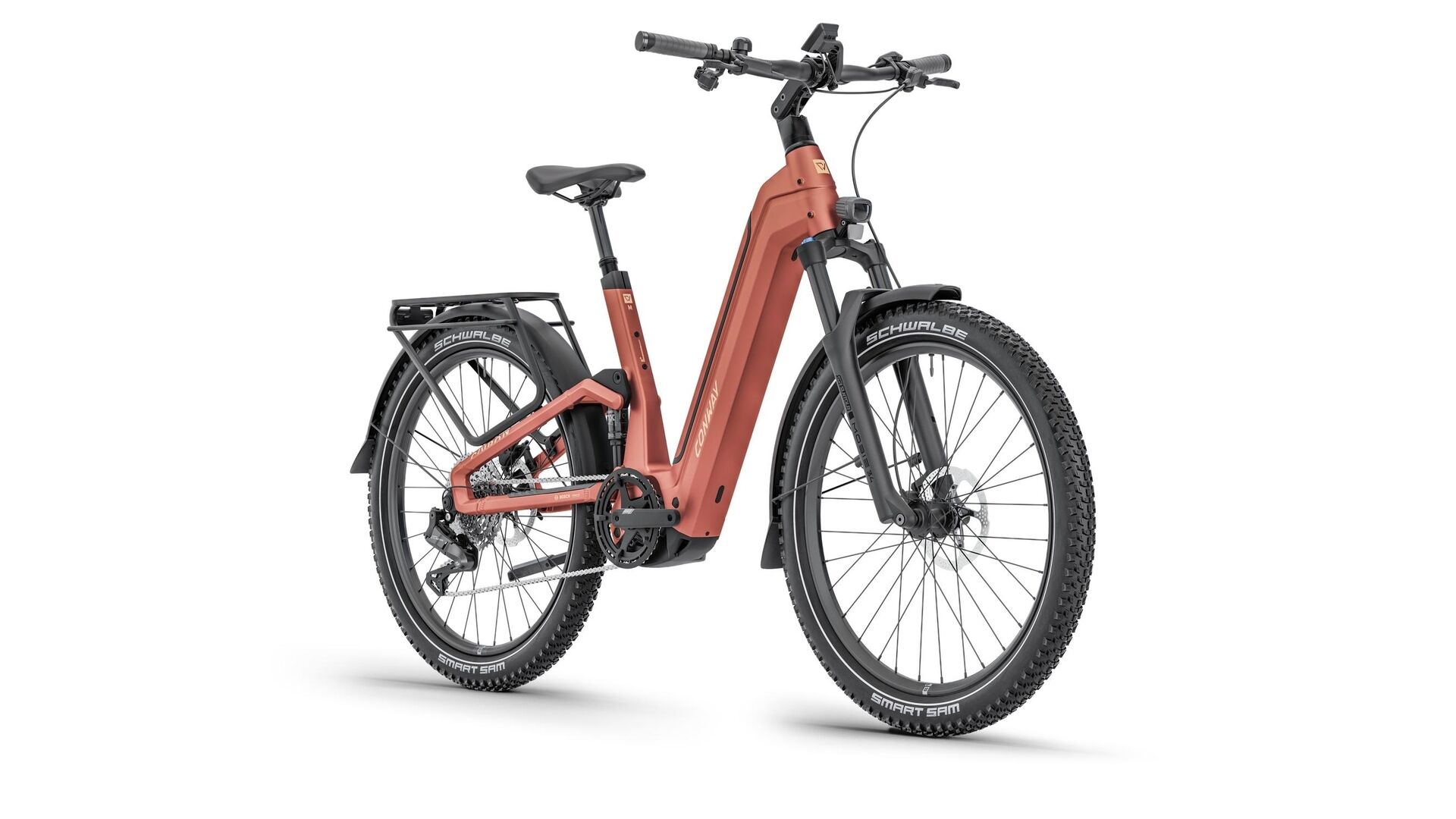

Cairon SUV FS 6.0 Auto wave
5,299.95€ *
E-SUV ➜ Material: aluminium ✓ Colour: red ✓ Weight: 29,80 kg ✓ Wheel size: 27" ✓ Brake system: hydraulic disc brake ✓ Gears: 11-speed ✓ ➤ Discover now
Product information
"Cairon SUV FS 6.0 Auto wave "
Whether city traffic, forest paths or weekend excursions - the "Cairon SUV FS 6.0 Auto" adapts flexibly to your life. With an aluminum frame, 27" wheels and 120 mm front and rear suspension travel, you can enjoy comfort and stability on any surface.
Practical: The HTM 2.0 front carrier mount offers clever transport solutions, the bike is child seat and trailer approved and ready for the range extender to extend your tours. Thanks to the BCM module readiness, you are also well equipped digitally.
The Bosch mid-engine with Smart System, an 800 Wh Battery (easily removable from the top) and the Shimano 11-speed derailleur gear system are a first-class addition.
derailleur gears - for reliable support and smooth gear changes, no matter where you ride. When things get steeper, the eMTB+ mode provides an extra boost.
Thanks to the intelligent Autoshift function, the Bosch engine and rear derailleurs automatically select the optimum gear when stopping - for a smooth, powerful starter, just like an automatic in a car.
Practical: The HTM 2.0 front carrier mount offers clever transport solutions, the bike is child seat and trailer approved and ready for the range extender to extend your tours. Thanks to the BCM module readiness, you are also well equipped digitally.
The Bosch mid-engine with Smart System, an 800 Wh Battery (easily removable from the top) and the Shimano 11-speed derailleur gear system are a first-class addition.
derailleur gears - for reliable support and smooth gear changes, no matter where you ride. When things get steeper, the eMTB+ mode provides an extra boost.
Thanks to the intelligent Autoshift function, the Bosch engine and rear derailleurs automatically select the optimum gear when stopping - for a smooth, powerful starter, just like an automatic in a car.
Spezifikationen
| Frame: | CONWAY Intube WaveFully Bosch, Alu |
| Dropout: | 0347028/3 |
| Fork: | SUNTOUR "Mobie34 Air NLO", Boost, 120 mm |
| Headset: | ACROS "ZS56-ZS56", Blocklock |
| Rear shock: | FOX "Float Rhythm", 2 Pos. |
| Crank arm: | MIRANDA "Virage", Q12, 165mm |
| Chain ring / belt ring: | MIRANDA "36T w Guard" |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M535", 4/4-Kolben |
| Brake lever: | TEKTRO "HD-M535" |
| Front rotor: | TEKTRO "TR203-45, 203 mm |
| Rear rotor: | TEKTRO "TR180-45 2,3", 180 mm |
| Shifting lever: | SHIMANO "SW-EN605" |
| Rear derailleur: | SHIMANO "Cues RD-U8050 Di2", 11-speed |
| Cassette / belt sprocket: | SHIMANO "CS-LG400-11", 11-50 Z. |
| Chain / belt: | SHIMANO "CN-LG500" |
| Drive unit: | BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot |
| Charger: | Bosch 4 A, BES3 |
| Remote: | BOSCH "LED Remote" |
| Display: | BOSCH "Kiox 300" |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | CONWAY "TRYP 30" |
| Spokes: | Niro |
| Front hub: | SHIMANO "HB-TC500", 15 x 110 mm |
| Rear hub: | SHIMANO "FH-TC500", 12 x 148mm |
| Front tires: | SCHWALBE "Smart Sam", 60-584 |
| Rear tires: | SCHWALBE "Smart Sam", 60-584 |
| Handle bar: | SATORI "Noir", 15° backsweep, 660 mm |
| Stem: | SATORI "Python ICR adjustable", 65mm |
| Grips: | CONTEC "Tour Wing" |
| Saddle: | SELLE ROYAL "Vivo Moderat Ergo" |
| Seat post: | LIMOTEC "D1", 31,6 mm, 75 mm |
| Mud Guards: | CURANA "Apollo 75" |
| Carrier: | MASSLOAD "MIK HD", inkl. Federklappe |
| Front light: | HERRMANS "MR9" |
| Tail light: | AXA "Juno E-Bike", Brake Light |
| Kickstand: | URSUS "MOOI Plus", 40 mm |
| Pedals: | VP "VPE-547P" |
Technical data
| Category: | SUV |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 800 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | wave |
| Frame size: | S |
| Frame height: | 42 cm |
| Wheel size: | 27" |
| Shifting type: | derailleur |
| Gears: | 11-speed |
| Transmission: | 1x 11-fach |
| Circuit brand: | Shimano |
| Shifting model: | Cues |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Frame travel: | 120 mm |
| Features: | suspension fork, damper, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | red |
| Colour designation: | rustred matt |
| Weight: | 29,80 kg |
| EAN | 4251971175891 |
Geometry data
S
M
L
XL
| A - Seat tube: | 420 mm |
| B - Toptube: | 580 mm |
| C - Steering tube angle: | 68° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 499 mm |
| G - Steering tube: | 155 mm |
| H - Reach: | 410 mm |
| I - Stack: | 638 mm |
| J - Wheel distance: | 1.207 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 68° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 499 mm |
| G - Steering tube: | 160 mm |
| H - Reach: | 428 mm |
| I - Stack: | 643 mm |
| J - Wheel distance: | 1.227 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 68° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 499 mm |
| G - Steering tube: | 170 mm |
| H - Reach: | 445 mm |
| I - Stack: | 652 mm |
| J - Wheel distance: | 1.248 mm |
| A - Seat tube: | 540 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 68° |
| D - Stem length: | 110 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 499 mm |
| G - Steering tube: | 180 mm |
| H - Reach: | 461 mm |
| I - Stack: | 661 mm |
| J - Wheel distance: | 1.268 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 420 mm | 460 mm | 500 mm | 540 mm |
| B - Toptube: | 580 mm | 600 mm | 620 mm | 640 mm |
| C - Steering tube angle: | 68° | 68° | 68° | 68° |
| D - Stem length: | 65 mm | 90 mm | 90 mm | 110 mm |
| E - Seat angle: | 75° | 75° | 75° | 75° |
| F - Kettenstrebe: | 499 mm | 499 mm | 499 mm | 499 mm |
| G - Steering tube: | 155 mm | 160 mm | 170 mm | 180 mm |
| H - Reach: | 410 mm | 428 mm | 445 mm | 461 mm |
| I - Stack: | 638 mm | 643 mm | 652 mm | 661 mm |
| J - Wheel distance: | 1.207 mm | 1.227 mm | 1.248 mm | 1.268 mm |
