Cairon C 2.0 625 diamond
3,499.95€ *
E-SUV ➜ Material: aluminium ✓ Weight: 26,50 kg ✓ Brake system: hydraulic disc brake ✓ Gears: 9-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information
"Cairon C 2.0 625 diamond "
Whether you're touring overland through the countryside or cross-country - the "Cairon C 2.0 625" E-SUV is your companion. Our developers gave the sporty trekking bike a fresh digital update. With the Bosch Smart System, the new "Cairon C 2.0 625" is fully connected and all drive components can communicate with each other. The "Performance CX" of the 4th generation provides a welcome tailwind.

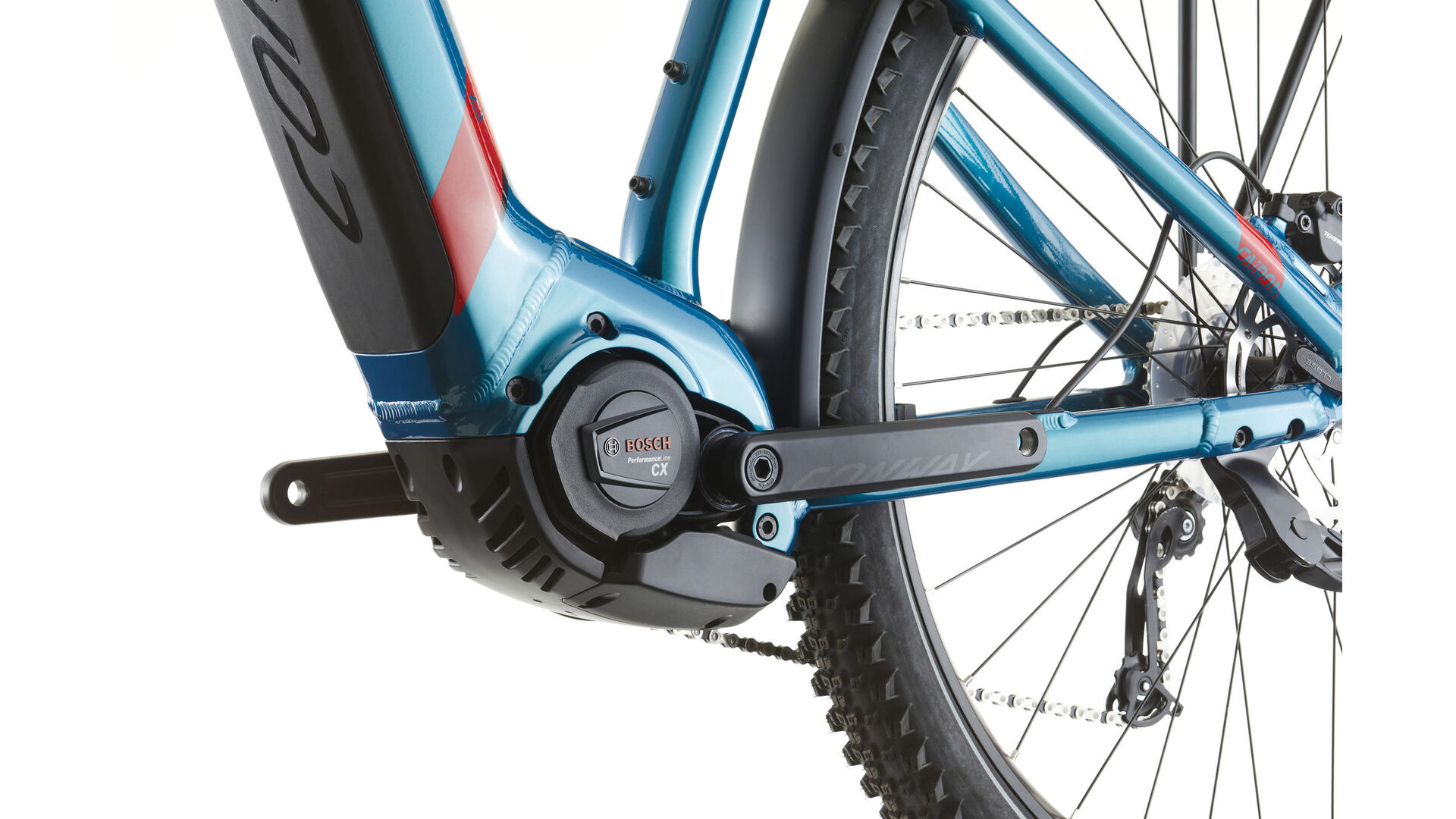

The Bosch "PowerTube" battery is fully integrated in the down tube and supplies the sporty "Performance CX" mid-motor with plenty of energy with a capacity of 625 Wh. When it comes to hilly terrain, the Tektro derailleur offers a solid range of gears. The hydraulic disc brake reacts reliably when riding downhill at high speed. It can be finely dosed, but can also grip firmly.
"Smart Sam" by SCHWALBE has all-round qualities, which it can demonstrate in varying terrain. With a width of 57 mm, it provides additional damping on bumpy roads, while the 120 mm suspension fork once again significantly increases ride comfort.
The e-bike only becomes roadworthy with the right all-round equipment. This includes the Contec LED lighting system, which illuminates the way home with a solid 50 lux at the front. Mudguards and a luggage rack make the "Cairon C 2.0 625" fit for short errands through the city or for its use as a commuter.
The Bosch "PowerTube" battery is fully integrated in the down tube and supplies the sporty "Performance CX" mid-motor with plenty of energy with a capacity of 625 Wh. When it comes to hilly terrain, the Tektro derailleur offers a solid range of gears. The hydraulic disc brake reacts reliably when riding downhill at high speed. It can be finely dosed, but can also grip firmly.
"Smart Sam" by SCHWALBE has all-round qualities, which it can demonstrate in varying terrain. With a width of 57 mm, it provides additional damping on bumpy roads, while the 120 mm suspension fork once again significantly increases ride comfort.
The e-bike only becomes roadworthy with the right all-round equipment. This includes the Contec LED lighting system, which illuminates the way home with a solid 50 lux at the front. Mudguards and a luggage rack make the "Cairon C 2.0 625" fit for short errands through the city or for its use as a commuter.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, aluminum, diamond, 41 cm |
| Dropout: | CONWAY "V2" for Cairon QR |
| Fork: | RST "Blaze ML", 120 mm travel, tapered |
| Headset: | ACROS ZS56/28.6 / ZS56/40, 120° blocklock |
| Crank arm: | MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black |
| Chain ring / belt ring: | MIRANDA, 36 teeth |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M280" |
| Bremse V.R.: | TEKTRO "HD-M280", Post Mount |
| Bremse H.R.: | TEKTRO Disc Brake "HD-T280", hydraulic, 2 pistons, for 1.8 mm brake rotors |
| Brake lever: | TEKTRO "HD-M280" |
| Front rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Rear rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Shifting lever: | TEKTRO "SL-M350R" |
| Rear derailleur: | TEKTRO "RD-M350" |
| Cassette / belt sprocket: | TEKTRO "CS-M350-9", 11-46 teeth |
| Chain / belt: | SHIMANO "CN-HG53" |
| Drive unit: | BOSCH "Performance Line CX", max. 85 Nm |
| Battery: | BOSCH "PowerTube 625", 625 Wh, BES3, horizontal |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| Display: | BOSCH "Intuvia 100", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | MACH1 "MAXX", 32 hole, eyeleted |
| Spokes: | Niro |
| Front hub: | SHIMANO "Tourney TX HB-TX505", Center Lock, QR |
| Rear hub: | SHIMANO "Tourney TX FH-TX505", Center Lock, QR |
| Front tires: | CONTINENTAL "Ruban", 58-584, reflex |
| Rear tires: | CONTINENTAL "Ruban", 58-584, reflex |
| Handle bar: | LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black |
| Stem: | LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black |
| Grips: | CONTEC "MERGE Mountain Straight", 140 mm, G-Link, black / gray |
| Saddle: | SELLE ROYAL "Vivo", men's, Athletic, black |
| Seat post: | CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset, black |
| Mud Guards: | SKS "A 65 R", plastic, 65 mm, black |
| Carrier: | ATRANVELO "Commute Pro", AVS system, F-Fix, black |
| Front light: | CONTEC "DLUX 50 E+", 50 lux |
| Tail light: | CONTEC "TL-335 E", 50 mm screw spacing |
| Battery Lock: | AXA "New Lock", for PowerTube, BES3 |
| Kickstand: | URSUS "R81 - Wave Rear", adjustable, 40 mm hole spacing, black matt |
| Pedals: | VP COMPONENTS "VPE-506" |
Technical data
| Category: | SUV |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 27,5" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 9-speed |
| Transmission: | 1x 9-fach |
| Circuit brand: | Tektro |
| Shifting model: | M350 |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Features: | suspension fork, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | red |
| Colour designation: | darkpetrol metallic / red |
| Weight: | 26,50 kg |
| EAN | 4251971103917 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 410 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 401 mm |
| I - Stack: | 619 mm |
| J - Wheel distance: | 1.135 mm |
| A - Seat tube: | 450 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 426 mm |
| I - Stack: | 649 mm |
| J - Wheel distance: | 1.174 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 445 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 468 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.220 mm |
| A - Seat tube: | 570 mm |
| B - Toptube: | 660 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 487 mm |
| I - Stack: | 667 mm |
| J - Wheel distance: | 1.243 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| B - Toptube: | 575 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| C - Steering tube angle: | 67° | 67° | 67° | 67° | 67° |
| D - Stem length: | 65 mm | 90 mm | 90 mm | 90 mm | 90 mm |
| E - Seat angle: | 75° | 75° | 75° | 75° | 75° |
| F - Kettenstrebe: | 440 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| G - Steering tube: | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| H - Reach: | 401 mm | 426 mm | 445 mm | 468 mm | 487 mm |
| I - Stack: | 619 mm | 649 mm | 658 mm | 658 mm | 667 mm |
| J - Wheel distance: | 1.135 mm | 1.174 mm | 1.197 mm | 1.220 mm | 1.243 mm |
