Xyron S 9.9 MX Carbon full suspension

9,999.95€ *
Find frame size
9,999.95€ *

Perfected to the smallest detail: "Xyron S 9.9 MX Carbon" is our top model of the E-All-Mountain series. Full riding fun and full connectivity are guaranteed with the smart and sensible system integration. Thanks to the Mullet concept, the bike wi...

  • 4251971119611
  • Product information "Xyron S 9.9 MX Carbon full suspension "

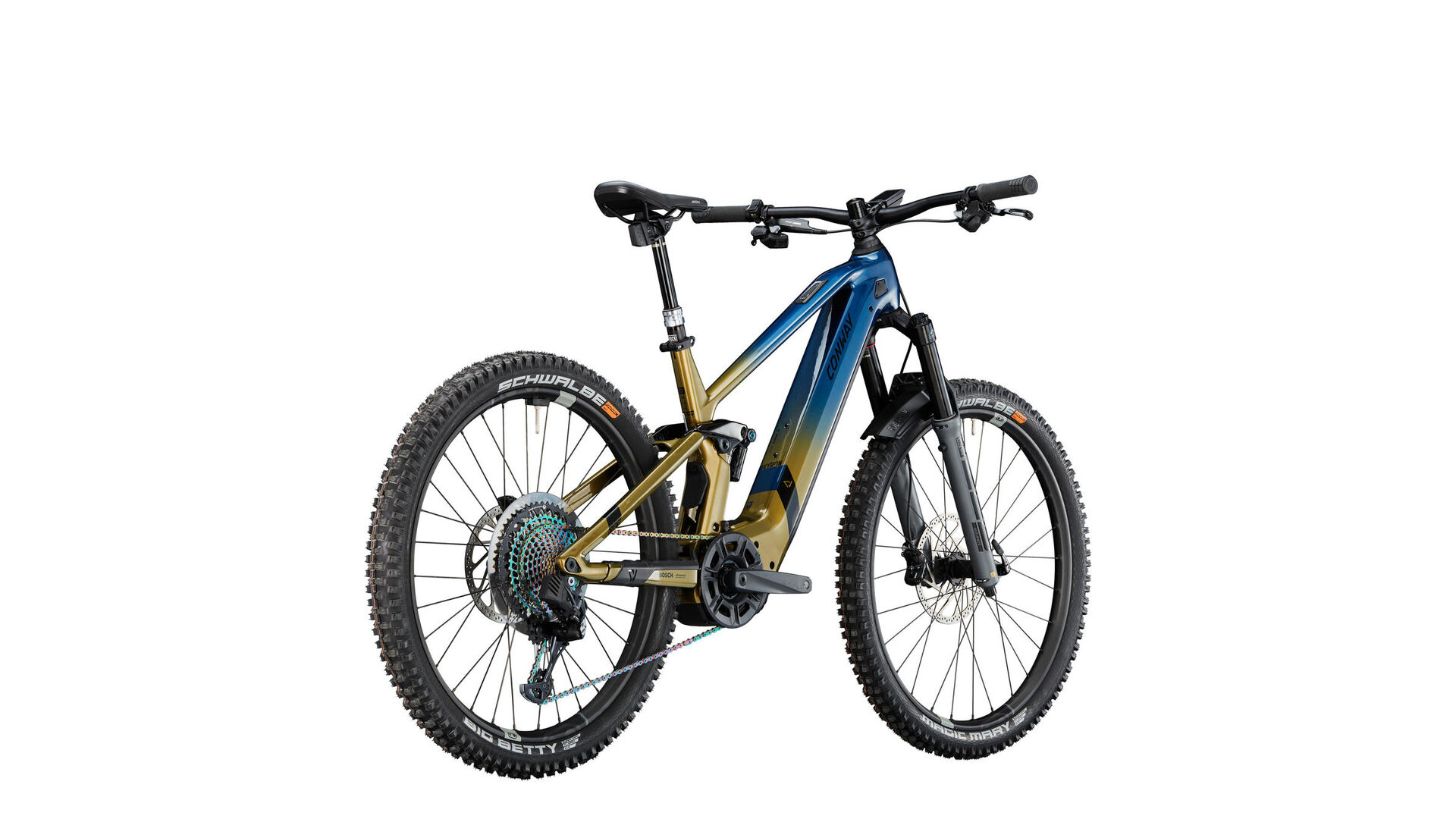

    Perfected to the smallest detail: "Xyron S 9.9 MX Carbon" is our top model of the E-All-Mountain series. Full riding fun and full connectivity are guaranteed with the smart and sensible system integration. Thanks to the Mullet concept, the bike with the carbon frame is much more agile than pure 29er. Due to the smaller wheel at the rear, you have a better transmission on steep uphill ramps.

    Brand new is the smart system from Bosch, with which you are digitally connected on all tours. All drive components can communicate with each other and inform you about all tour details or the battery charge indicator. You get the information either via the display or the E-Bike Flow app. The Bluetooth System Controller, which is embedded in the top tube, acts as an interface between your bike and smartphone and adds further functions to the control unit in the cockpit.

    The brake line for the rear TRP hydraulic disc brake is routed completely through the frame. The radio-controlled shifting by SRAM receives its commands directly by pressing a button on the handlebar. So does the Rockshox "Reverb AXS" adjustable seatpost.

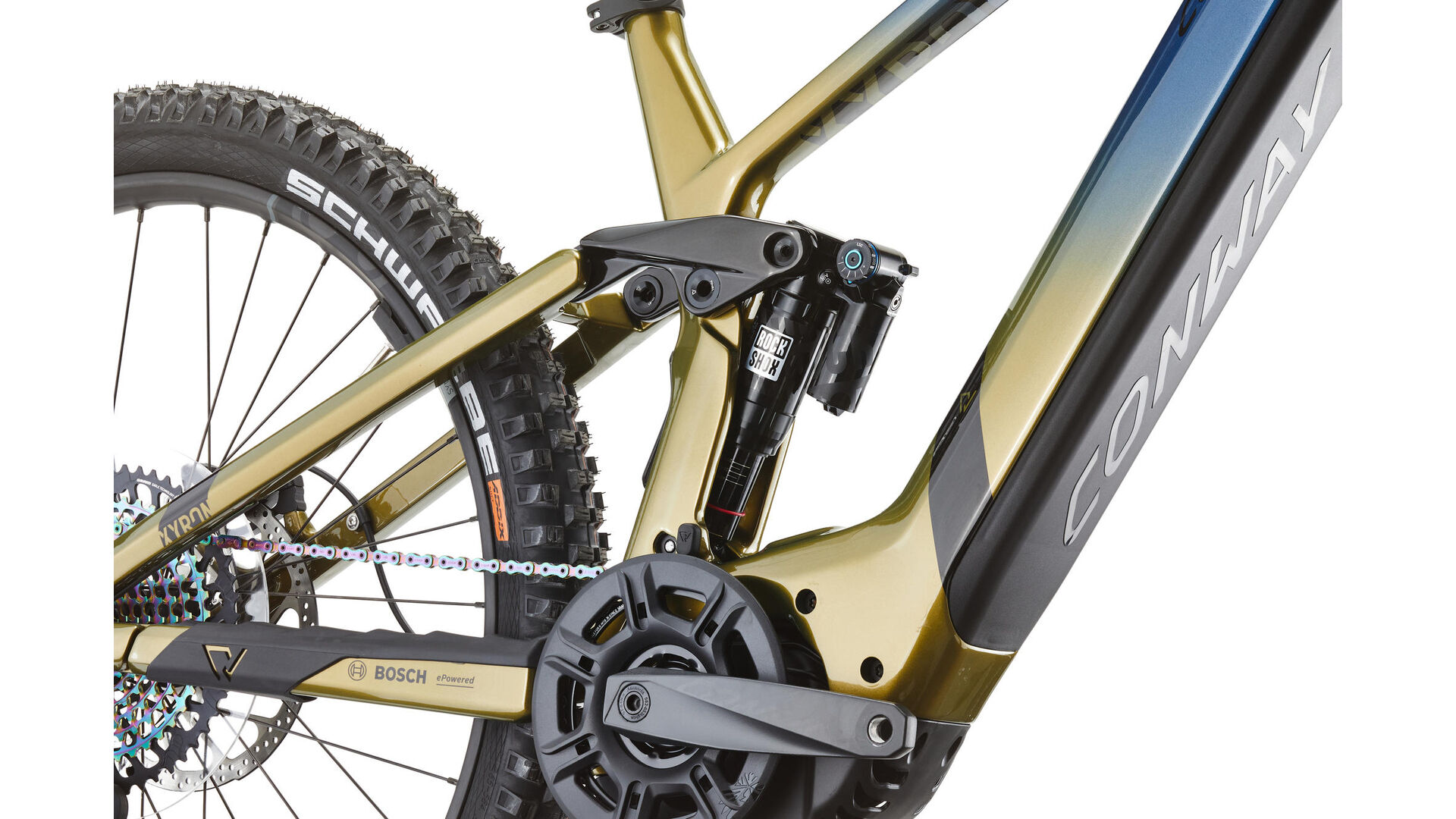

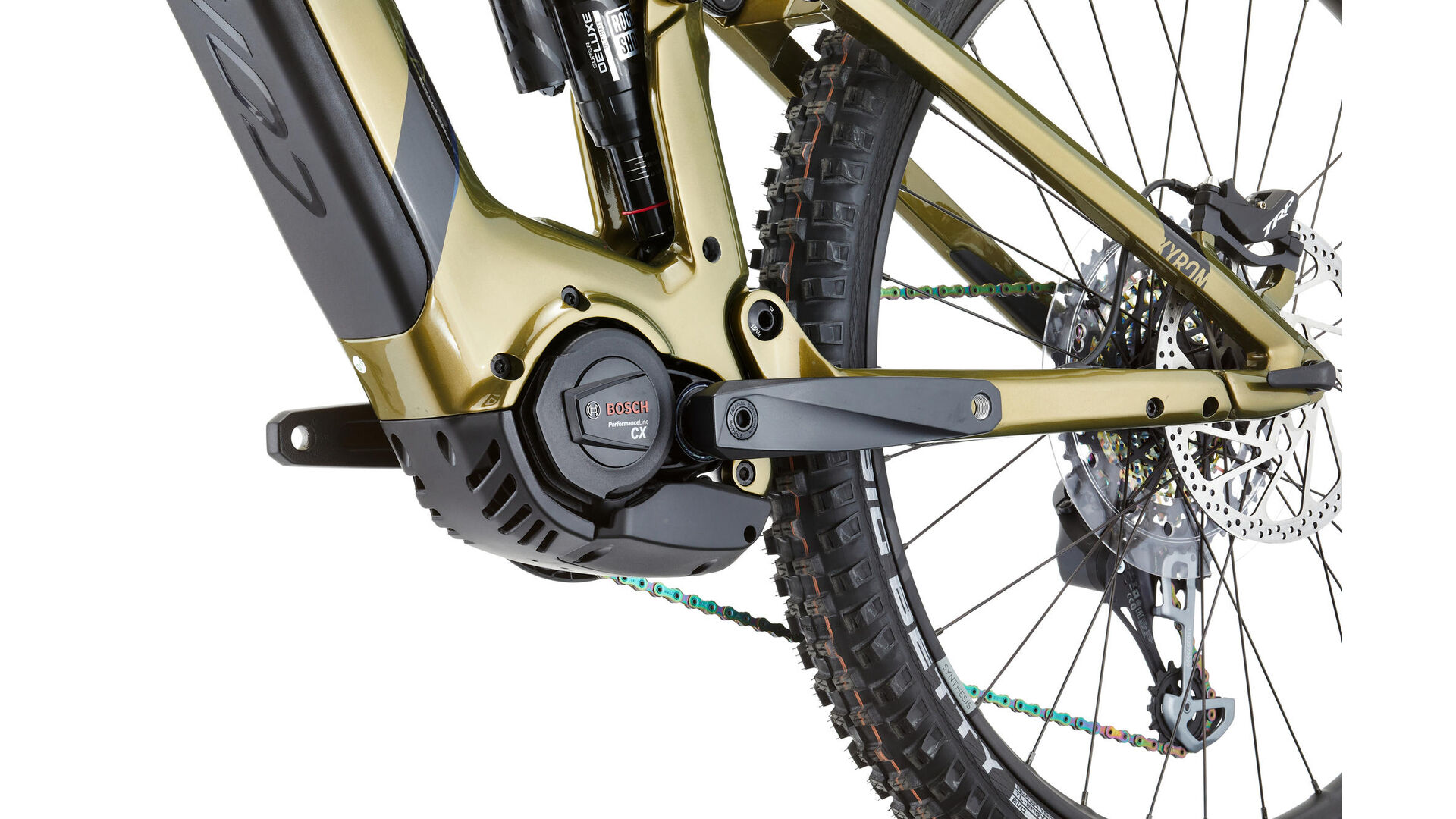

    The drive is supported by the Bosch "Performance CX" motor, which is also elegantly framed into the bottom bracket of the frame and is therefore barely noticeable. It gets you up almost any hill in a balanced and sporty way.

    The Xyron S 9.9 Carbon plays out its all-round strengths on the uphill and the downhill. This is also down to the Rockshox chassis with "ZEB Ultimate" fork with 160 mm of travel and the "Super Deluxe Ultimate" rear shock with full ground traction. Also, the tire set of Schwalbe "Magic Mary" front (62 mm) and rear "Big Betty" (65 mm) in combination with the ultra-light Crankbrothers carbon wheels add to this.

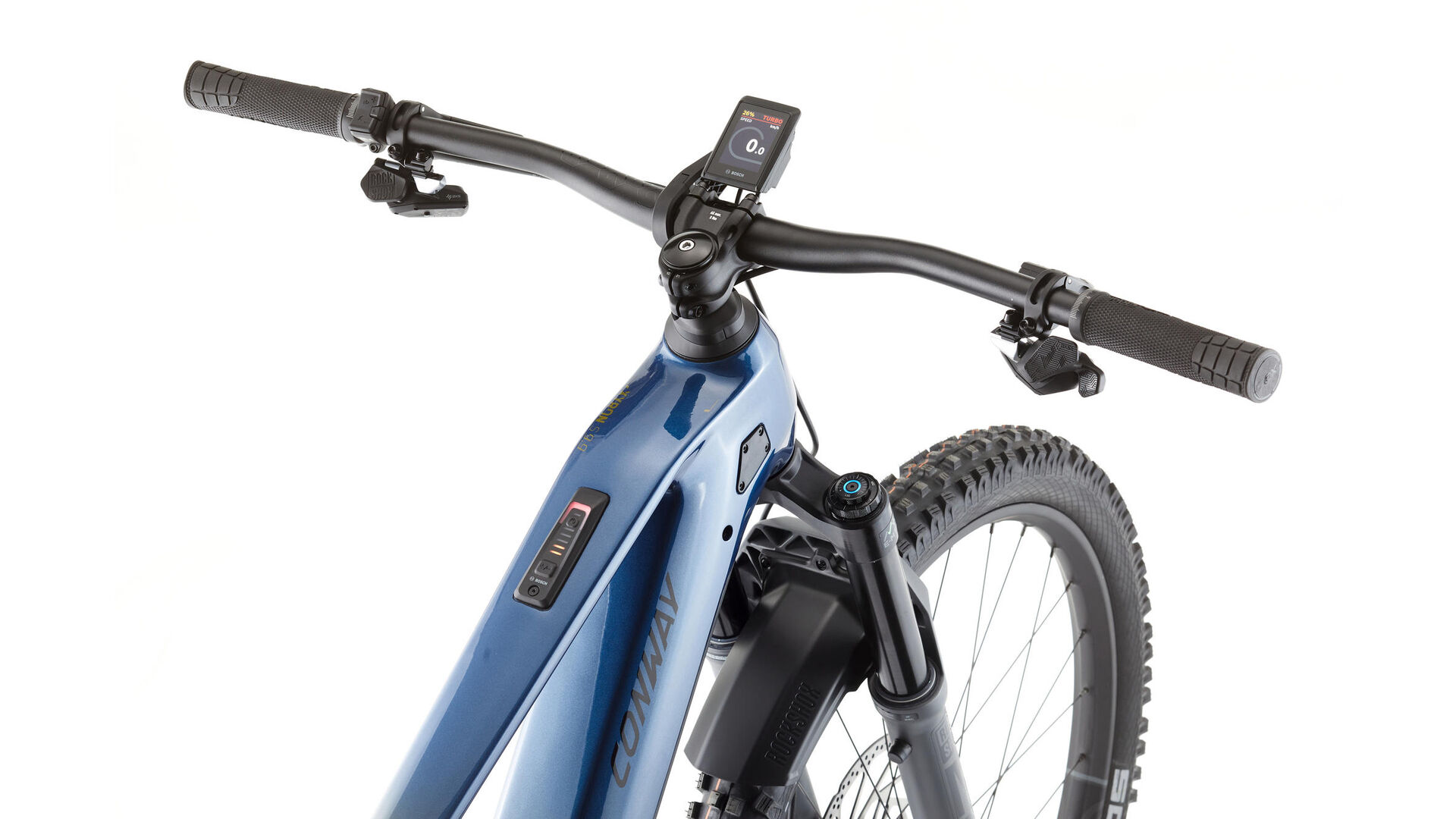

    High-quality Conway accessories and clever solutions round off the high-end package. These include the bearings, which are not visible from the outside, and the super-wide carbon handlebar in 820 mm. This allows you to control the "Xyron S 9.9 Carbon" very precisely on every trail.
    Spezifikationen
    Frame: Intube Bosch, Gen. 4, BES3, carbon, full suspension, 40cm
    Dropout: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
    Fork: ROCKSHOX suspension fork "ZEB Ultimate", 29", 160mm travel, tapered, post mount, boost, Maxle Ultimate thru axle, 44mm offset, with spring, black
    Headset: ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, ICR, 120° blocklock below
    Rear shock: ROCKSHOX "Super Deluxe Ultimate RC2T", 185 x 55mm
    Crank arm: MIRANDA "Epsilon", 165mm, for Bosch Gen.4, ISIS, black
    Chain ring / belt ring: SRAM "X-Sync Eagle", 36 teeth, for Bosch Gen.4, direct mount
    Bottom Bracket: BOSCH
    Brakes: TRP "DH-R EVO HD-M846", 4-Kolben
    Bremse V.R.: TRP disc brake "DH-R EVO" HD-M846, hydraulic, 4 piston, post mount, 20mm adapter, for 2,3mm rotors
    Bremse H.R.: TRP disc brake "DH-R EVO" HD-M846, hydraulic, 4 piston, 23mm adapter, for 2,3mm rotors
    Brake lever: TRP "DH-R EVO HD-M846"
    Front rotor: TRP "RS01E", Ø 220mm, 6-hole, 2,3mm thick
    Rear rotor: TRP "RS01E", Ø 220mm, 6-hole, 2,3mm thick
    Shifting lever: SRAM "Eagle AXS", 12-speed
    Rear derailleur: SRAM "X01 Eagle AXS"
    Cassette / belt sprocket: SRAM "XG-1299", 12-speed Eagle, 10-52 teeth, XD
    Chain / belt: SRAM "XX1 Eagle", rainbow
    Drive unit: BOSCH "Performance Line CX" Gen. 4, BES3
    Battery: BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
    Charger: BOSCH 4 A, BES3
    Remote: BOSCH "BRC3300", mini remote
    Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: CRANKBROTHERS "Synthesis E-MTB Carbon"
    Spokes: CRANKBROTHERS
    Front hub: CRANKBROTHERS "Synthesis E-MTB Carbon", 15 x 110 mm
    Rear hub: CRANKBROTHERS "Synthesis E-MTB Carbon", 12 x 148 mm
    Front tires: "Magic Mary", Evolution Line 62-622, Super Trail, Addix Soft, TLE, foldable, 67 TPI, E-50
    Rear tires: SCHWALBE "Big Betty" Evolution Line, 65-584, Super Gravity, Addix Soft, TLE, foldable, 67 TPI, E-50
    Handle bar: LEVELNINE "Team Riser", 800mm, Ø 31,8mm, backsweep 9°, rise 20mm, black
    Stem: LEVELNINE "Team A-Head ICR", 1 1/8", 31,8mm handlebar clamp, 40mm long, black
    Grips: SQLAB "70X", 135mm, black
    Saddle: FIZIK "Aidon X5", unisex, type 2, regular, black
    Seat post: ROCKSHOX dropper seatpost "Reverb AXS", Ø 31,6mm, 100mm adjustment range, black
    Battery Lock: AXA "New Lock", BES3, for PowerTube
    Technical data
    Category: Full Suspension
    E-bike: yes
    Bosch Smart System: yes
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 750 Wh
    Support: till 25km/h
    Sex: gents
    Frame shape: full suspension
    Frame size: S
    Frame height: 40 cm
    Wheel size: 29"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: X01_AXS
    Brake system: hydraulic disc brake
    Travel: 160 mm
    Frame travel: 160 mm
    Features: suspension fork, damper, electronic sliding aid
    Permissible total weight: 130 kg
    Colour: blue, gold
    Colour designation: blue metallic fade / bronze
    Weight: 24,70 kg
    EAN 4251971119611
    Geometry data
    Logo
    A - Seat tube: 400 mm
    B - Toptube: 585 mm
    C - Steering tube angle: 65°
    D - Stem length: 40 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 443 mm
    G - Steering tube: 120 mm
    H - Reach: 417 mm
    I - Stack: 637 mm
    J - Wheel distance: 1.194 mm
    A - Seat tube: 430 mm
    B - Toptube: 605 mm
    C - Steering tube angle: 65°
    D - Stem length: 40 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 443 mm
    G - Steering tube: 120 mm
    H - Reach: 437 mm
    I - Stack: 637 mm
    J - Wheel distance: 1.214 mm
    A - Seat tube: 460 mm
    B - Toptube: 625 mm
    C - Steering tube angle: 65°
    D - Stem length: 40 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 443 mm
    G - Steering tube: 130 mm
    H - Reach: 454 mm
    I - Stack: 646 mm
    J - Wheel distance: 1.234 mm
    A - Seat tube: 490 mm
    B - Toptube: 645 mm
    C - Steering tube angle: 65°
    D - Stem length: 40 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 443 mm
    G - Steering tube: 140 mm
    H - Reach: 472 mm
    I - Stack: 655 mm
    J - Wheel distance: 1.254 mm
    A - Seat tube: 520 mm
    B - Toptube: 665 mm
    C - Steering tube angle: 65°
    D - Stem length: 40 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 443 mm
    G - Steering tube: 150 mm
    H - Reach: 488 mm
    I - Stack: 664 mm
    J - Wheel distance: 1.274 mm
    Logo
    S M L XL XXL
    A - Seat tube: 400 mm 430 mm 460 mm 490 mm 520 mm
    B - Toptube: 585 mm 605 mm 625 mm 645 mm 665 mm
    C - Steering tube angle: 65° 65° 65° 65° 65°
    D - Stem length: 40 mm 40 mm 40 mm 40 mm 40 mm
    E - Seat angle: 75° 75° 75° 75° 75°
    F - Kettenstrebe: 443 mm 443 mm 443 mm 443 mm 443 mm
    G - Steering tube: 120 mm 120 mm 130 mm 140 mm 150 mm
    H - Reach: 417 mm 437 mm 454 mm 472 mm 488 mm
    I - Stack: 637 mm 637 mm 646 mm 655 mm 664 mm
    J - Wheel distance: 1.194 mm 1.214 mm 1.234 mm 1.254 mm 1.274 mm
