E-MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 26,90 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
Product information

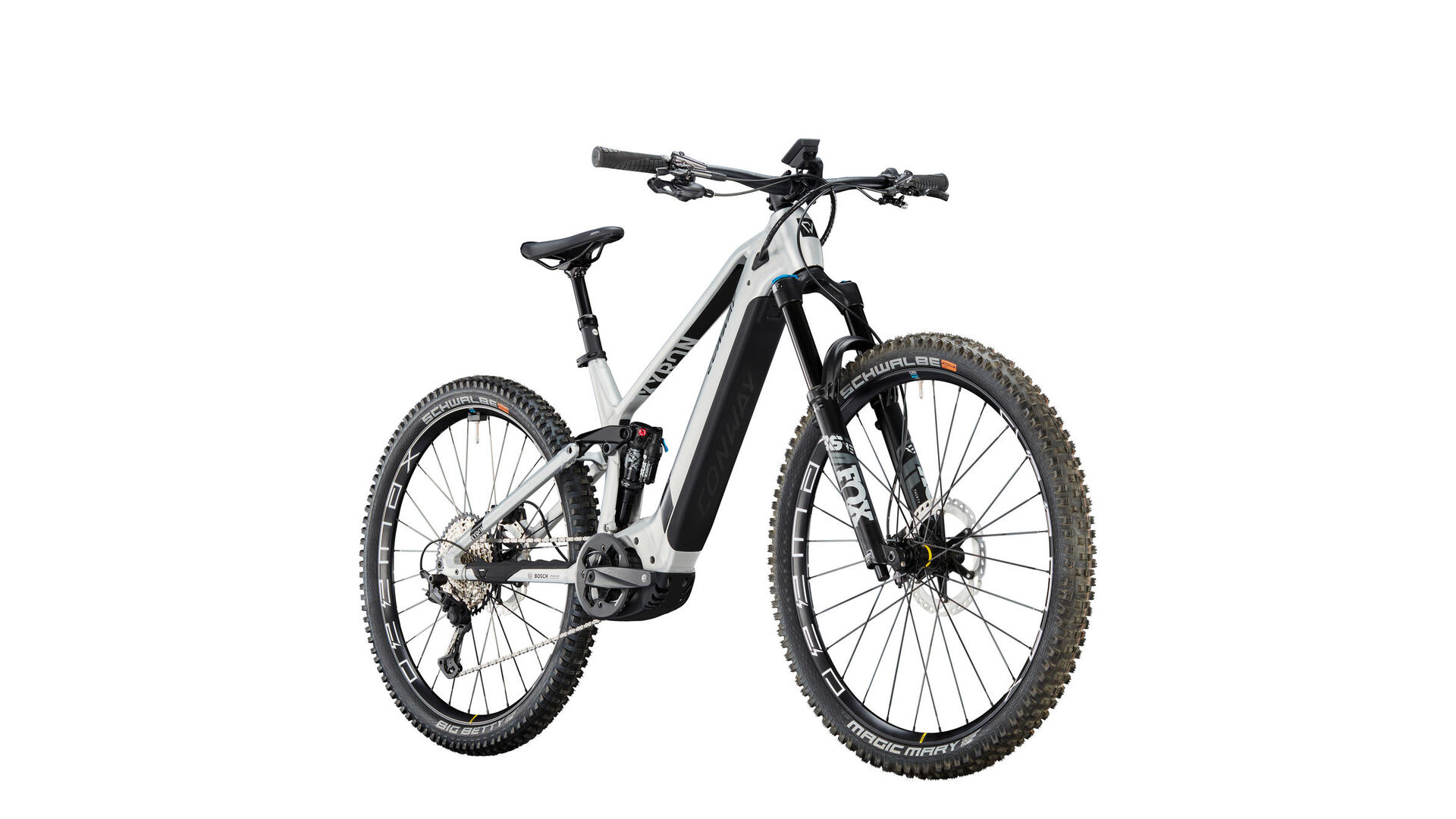

"Xyron S 5.9 Full Suspension "
Ready for a proper ride? Our "Xyron S 5.9" takes you there! The e-full suspension bike looks good on fast downhill sections and steep uphill climbs. The robust equipment and solid aluminum frame make it a great choice. And there is a refresh in terms of drive. Thanks to the Bosch Smart System, the drive components can now communicate with each other via the E-Bike Flow app.
The Bluetooth System Controller acts as the interface between the bike and the phone. Its functions are limited to the essentials and it fits discreetly into the top tube. The Mini Remote is the perfect companion to the control unit and offers three additional buttons and functions.
All-terrain capability of the e-full suspension bike is made possible by the 150 mm travel in fork and frame. The combination of the sporty Bosch "Performance CX" motor and the derailleur from Shimano provide speed. With its 10-51 teeth, it offers the full range for touring through low mountain ranges, while the motor pushes you powerfully up the mountains at up to 25 km/h. The hydraulic disc brakes, which ensure precise braking, also come from Shimano.
Optimal grip even on loose ground – the Schwalbe tire combination of "Magic Mary" in the front and "Big Betty" in the rear provide this – both in 62 mm width. The wheels on the "Xyron S 5.9" are the e-bike specific "E-Deemax" from rim specialist Mavic and they stand for maximum performance and reliability at low weight!
Fine details are our 780 mm wide handlebars, with which you can steer sensitively over the trail. Also, the adjustable "Drop-A-Gogo" seatpost from Contec with the Fizik "Aidon" saddle make significant gains: At the touch of a button in the cockpit, it brings you into the optimal position on the bike – and its even comfortable thanks to optimal pressure relief in the right areas of the body.
The Bluetooth System Controller acts as the interface between the bike and the phone. Its functions are limited to the essentials and it fits discreetly into the top tube. The Mini Remote is the perfect companion to the control unit and offers three additional buttons and functions.
All-terrain capability of the e-full suspension bike is made possible by the 150 mm travel in fork and frame. The combination of the sporty Bosch "Performance CX" motor and the derailleur from Shimano provide speed. With its 10-51 teeth, it offers the full range for touring through low mountain ranges, while the motor pushes you powerfully up the mountains at up to 25 km/h. The hydraulic disc brakes, which ensure precise braking, also come from Shimano.
Optimal grip even on loose ground – the Schwalbe tire combination of "Magic Mary" in the front and "Big Betty" in the rear provide this – both in 62 mm width. The wheels on the "Xyron S 5.9" are the e-bike specific "E-Deemax" from rim specialist Mavic and they stand for maximum performance and reliability at low weight!
Fine details are our 780 mm wide handlebars, with which you can steer sensitively over the trail. Also, the adjustable "Drop-A-Gogo" seatpost from Contec with the Fizik "Aidon" saddle make significant gains: At the touch of a button in the cockpit, it brings you into the optimal position on the bike – and its even comfortable thanks to optimal pressure relief in the right areas of the body.
Spezifikationen
Frame: | Intube Bosch, Gen.4, BES3, aluminium, full suspension, 40cm |
Dropout: | CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20 |
Fork: | FOX RACING SHOX suspension fork "36 Float Performance E", 29", 150mm travel, tapered, post mount, boost, thru axle, 44mm offset, black |
Headset: | ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below |

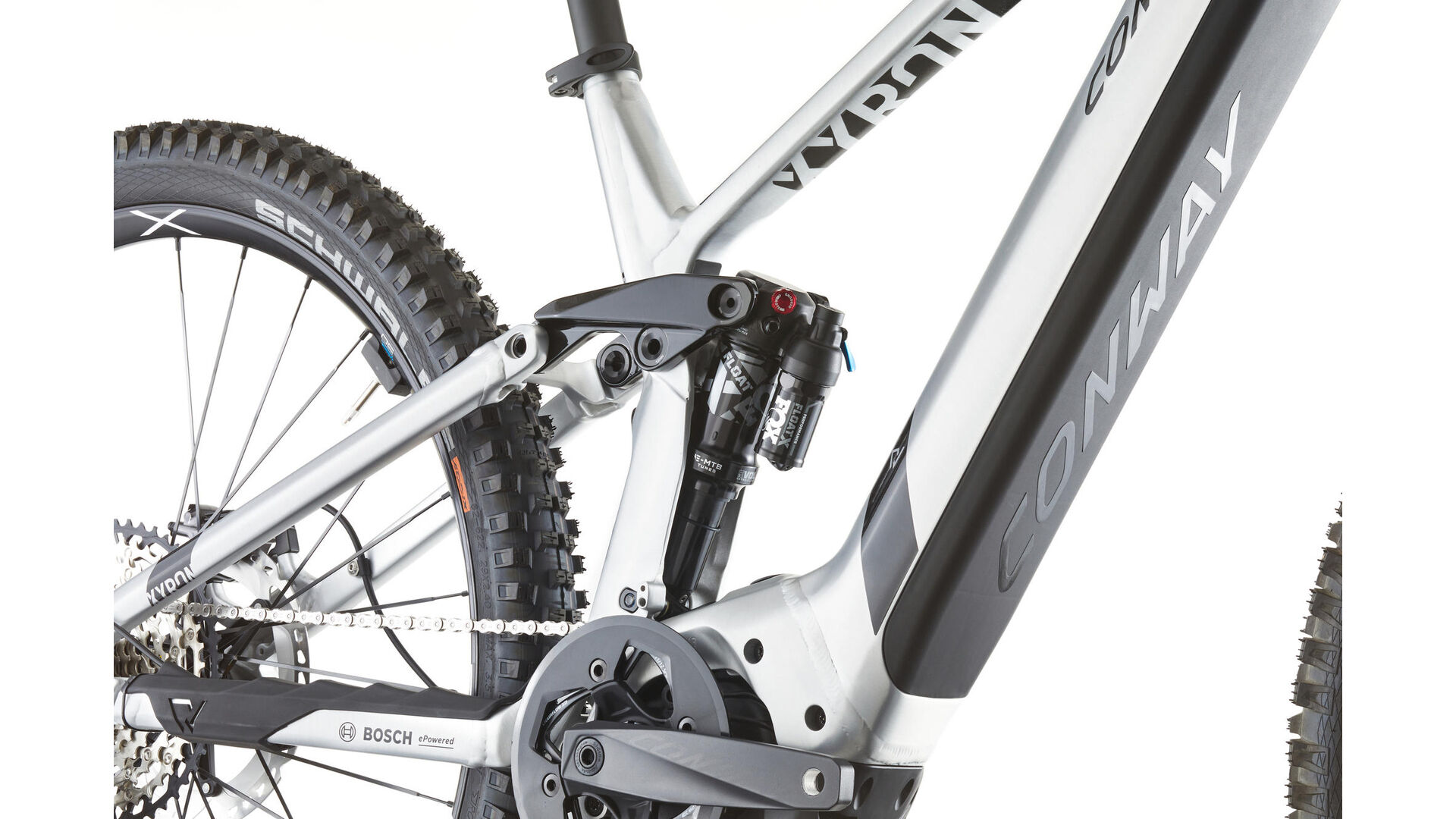

Rear shock: | FOX "Float X", 185 x 55mm |
Crank set: | MIRANDA "Epsilon", boost, 165mm, 36 teeth, for Bosch Gen.4, ISIS, black |
Bremse V.R.: | SHIMANO disc brake "Deore XT BL-M8100 / BR-M8120", hydraulich, 4 piston, post mount |
Bremse H.R.: | SHIMANO disc brake "Deore XT BL-M8100 / BR-M8120", hydraulic, 4 piston, adapter for 203mm |
Front rotor: | SHIMANO "RT-MT800", Ø 203mm, Center Lock, external toothing |
Rear rotor: | SHIMANO "RT-MT800", Ø 203mm, Center Lock, external toothing |
Shifting lever: | SHIMANO "Deore XT SL-M8100", I-Spec, 12-speed |
Rear derailleur: | SHIMANO "Deore XT RD-M8100" |
Cassette / belt sprocket: | SHIMANO "SLX CS-M7100", 12-speed, 10-51 teeth, Micro Spline |
Chain / belt: | SHIMANO "SLX CN-M7100" |

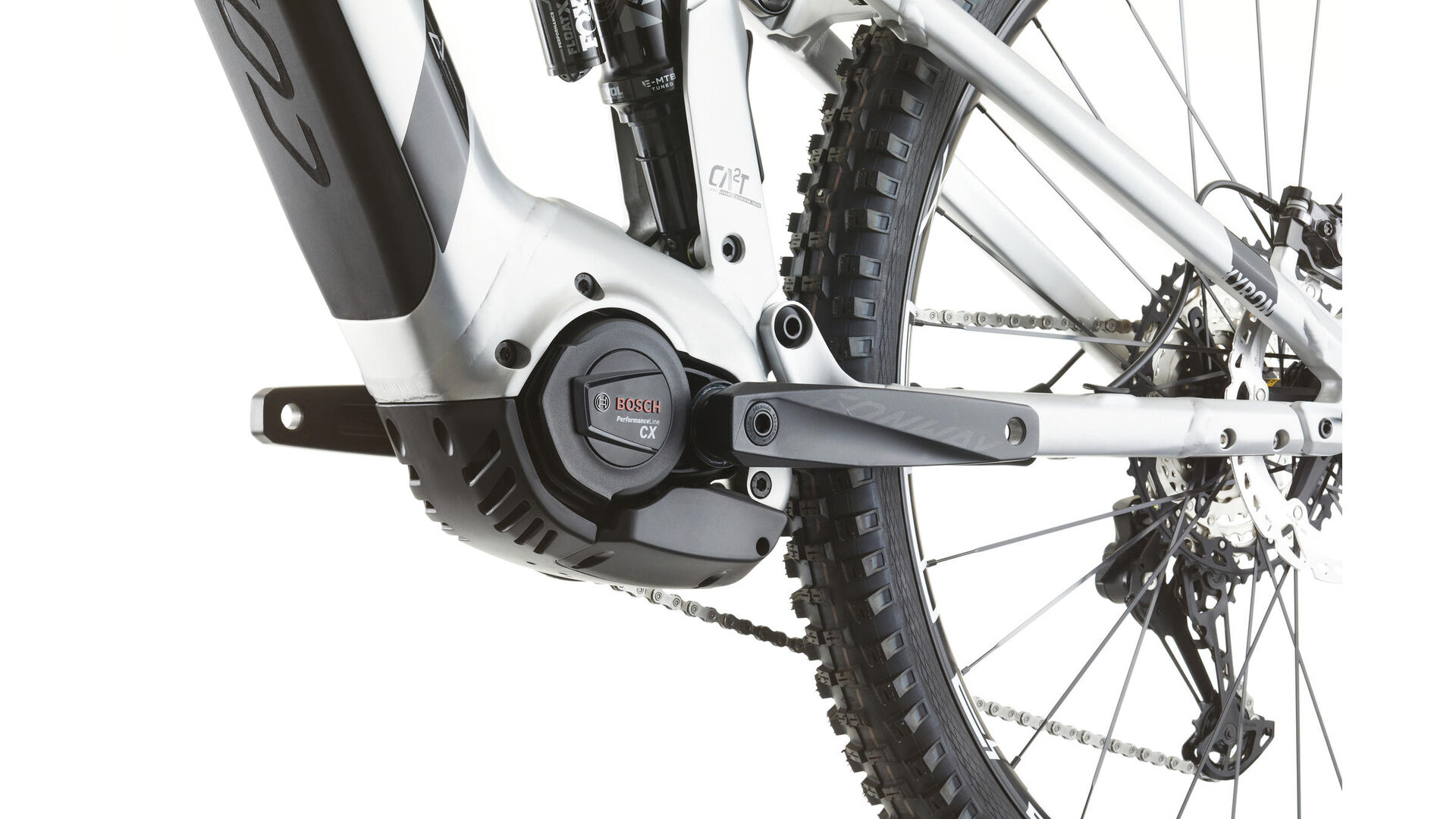

Drive unit: | BOSCH "Performance Line CX" Gen. 4, BES3 |
Battery: | BOSCH "PowerTube 750", 750 Wh, BES3, horizontal |
Charger: | BOSCH 4 A, BES3 |
Remote: | BOSCH "BRC3300", mini remote |
Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
Laufrad V.R.: | MAVIC "E-Deemax S 29", 15 x 110mm, Center Lock |
Laufrad H.R.: | MAVIC "E-Deemax 29", 12 x 148mm, Center Lock, 12-speed Micro Spline |
Front tires: | SCHWALBE "Magic Marry" Evolution Line, 62-622, Super Gravity, Addix Soft, TLE, foldable, 67 TPI, E-50 |
Rear tires: | SCHWALBE "Big Betty " Evolution Line, 62-622, Super Gravity, Addix Soft, TLE, foldable, 67 TPI, E-50 |

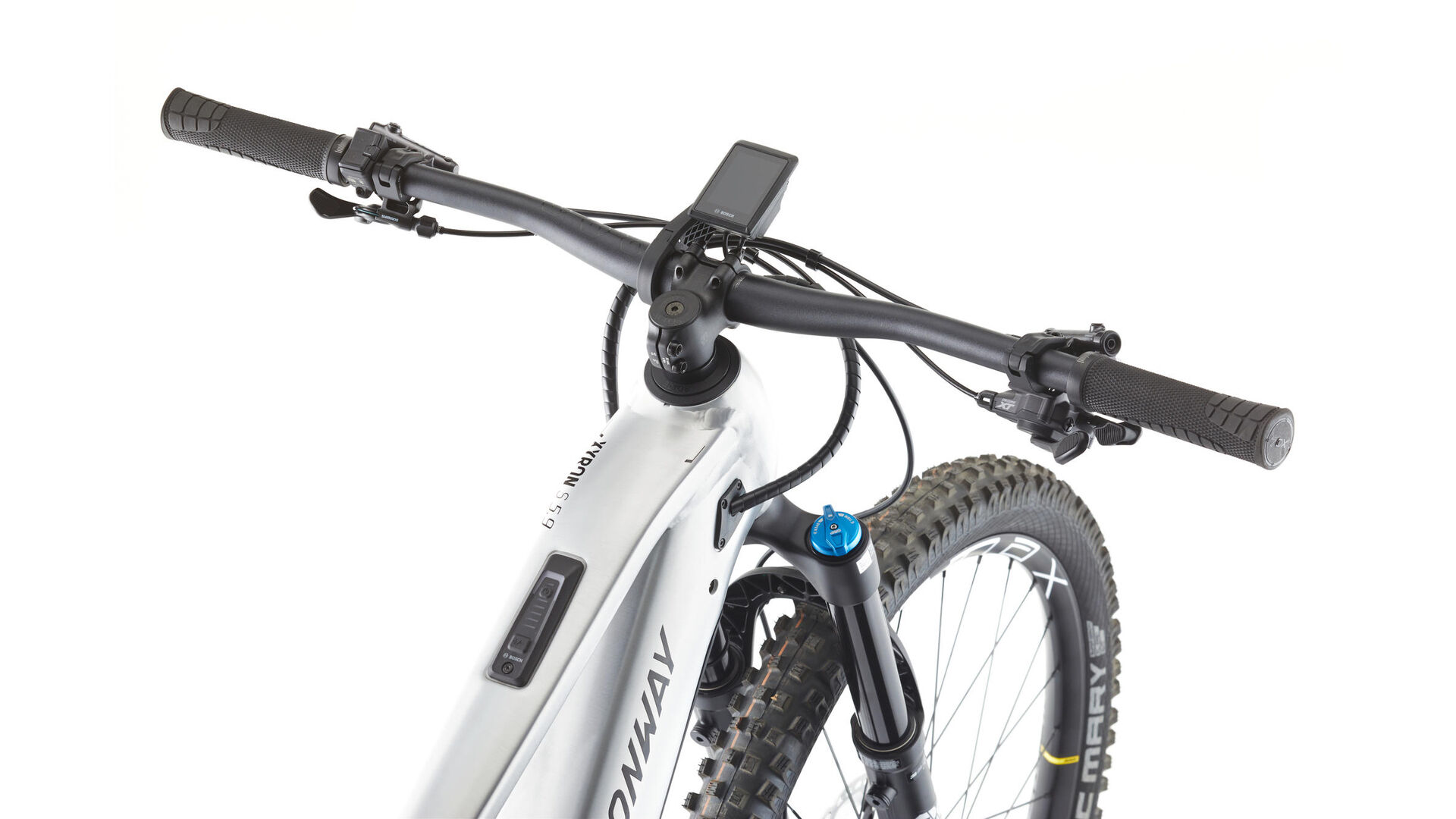

Handle bar: | LEVELNINE "Race Riser", 780mm, Ø 31,8mm, backsweep 9°, rise 15mm, black |
Stem: | LEVELNINE "A-Head", 1 1/8", 31,8mm handlebar clamp, 35mm long, angle 0°, black |
Grips: | SQLAB "70X", 135mm, black |
Saddle: | FIZIK "Aidon X5", unisex, type 2, regular, black |
Seat post: | CONTEC dropper seatpost "Drop-A-Gogo", aluminium, Ø 31,6mm, 340mm long, 100mm adjustable range, black |
Battery Lock: | AXA "New Lock", for PowerTube, BES3 |
Technical data
Category: | Full Suspension |
E-bike: | yes |
Bosch Smart System: | yes |
Drive system: | Bosch |
Drive version: | middle motor |
Battery capacity: | 750 Wh |
Support: | till 25km/h |
Sex: | gents |
Frame shape: | full suspension |
Frame size: | S |
Frame height: | 40 cm |
Wheel size: | 29" |
Drive: | chain drive |
Shifting type: | derailleur |
Gears: | 12-speed |
Transmission: | 1x 12-fach |
Circuit brand: | Shimano |
Shifting model: | XT |
Brake system: | hydraulic disc brake |
Travel: | 150 mm |
Frame travel: | 150 mm |
Features: | suspension fork, damper, electronic sliding aid |
Permissible total weight: | 130 kg |
Material: | aluminium |
Colour: | silver, black |
Colour designation: | aluminium raw matt / black metallic |
Weight: | 26,90 kg |
EAN | 4251971119406 |
Geometry data
S
M
L
XL
XXL
A - Seat tube: | 400 mm |
B - Toptube: | 585 mm |
C - Steering tube angle: | 65° |
D - Stem length: | 35 mm |
E - Seat angle: | 76° |
F - Kettenstrebe: | 465 mm |
G - Steering tube: | 120 mm |
H - Reach: | 422 mm |
I - Stack: | 633 mm |
J - Wheel distance: | 1.213 mm |
A - Seat tube: | 430 mm |
B - Toptube: | 605 mm |
C - Steering tube angle: | 65° |
D - Stem length: | 35 mm |
E - Seat angle: | 76° |
F - Kettenstrebe: | 465 mm |
G - Steering tube: | 120 mm |
H - Reach: | 442 mm |
I - Stack: | 633 mm |
J - Wheel distance: | 1.233 mm |
A - Seat tube: | 460 mm |
B - Toptube: | 625 mm |
C - Steering tube angle: | 65° |
D - Stem length: | 35 mm |
E - Seat angle: | 76° |
F - Kettenstrebe: | 465 mm |
G - Steering tube: | 130 mm |
H - Reach: | 459 mm |
I - Stack: | 642 mm |
J - Wheel distance: | 1.255 mm |
A - Seat tube: | 490 mm |
B - Toptube: | 645 mm |
C - Steering tube angle: | 65° |
D - Stem length: | 35 mm |
E - Seat angle: | 76° |
F - Kettenstrebe: | 465 mm |
G - Steering tube: | 140 mm |
H - Reach: | 476 mm |
I - Stack: | 651 mm |
J - Wheel distance: | 1.276 mm |
A - Seat tube: | 520 mm |
B - Toptube: | 665 mm |
C - Steering tube angle: | 65° |
D - Stem length: | 35 mm |
E - Seat angle: | 76° |
F - Kettenstrebe: | 465 mm |
G - Steering tube: | 150 mm |
H - Reach: | 493 mm |
I - Stack: | 660 mm |
J - Wheel distance: | 1.297 mm |
S | M | L | XL | XXL | |
---|---|---|---|---|---|
A - Seat tube: | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
C - Steering tube angle: | 65° | 65° | 65° | 65° | 65° |
D - Stem length: | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
E - Seat angle: | 76° | 76° | 76° | 76° | 76° |
F - Kettenstrebe: | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
G - Steering tube: | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
H - Reach: | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
I - Stack: | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
J - Wheel distance: | 1.213 mm | 1.233 mm | 1.255 mm | 1.276 mm | 1.297 mm |
