Xyron S 2.9 SE Full Suspension
shadowgrey metallic / desert matt
4,899.95€ *
E-MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 27,80 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Gears: 12-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information
"Xyron S 2.9 SE Full Suspension "
The "Xyron S 2.9 SE" presents itself as a versatile full suspension e-bike that can impress on single trails as well as on pleasant tours in the low mountain range. With a wheel size of 29" and the smooth-running aluminum frame, it offers an excellent combination of stability and maneuverability.
Driven by the Bosch mid-motor, the e-bike provides assistance up to 25 km/h. The powerful 750 Wh Battery ensures long-lasting riding pleasure, ideal for extended tours. The "SX" 12-speed derailleur system from SRAM enables precise gear changes and a wide gear ratio that can be adapted to different riding conditions.
The hydraulic Disc Brakes ensure reliable braking power even in demanding situations. With a fork suspension travel of 150 mm and an identical frame suspension travel of 150 mm, the "Xyron S 2.9 SE" offers a high level of comfort and control, even on uneven terrain. In addition, a Light Cable for the front lighting is integrated ex works to make retrofitting as easy and cost-effective as possible.
Driven by the Bosch mid-motor, the e-bike provides assistance up to 25 km/h. The powerful 750 Wh Battery ensures long-lasting riding pleasure, ideal for extended tours. The "SX" 12-speed derailleur system from SRAM enables precise gear changes and a wide gear ratio that can be adapted to different riding conditions.
The hydraulic Disc Brakes ensure reliable braking power even in demanding situations. With a fork suspension travel of 150 mm and an identical frame suspension travel of 150 mm, the "Xyron S 2.9 SE" offers a high level of comfort and control, even on uneven terrain. In addition, a Light Cable for the front lighting is integrated ex works to make retrofitting as easy and cost-effective as possible.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, Carbon, Fullsuspension, 43 cm |
| Dropout: | CONWAY for WME Carbon, Xyron, RLC FS, Cairon SUV FS, from mod. 2020 |
| Fork: | ROCKSHOX "Recon Silver RL", 150 mm travel, SoloAir, Motion Control, Maxle Lite Thru Axle |
| Headset: | ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock |

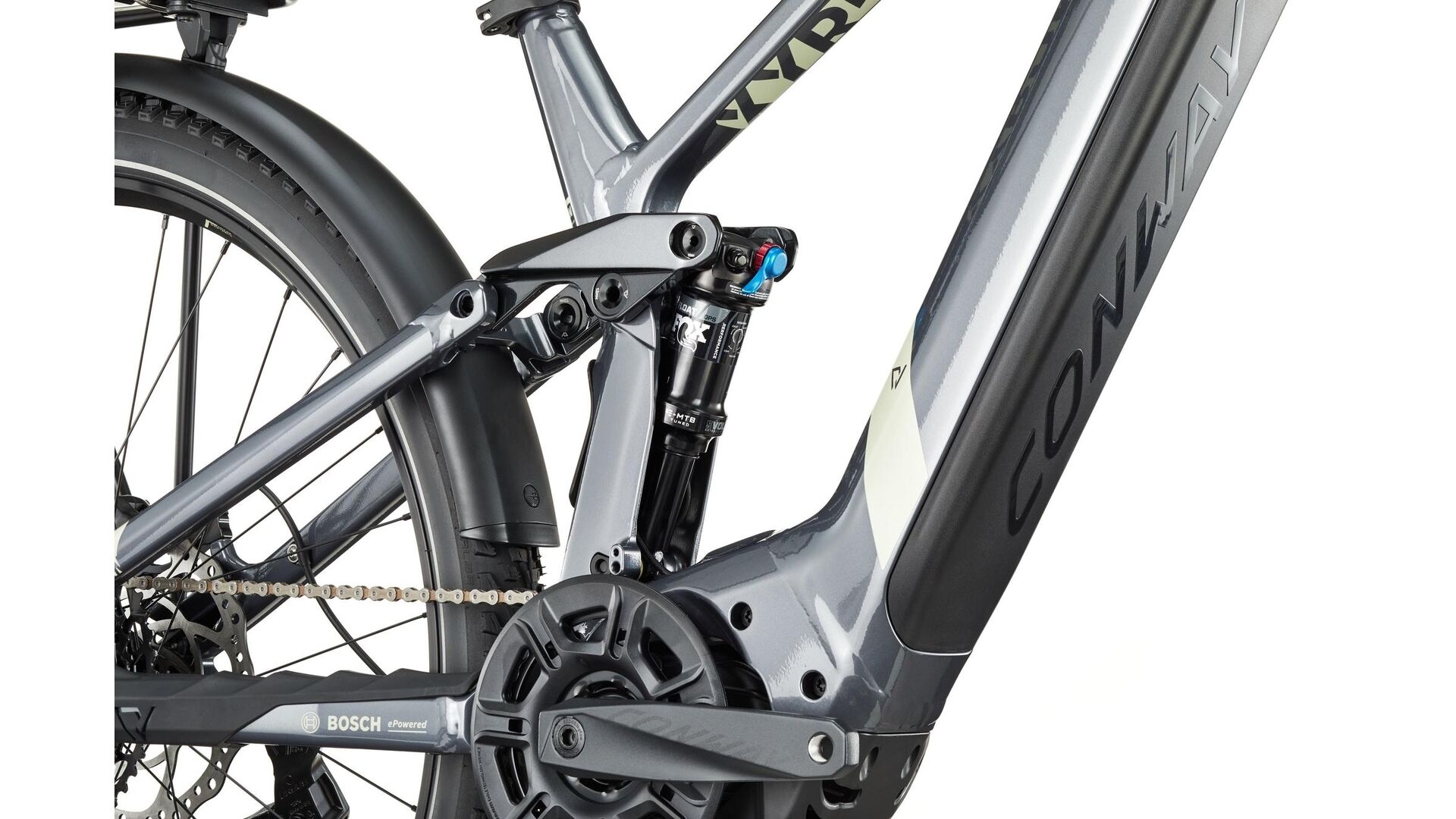

| Rear shock: | FOX "Float DPS", 185 mm x 50 mm |
| Crank arm: | MIRANDA "Epsilon", 165 mm, for Bosch Gen. 4, ISIS, 55Q:8, black |
| Chain ring / belt ring: | SRAM "X-Sync 2 Eagle", 36 teeth |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M535", 4/4-Kolben |
| Bremse V.R.: | TEKTRO "HD-M535", Post Mount |
| Bremse H.R.: | TEKTRO Disc Brake "HD-M535", hydraulic, 4 pistons, for 2.3 mm brake rotors |
| Brake lever: | TEKTRO "HD-M535" |
| Front rotor: | TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick |
| Rear rotor: | TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick |
| Shifting lever: | SRAM "SX Eagle" |
| Rear derailleur: | SRAM "SX Eagle" |
| Cassette / belt sprocket: | SRAM "PG-1210", 11-50 teeth |
| Chain / belt: | SRAM "SX Eagle" |

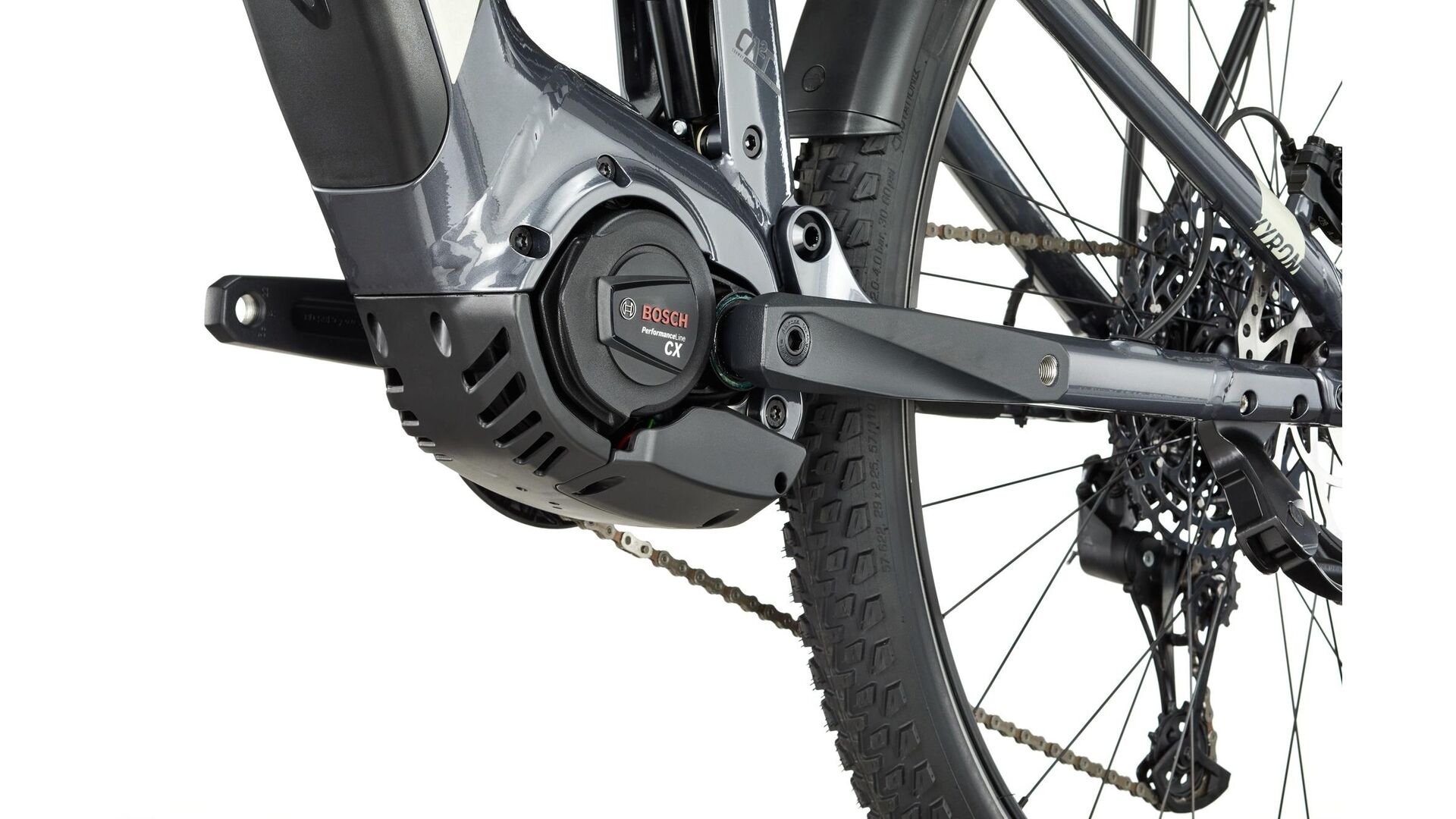

| Drive unit: | BOSCH "Performance Line CX", max. 85 Nm |
| Battery: | BOSCH "PowerTube 750", 750 Wh |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| System interface: | BOSCH "BRC3100" |

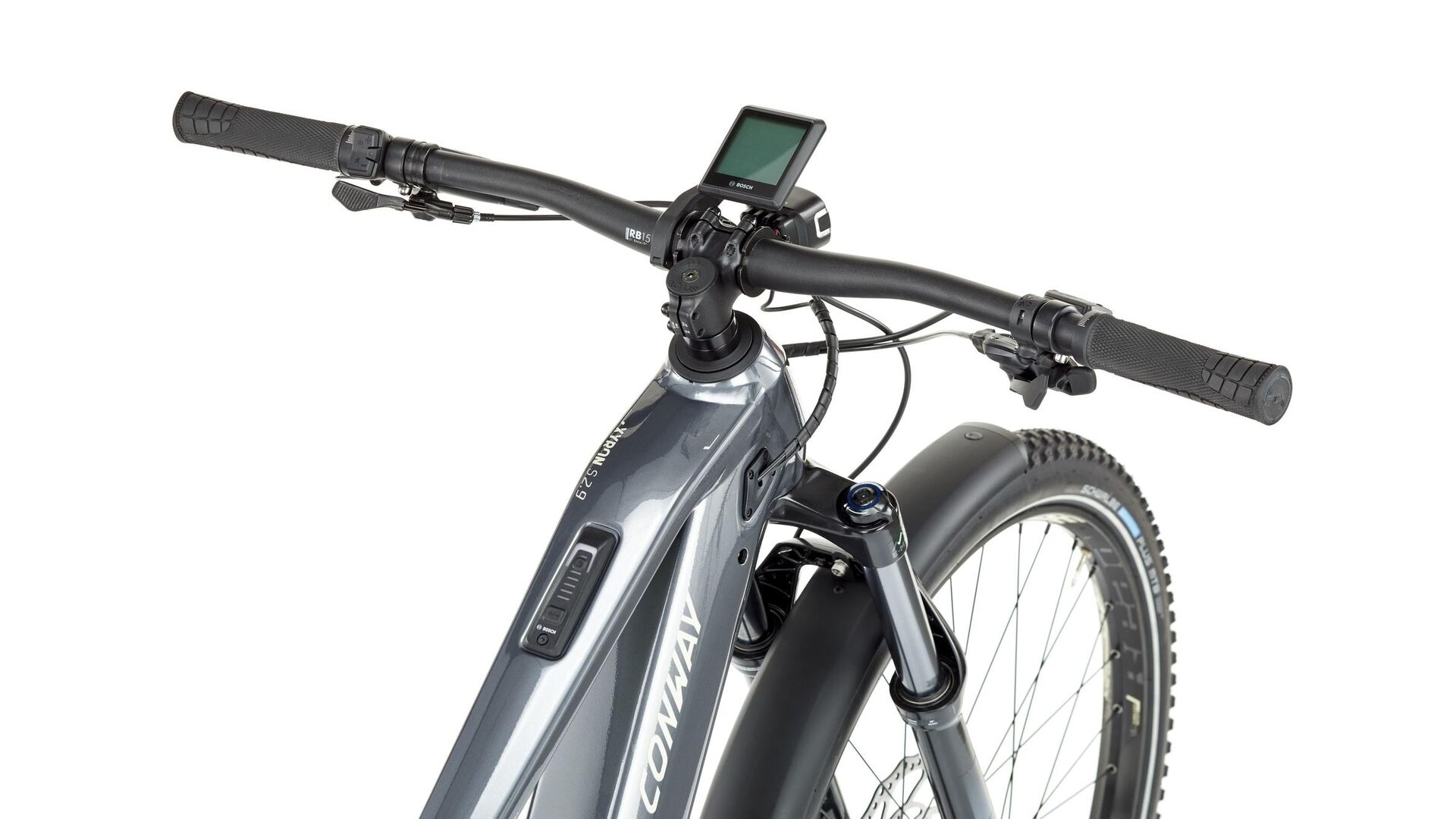

| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Ready 35", 35-622, 32 holes, disc brake, easy eyelets, black |
| Spokes: | MACH 1 "PRO" |
| Front hub: | FORMULA "DC-511", 15 x 110 mm, Thru Axle |
| Rear hub: | FORMULA "EHL-148S", 12 x 148 mm Boost, Thru Axle, 6-hole |
| Front tires: | SCHWALBE "Marathon Plus MTB", 57-622, Reflex |
| Rear tires: | SCHWALBE "Marathon Plus MTB", 57-622, Reflex |
| Handle bar: | LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm |
| Stem: | LEVELNINE "Race A-Head", 1 1/8", 31.8 mm handlebar clamps, 35 mm long, 0° angle, black |
| Grips: | SQlab "70X" |
| Saddle: | Selle Royal "2315HRN", Athletic |
| Seat post: | LIMOTEC "A1L", Ø 31.6 mm, 402 mm long, 125 mm adjustment range, 0 mm offset |
| Mud Guards: | curana "Apollo 75" |
| Carrier: | atranvelo "Commute Pro" |
| Front light: | CONTEC "DLUX 120 E+", 120 lux |
| Tail light: | CONTEC "TL-335 E-Stop", stop light |
| Battery Lock: | AXA "New Lock" |
| Kickstand: | URSUS "R81 - Wave Rear" |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | M |
| Frame height: | 43 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | SRAM |
| Shifting model: | SX |
| Brake system: | hydraulic disc brake |
| Travel: | 150 mm |
| Frame travel: | 150 mm |
| Features: | suspension fork, damper, electronic sliding aid, fender |
| Kategorie E-Rad: | 3 |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | beige |
| Colour designation: | shadowgrey metallic / desert matt |
| Weight: | 27,80 kg |
| EAN | 4251971168237 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 400 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 65° |
| D - Seat angle: | 76° |
| E - Kettenstrebe: | 465 mm |
| F - Steering tube: | 120 mm |
| G - Reach: | 422 mm |
| H - Stack: | 633 mm |
| I - Wheel distance: | 1.213 mm |
| A - Seat tube: | 430 mm |
| B - Toptube: | 605 mm |
| C - Steering tube angle: | 65° |
| D - Seat angle: | 76° |
| E - Kettenstrebe: | 465 mm |
| F - Steering tube: | 120 mm |
| G - Reach: | 442 mm |
| H - Stack: | 633 mm |
| I - Wheel distance: | 1.233 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 65° |
| D - Seat angle: | 76° |
| E - Kettenstrebe: | 465 mm |
| F - Steering tube: | 130 mm |
| G - Reach: | 459 mm |
| H - Stack: | 642 mm |
| I - Wheel distance: | 1.255 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 645 mm |
| C - Steering tube angle: | 65° |
| D - Seat angle: | 76° |
| E - Kettenstrebe: | 465 mm |
| F - Steering tube: | 140 mm |
| G - Reach: | 476 mm |
| H - Stack: | 651 mm |
| I - Wheel distance: | 1.276 mm |
| A - Seat tube: | 520 mm |
| B - Toptube: | 665 mm |
| C - Steering tube angle: | 65° |
| D - Seat angle: | 76° |
| E - Kettenstrebe: | 465 mm |
| F - Steering tube: | 150 mm |
| G - Reach: | 493 mm |
| H - Stack: | 660 mm |
| I - Wheel distance: | 1.297 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° | 65° |
| D - Seat angle: | 76° | 76° | 76° | 76° | 76° |
| E - Kettenstrebe: | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| F - Steering tube: | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| G - Reach: | 422 mm | 442 mm | 459 mm | 476 mm | 493 mm |
| H - Stack: | 633 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| I - Wheel distance: | 1.213 mm | 1.233 mm | 1.255 mm | 1.276 mm | 1.297 mm |
