Xyron S 5.0 Carbon Full Suspension
5,999.95€ *
E-MOUNTAINBIKE ➜ Material: Carbon ✓ Gewicht: 25,40 kg ✓ Laufradgröße: 29___27,5" ✓ Gänge: 12-Gang ✓ Antriebsvariante: Mittelmotor ✓ ➤ Jetzt entdecken
Product information
"Xyron S 5.0 Carbon Full Suspension "
The Conway "Xyron S 5.0 Carbon" is a high-quality full-suspension e-bike designed for demanding riders. With a total weight of 25.4 kg and a permissible total weight of 130 kg, it offers stability and robustness for a wide variety of terrains.
Powered by a Bosch mid-motor with a battery capacity of 750 Wh, it provides support up to 25 km/h, making it easier to ride on long distances and steep climbs.
150 mm of suspension travel on the Suspension Fork and Frame ensures comfort and control on all trails. The 12-speed derailleur gear system from SRAM (model "SX Eagle") with a 1x 12-speed gear ratio enables precise gear changes. Hydraulic disc brakes provide reliable braking power.
The MX concept, with a 29" Front Wheel and 27.5" Rear Wheel, also contributes significantly to the bike's handling and sporty appeal. The Conway "Xyron S 5.0 Carbon" combines innovative technology and sophisticated design for an outstanding riding experience.
Powered by a Bosch mid-motor with a battery capacity of 750 Wh, it provides support up to 25 km/h, making it easier to ride on long distances and steep climbs.
150 mm of suspension travel on the Suspension Fork and Frame ensures comfort and control on all trails. The 12-speed derailleur gear system from SRAM (model "SX Eagle") with a 1x 12-speed gear ratio enables precise gear changes. Hydraulic disc brakes provide reliable braking power.
The MX concept, with a 29" Front Wheel and 27.5" Rear Wheel, also contributes significantly to the bike's handling and sporty appeal. The Conway "Xyron S 5.0 Carbon" combines innovative technology and sophisticated design for an outstanding riding experience.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, Carbon, Fullsuspension, 40 cm |
| Dropout: | CONWAY for WME Carbon, Xyron, RLC FS, Cairon SUV FS, from mod. 2020 |
| Fork: | FOX "36 Float Rhythm", 160 mm travel, Float Evol, Grip, Thru Axle |
| Headset: | ACROS ZS56/28.6 / ZS56/40, ICR, 120° blocklock |
| Rear shock: | FOX "Float DPS", 185 mm x 55 mm |
| Crank arm: | MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black |
| Chain ring / belt ring: | SRAM "X-Sync 2 Eagle", 36 teeth |
| Bottom Bracket: | BOSCH |
| Brakes: | MAGURA "MT5 E-Stop", 4/4-Kolben |
| Bremse V.R.: | MAGURA "MT5 eStop" |
| Bremse H.R.: | MAGURA "MT5 eStop" |
| Brake lever: | MAGURA "MT5 E-Stop" |
| Front rotor: | MAGURA "MDR-C", Ø 203mm, 6-hole |
| Rear rotor: | MAGURA "MDR-C", Ø 203mm, 6-hole |
| Shifting lever: | SRAM "NX Eagle" |
| Rear derailleur: | SRAM "GX Eagle" |
| Cassette / belt sprocket: | SRAM "XG-1275", 10-52 teeth |
| Chain / belt: | SRAM "SX Eagle" |

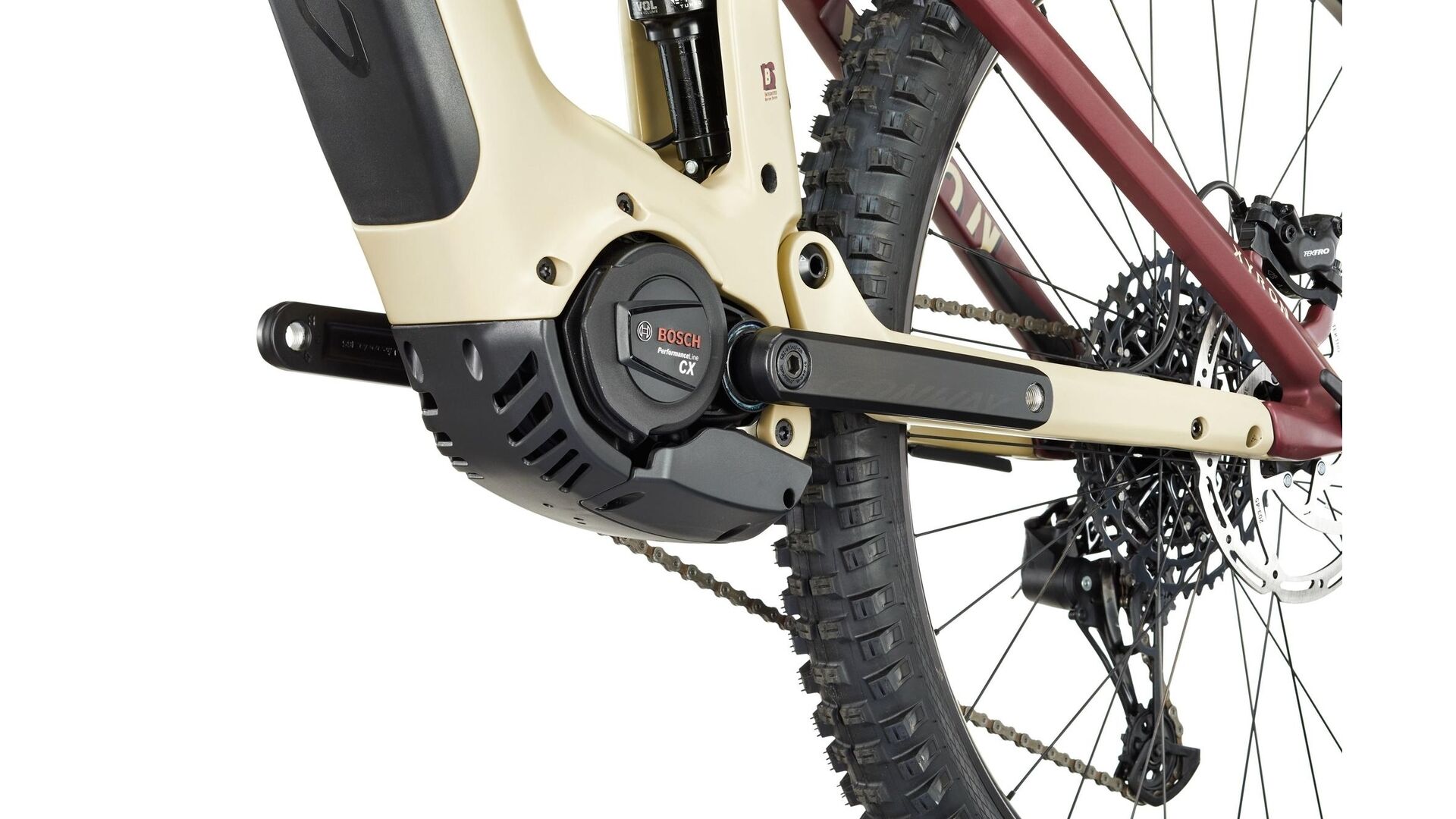

| Drive unit: | BOSCH "Performance Line CX", max. 85 Nm |
| Battery: | BOSCH "PowerTube 750", 750 Wh |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| System interface: | BOSCH "BRC3100" |
| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Ready 30" |
| Felge V.R.: | RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black |
| Felge H.R.: | RODI "Ready 30", 30-584, 32 holes, disc brake, easy eyelets, black |
| Spokes: | MACH 1 "PRO" |
| Front hub: | FORMULA "DC-711", 15 x 110 mm, Thru Axle |
| Rear hub: | FORMULA "EHL-148S", 12 x 148 mm Boost, Thru Axle, 6-hole |
| Front tires: | SCHWALBE "Magic Mary", 62-622 |
| Rear tires: | SCHWALBE "Magic Mary", 62-584 |
| Handle bar: | LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm |
| Stem: | LEVELNINE "Race A-Head", 1 1/8", 31.8 mm handlebar clamps, 35 mm long, 0° angle, black |
| Grips: | SQlab "70X" |
| Saddle: | FIZIK "Terra Aidon X5" |
| Seat post: | CONTEC "Drop-A-Gogo", Ø 31.6 mm, 340 mm long, 100 mm adjustment range |
| Battery Lock: | AXA "New Lock" |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 40 cm |
| Wheel size: | 29___27,5" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | SRAM |
| Shifting model: | SX Eagle |
| Brake system: | hydraulic disc brake |
| Travel: | 150 mm |
| Frame travel: | 160 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Kategorie E-Rad: | 3 |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | carbon |
| Colour: | purple |
| Colour designation: | desert matt / plum matt |
| Weight: | 25,40 kg |
| EAN | 4251971155169 |
Geometry data
M
| A - Steering tube angle: | 65° |
| B - Seat angle: | 75° |
| M | |
|---|---|
| A - Steering tube angle: | 65° |
| B - Seat angle: | 75° |
