Xyron LT 6.0 Full Suspension
olive matt / dusty yellow
5,499.95€ *
E-MOUNTAINBIKE ➜ Material: aluminium ✓ Colour: yellow ✓ Weight: 26,90 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Gears: 12-speed ✓ ➤ Discover now
Product information
"Xyron LT 6.0 Full Suspension "
Welcome to the world of long-travel e-enduro bikes! The "Xyron LT 6.0 Alu" is your perfect entry-level bike and anything but basic. With 170 mm travel at the front and 160 mm at the rear plus the 29" wheels, it really swallows up any rough terrain. The Bosch mid-motor and 800 Wh battery will get you up to speed in a relaxed manner, even when things get steeper. The 100 Nm upgrade gives you a tailwind on the toughest climbs.
The riding position? Central, efficient and ready for altitude meters: 435 mm reach and a steep seat angle ensure optimum power transfer uphill without you lifting off the front. The Shimano "XT" 12-speed drivetrain and hydraulic Disc Brakes give you precise control, even when things get rough.
The well thought-out geometry ensures balanced handling - uphill with plenty of grip and pressure on the Front Wheel, downhill stable and directionally accurate without sacrificing maneuverability. Practical: the tool mount under the top tube and hidden stand mount on the rear triangle. And with a permissible total weight of 140 kg, you are also equipped for big adventures.
The riding position? Central, efficient and ready for altitude meters: 435 mm reach and a steep seat angle ensure optimum power transfer uphill without you lifting off the front. The Shimano "XT" 12-speed drivetrain and hydraulic Disc Brakes give you precise control, even when things get rough.
The well thought-out geometry ensures balanced handling - uphill with plenty of grip and pressure on the Front Wheel, downhill stable and directionally accurate without sacrificing maneuverability. Practical: the tool mount under the top tube and hidden stand mount on the rear triangle. And with a permissible total weight of 140 kg, you are also equipped for big adventures.
Spezifikationen
| Frame: | CONWAY Fully Intube Bosch, Alu |
| Dropout: | 0347028/3 |
| Fork: | FOX "38 Rhythm" |
| Headset: | ACROS "ZS56-ZS56", Blocklock |

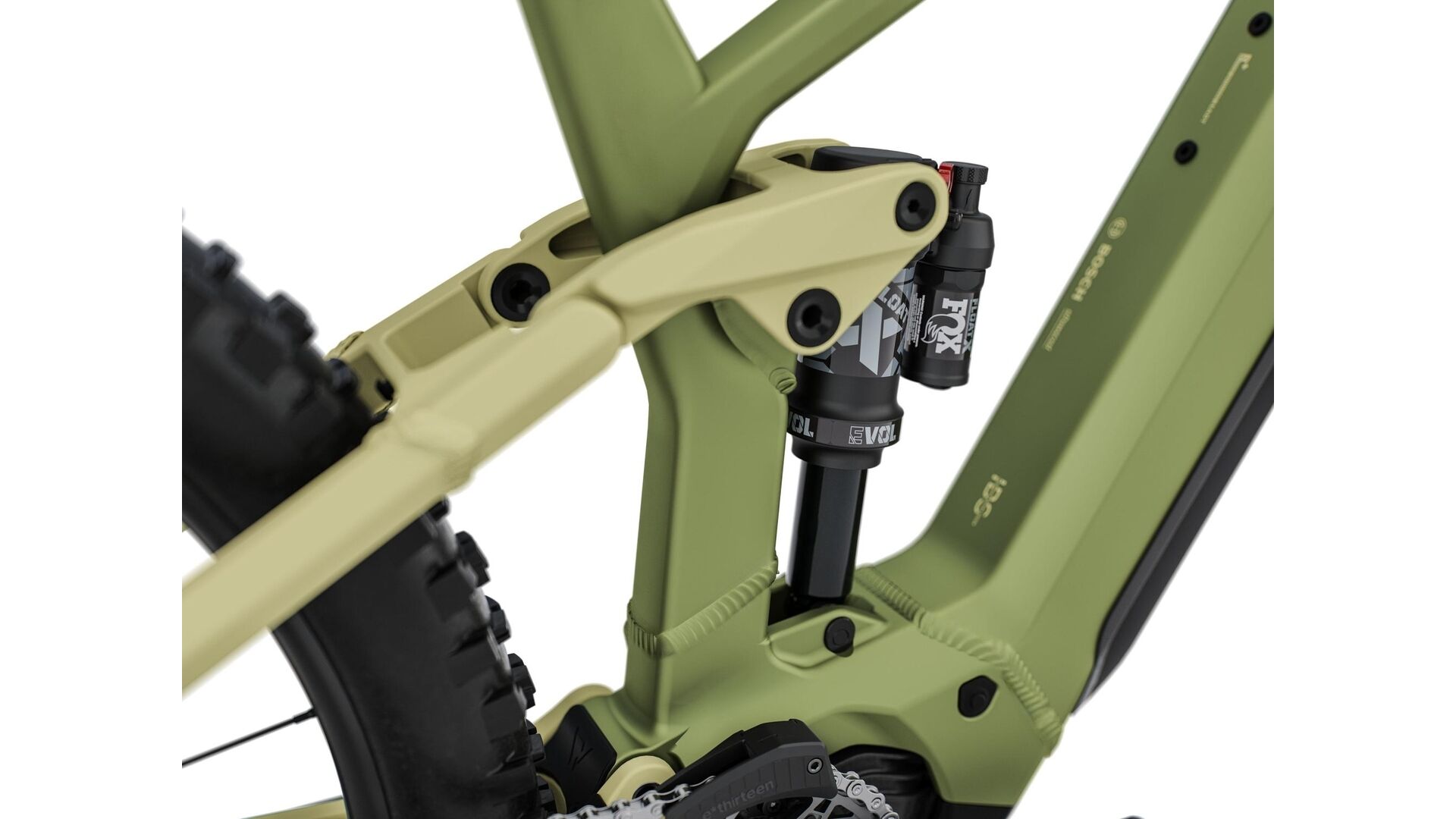

| Rear shock: | FOX "Float X Performance", 2 Pos. |
| Crank arm: | MIRANDA "Virage", 160 mm |
| Chain ring / belt ring: | E13 "Helix Core e*spec", 34 Z. |
| Bottom Bracket: | BOSCH |
| Brakes: | MAGURA "GUSTAV Elite", 4/4-Kolben |
| Brake lever: | MAGURA "GUSTAV Elite" |
| Front rotor: | MAGURA "MDR-S", 203 mm |
| Rear rotor: | MAGURA "MDR-S", 203 mm |
| Shifting lever: | SHIMANO "Deore XT" |
| Rear derailleur: | SHIMANO "Deore XT", 12speed |
| Cassette / belt sprocket: | SHIMANO "Deore", 10-51 Z. |
| Chain / belt: | SHIMANO "Deore" |

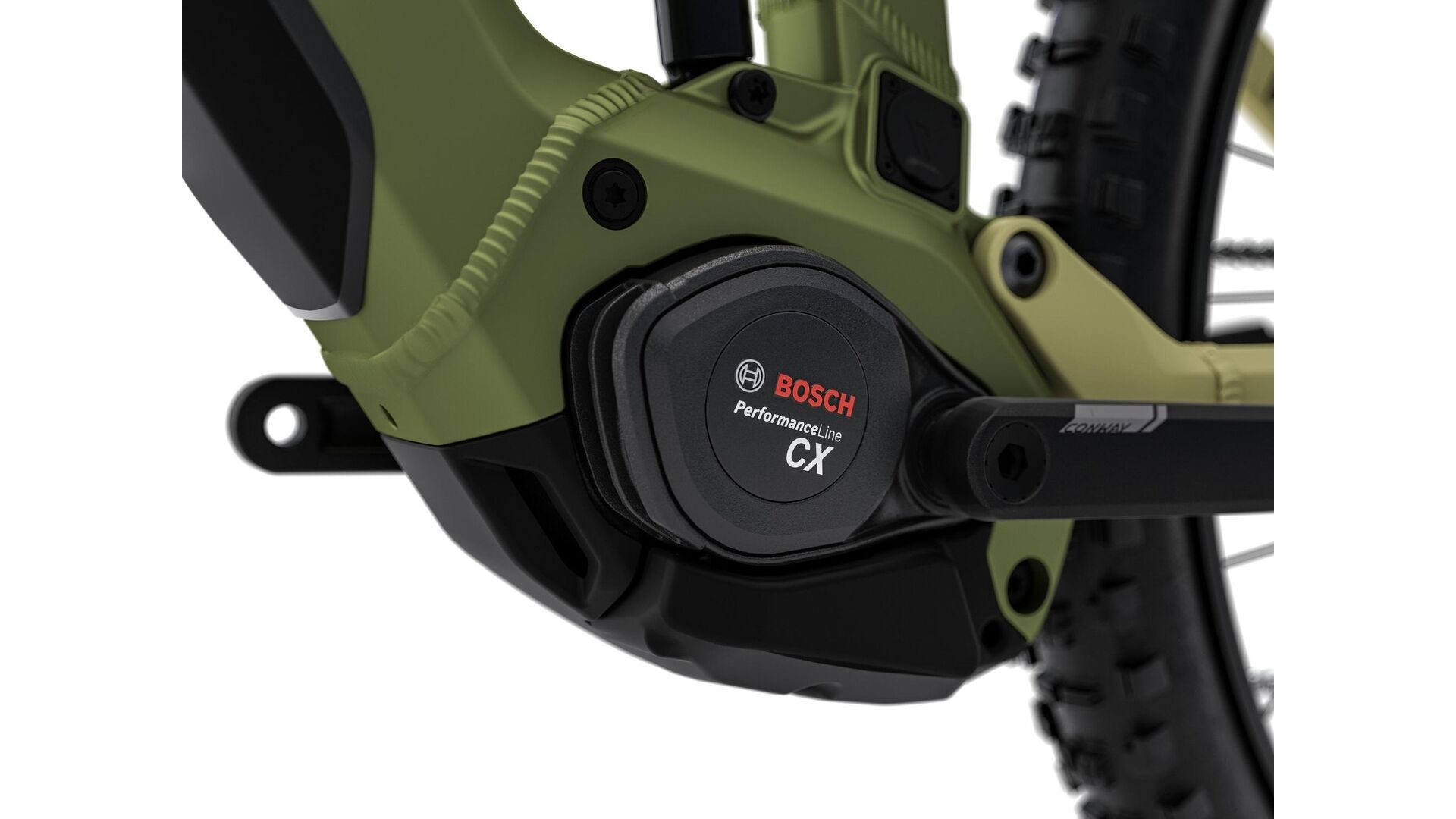

| Drive unit: | BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot |
| Charger: | Bosch 4 A, BES3 |
| Remote: | BOSCH "Mini Remote" |

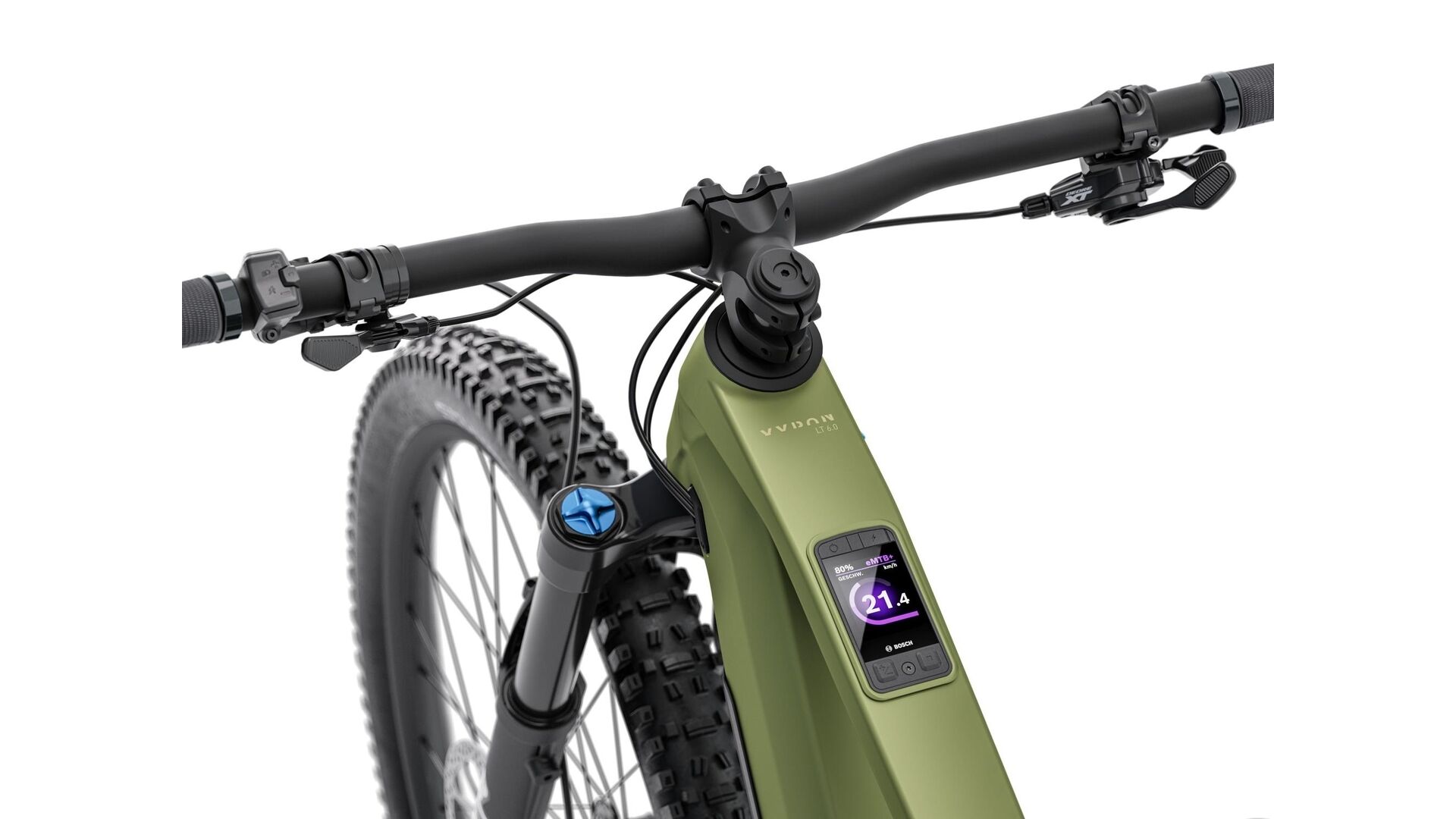

| Display: | BOSCH "Kiox 400" |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | NEWMEN "Performance 30 Base", 30-622 |
| Spokes: | SAPIM |
| Front hub: | NEWMEN "Basic", 15 x 110 mm |
| Rear hub: | NEWMEN "Basic", 12 x 148 mm, MS |
| Front tires: | SCHWALBE "Magic Mary" 62-622, Performance, TLE |
| Rear tires: | SCHWALBE "Big Betty" 62-622, Performance, TLE |
| Handle bar: | LEVEL 9 "Race e35.0", Rise 35mm, 780 mm |
| Stem: | LEVEL 9 "Race e35.0", 40mm |
| Grips: | SQLAB "70X" |
| Saddle: | SELLE ROYAL "SRX+", 145mm |
| Seat post: | LIMOTEC "D1", 31,6 mm, 125 mm |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 800 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 39 cm |
| Wheel size: | 29" |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 170 mm |
| Frame travel: | 160 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | yellow |
| Colour designation: | olive matt / dusty yellow |
| Weight: | 26,90 kg |
| EAN | 4251971176539 |
Geometry data
S
M
L
XL
| A - Seat tube: | 390 mm |
| B - Toptube: | 573 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 77° |
| F - Kettenstrebe: | 453 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 435 mm |
| I - Stack: | 622 mm |
| J - Wheel distance: | 1.236 mm |
| A - Seat tube: | 420 mm |
| B - Toptube: | 595 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 77° |
| F - Kettenstrebe: | 453 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 455 mm |
| I - Stack: | 630 mm |
| J - Wheel distance: | 1.256 mm |
| A - Seat tube: | 440 mm |
| B - Toptube: | 618 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 77° |
| F - Kettenstrebe: | 453 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 475 mm |
| I - Stack: | 644 mm |
| J - Wheel distance: | 1.276 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 641 mm |
| C - Steering tube angle: | 64° |
| D - Stem length: | 50 mm |
| E - Seat angle: | 77° |
| F - Kettenstrebe: | 453 mm |
| G - Steering tube: | 145 mm |
| H - Reach: | 495 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.296 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 390 mm | 420 mm | 440 mm | 460 mm |
| B - Toptube: | 573 mm | 595 mm | 618 mm | 641 mm |
| C - Steering tube angle: | 64° | 64° | 64° | 64° |
| D - Stem length: | 40 mm | 40 mm | 40 mm | 50 mm |
| E - Seat angle: | 77° | 77° | 77° | 77° |
| F - Kettenstrebe: | 453 mm | 453 mm | 453 mm | 453 mm |
| G - Steering tube: | 105 mm | 115 mm | 130 mm | 145 mm |
| H - Reach: | 435 mm | 455 mm | 475 mm | 495 mm |
| I - Stack: | 622 mm | 630 mm | 644 mm | 658 mm |
| J - Wheel distance: | 1.236 mm | 1.256 mm | 1.276 mm | 1.296 mm |
