Xyron ST 5.0 Full Suspension
graphit grey matt
4,999.95€ *
E-MOUNTAINBIKE ➜ Material: Aluminium ✓ Laufradgröße: 29" ✓ Gänge: 12-Gang ✓ Antriebsvariante: Mittelmotor ✓ Unterstützung: bis 25 km/h ✓ ➤ Jetzt entdecken
Product information
"Xyron ST 5.0 Full Suspension "

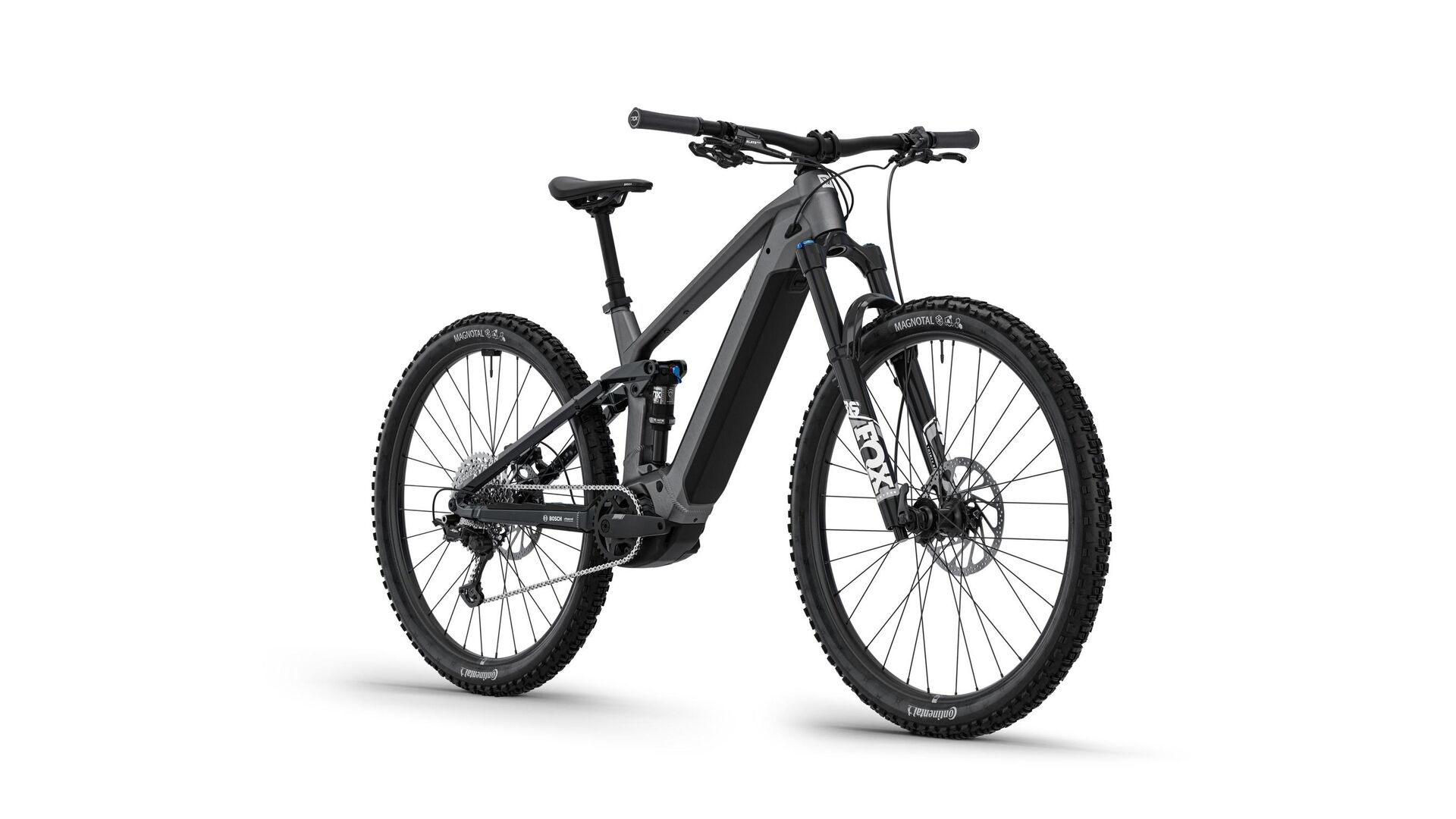

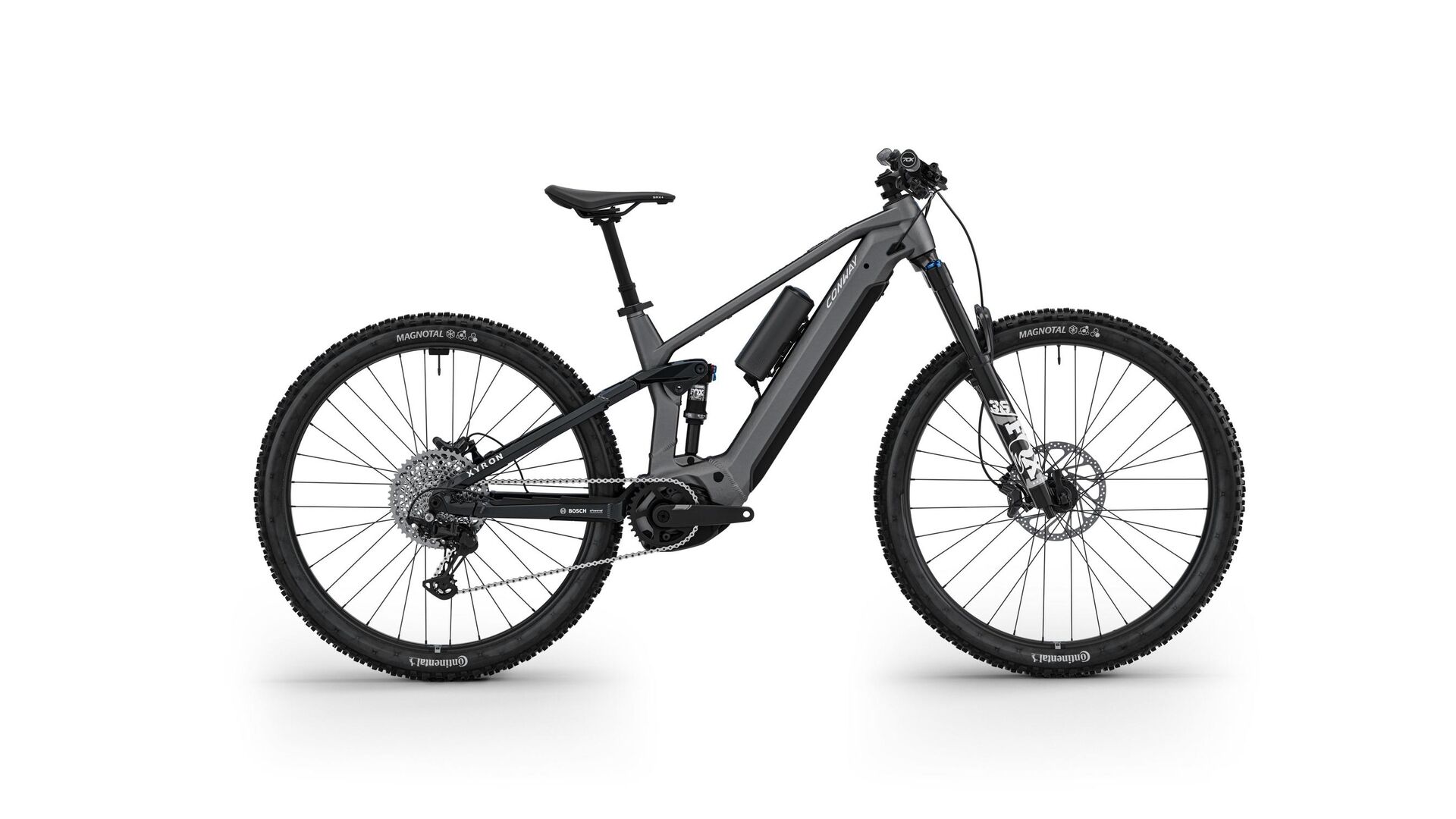

With our "Xyron ST 5.0 Alu", every trail becomes a playground: 150 mm front and rear suspension travel, 29" wheels and a frame geometry that places you firmly and centrally on the bike thanks to the balance of reach, seat and steering angle - both uphill and downhill. The Bosch mid-motor with 800 Wh Battery provides powerful support up to 25 km/h, while the high-quality Shimano "XT" 12-speed gears ensure precise gear changes. Stable, hydraulic Disc Brakes bring you to a safe stop at all times.
The beautifully designed aluminum frame with a permissible total weight of 140 kg offers you complete freedom on this MTB - even for longer tours. Practical: the tool mount under the top tube and the hidden kickstand mount on the rear triangle. With a 390 mm seat tube, 570 mm top tube and 452 mm Chain Stay, the bike is perfect for dynamic handling and control in any position.
The beautifully designed aluminum frame with a permissible total weight of 140 kg offers you complete freedom on this MTB - even for longer tours. Practical: the tool mount under the top tube and the hidden kickstand mount on the rear triangle. With a 390 mm seat tube, 570 mm top tube and 452 mm Chain Stay, the bike is perfect for dynamic handling and control in any position.
Spezifikationen
| Frame: | CONWAY Fully Intube Bosch, Alu |
| Dropout: | 0347028/3 |
| Fork: | FOX "36 Rhythm" |
| Headset: | ACROS "ZS56-ZS56", Blocklock |

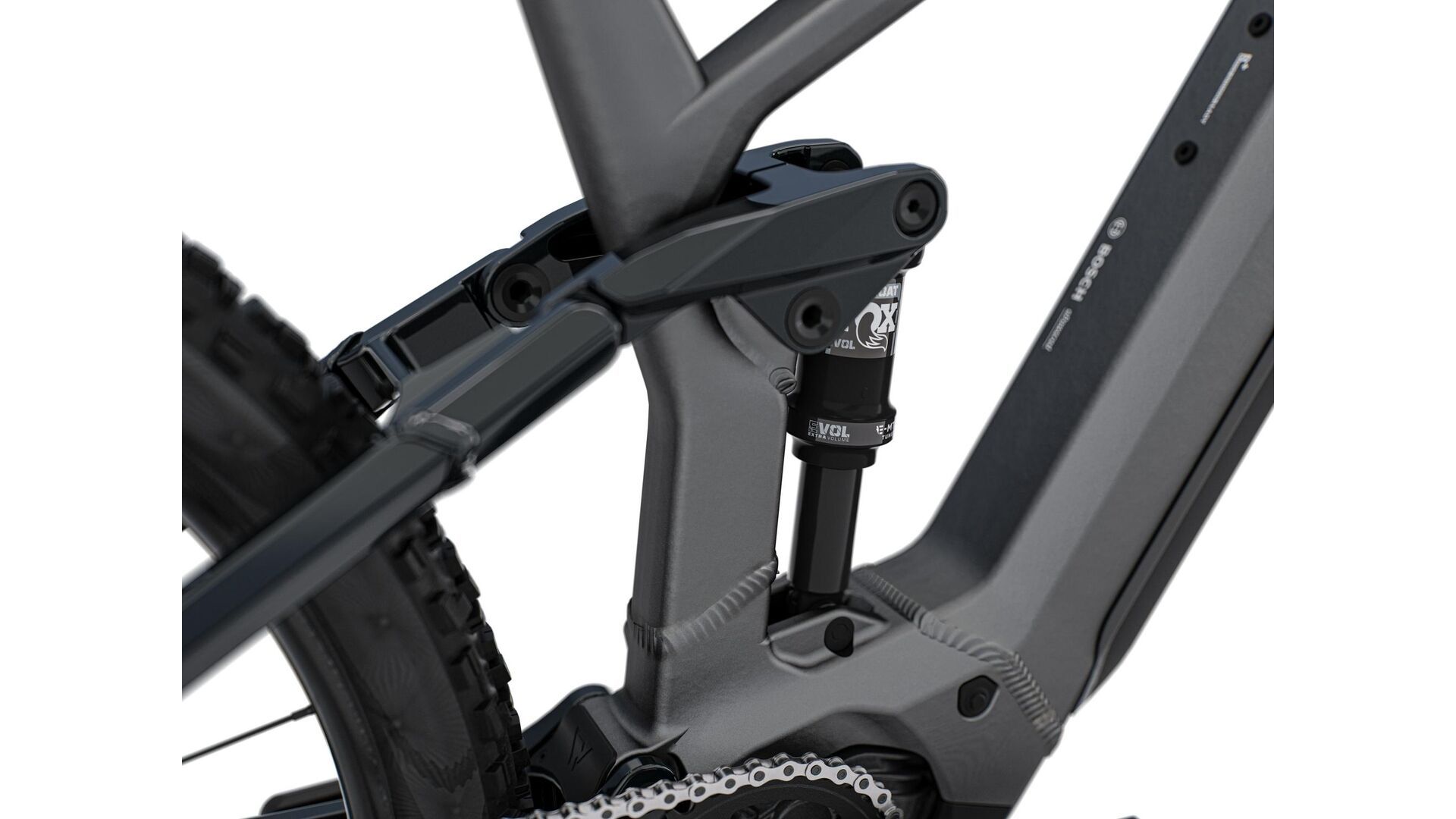

| Rear shock: | FOX "Float Rhythm", 2 Pos. |
| Crank arm: | MIRANDA "Virage", 160 mm |
| Chain ring / belt ring: | MIRANDA "Virage", 34 Z. |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "SLATE EVO HD-M807", 4/4-Kolben |
| Brake lever: | TEKTRO "SLATE EVO HD-M807" |
| Front rotor: | TEKTRO "RS01E", 203 mm |
| Rear rotor: | TEKTRO "RS01E", 203 mm |
| Shifting lever: | SHIMANO "Deore XT" |
| Rear derailleur: | SHIMANO "Deore XT", 12speed |
| Cassette / belt sprocket: | SHIMANO "Deore", 10-51 Z. |
| Chain / belt: | SHIMANO "Deore" |
| Drive unit: | BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot |
| Charger: | Bosch 4 Ah, BES3 |
| Remote: | BOSCH "Mini Remote" |
| Display: | BOSCH "Kiox 400" |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | NEWMEN "Performance 30 Base", 30-622 |
| Spokes: | SAPIM |
| Front hub: | NEWMEN "Basic", 15 x 110 mm |
| Rear hub: | NEWMEN "Basic", 12 x 148 mm, MS |
| Front tires: | CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE |
| Rear tires: | CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE |

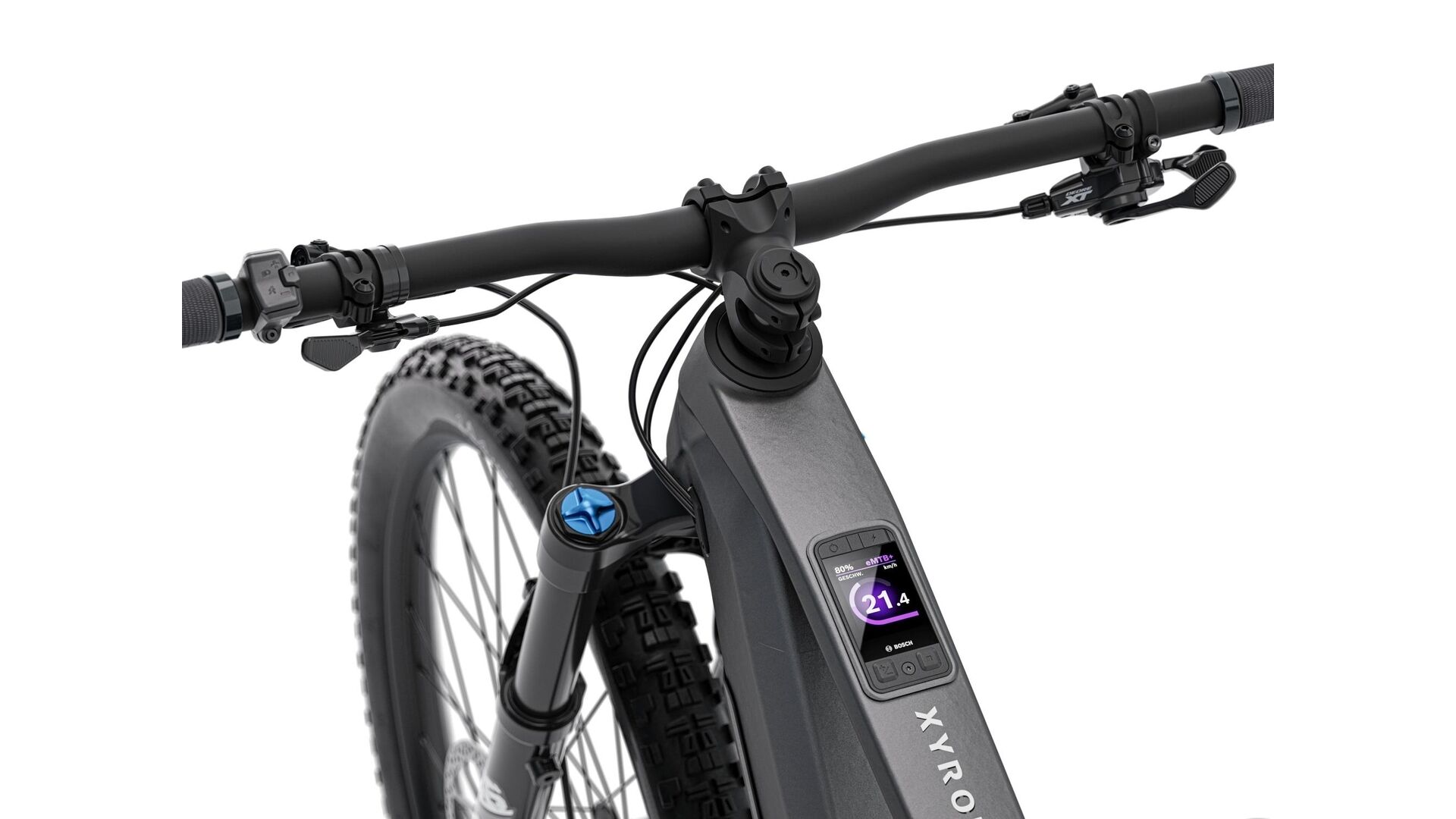

| Handle bar: | LEVEL 9 "Race e35.0", Rise 20mm, 780 mm |
| Stem: | LEVEL 9, "Race e35.0", 40mm |
| Grips: | SQLAB "70X" |
| Saddle: | SELLE ROYAL "SRX+", 145mm |
| Seat post: | LIMOTEC "D1", 31,6 mm, 125 mm |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 800 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 39 cm |
| Wheel size: | 29" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 150 mm |
| Frame travel: | 150 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | black |
| Colour designation: | graphit grey matt |
| EAN | 4251971176379 |
Geometry data
S
M
L
XL
| A - Seat tube: | 390 mm |
| B - Toptube: | 570 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 452 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 445 mm |
| I - Stack: | 614 mm |
| J - Wheel distance: | 1.229 mm |
| A - Seat tube: | 420 mm |
| B - Toptube: | 592 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 452 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 465 mm |
| I - Stack: | 623 mm |
| J - Wheel distance: | 1.249 mm |
| A - Seat tube: | 440 mm |
| B - Toptube: | 615 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 40 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 452 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 485 mm |
| I - Stack: | 637 mm |
| J - Wheel distance: | 1.269 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 638 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 50 mm |
| E - Seat angle: | 78° |
| F - Kettenstrebe: | 452 mm |
| G - Steering tube: | 145 mm |
| H - Reach: | 505 mm |
| I - Stack: | 651 mm |
| J - Wheel distance: | 1.289 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 390 mm | 420 mm | 440 mm | 460 mm |
| B - Toptube: | 570 mm | 592 mm | 615 mm | 638 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° |
| D - Stem length: | 40 mm | 40 mm | 40 mm | 50 mm |
| E - Seat angle: | 78° | 78° | 78° | 78° |
| F - Kettenstrebe: | 452 mm | 452 mm | 452 mm | 452 mm |
| G - Steering tube: | 105 mm | 115 mm | 130 mm | 145 mm |
| H - Reach: | 445 mm | 465 mm | 485 mm | 505 mm |
| I - Stack: | 614 mm | 623 mm | 637 mm | 651 mm |
| J - Wheel distance: | 1.229 mm | 1.249 mm | 1.269 mm | 1.289 mm |
