Cairon S 1.0 Hardtail, diamond
2,699.95€ *
E-MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 24,90 kg ✓ Brake system: hydraulic disc brake ✓ Gears: 9-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information
"Cairon S 1.0 Hardtail, diamond "

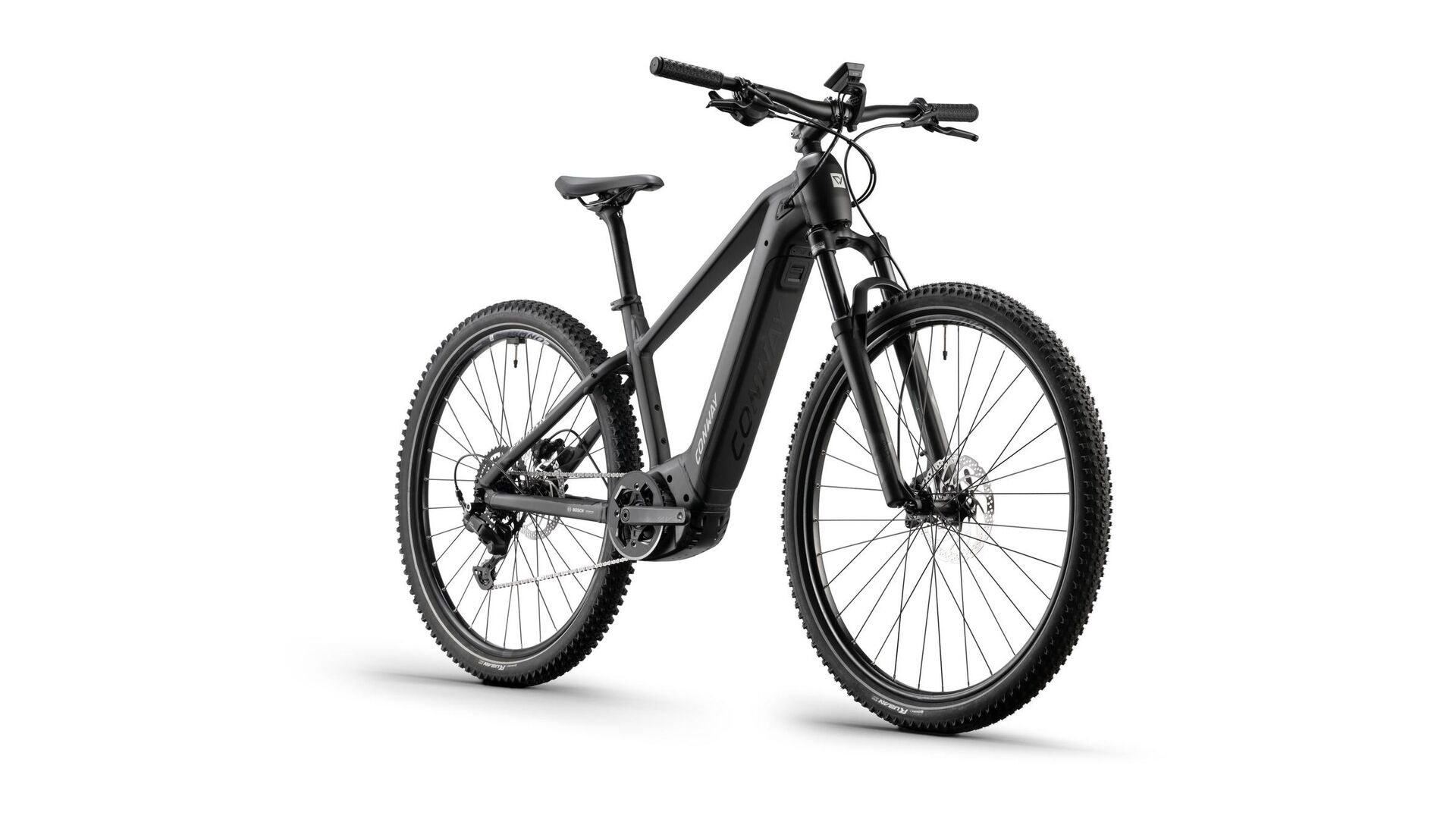

The Cairon S 1.0 gives you a powerful, comfortable and safe start to e-mobility. The balanced geometry ensures stable handling and an active riding position - ideal for relaxed tours on forest trails, gravel tracks or through the city.
The combination of 29" wheels (depending on the frame size) and 120 mm travel on the RST Fork ensures that you can roll over obstacles with confidence. The Bosch Performance CX Gen. 4 engine provides you with reliable support, complemented by an integrated 625 Wh Battery and the smart Bosch Kiox 300 Display for full control on the go.
The Shimano 9-speed derailleur ensures precise gear changes, while 180 mm hydraulic Disc Brakes guarantee safe braking performance at all times. Robust Schwalbe Tough Tom tires offer you grip and stability on any surface.
Thanks to the high-quality aluminum frame and the well thought-out equipment, the Cairon S 1.0 is a reliable partner - whether for the daily commute to work, spontaneous excursions or sporty weekend tours.
The combination of 29" wheels (depending on the frame size) and 120 mm travel on the RST Fork ensures that you can roll over obstacles with confidence. The Bosch Performance CX Gen. 4 engine provides you with reliable support, complemented by an integrated 625 Wh Battery and the smart Bosch Kiox 300 Display for full control on the go.
The Shimano 9-speed derailleur ensures precise gear changes, while 180 mm hydraulic Disc Brakes guarantee safe braking performance at all times. Robust Schwalbe Tough Tom tires offer you grip and stability on any surface.
Thanks to the high-quality aluminum frame and the well thought-out equipment, the Cairon S 1.0 is a reliable partner - whether for the daily commute to work, spontaneous excursions or sporty weekend tours.
Spezifikationen
| Frame: | CONWAY Intube Bosch, Alu |
| Dropout: | 02811750 |
| Fork: | RST "Blaze ML", 120 mm |
| Headset: | ZS56 / ZS56, Blocklock |
| Crank arm: | MIRANDA "Classic Gen4", 165 mm |
| Chain ring / belt ring: | MIRANDA "Gen4", 36 Z., w CG |
| Brakes: | SHIMANO "BR-MT201" |
| Brake lever: | SHIMANO "BL-MT201" |
| Front rotor: | SHIMANO "SM-RT30", 180 mm |
| Rear rotor: | SHIMANO "SM-RT30", 180 mm |
| Shifting lever: | SHIMANO "CUES SL-U4000-9R" |

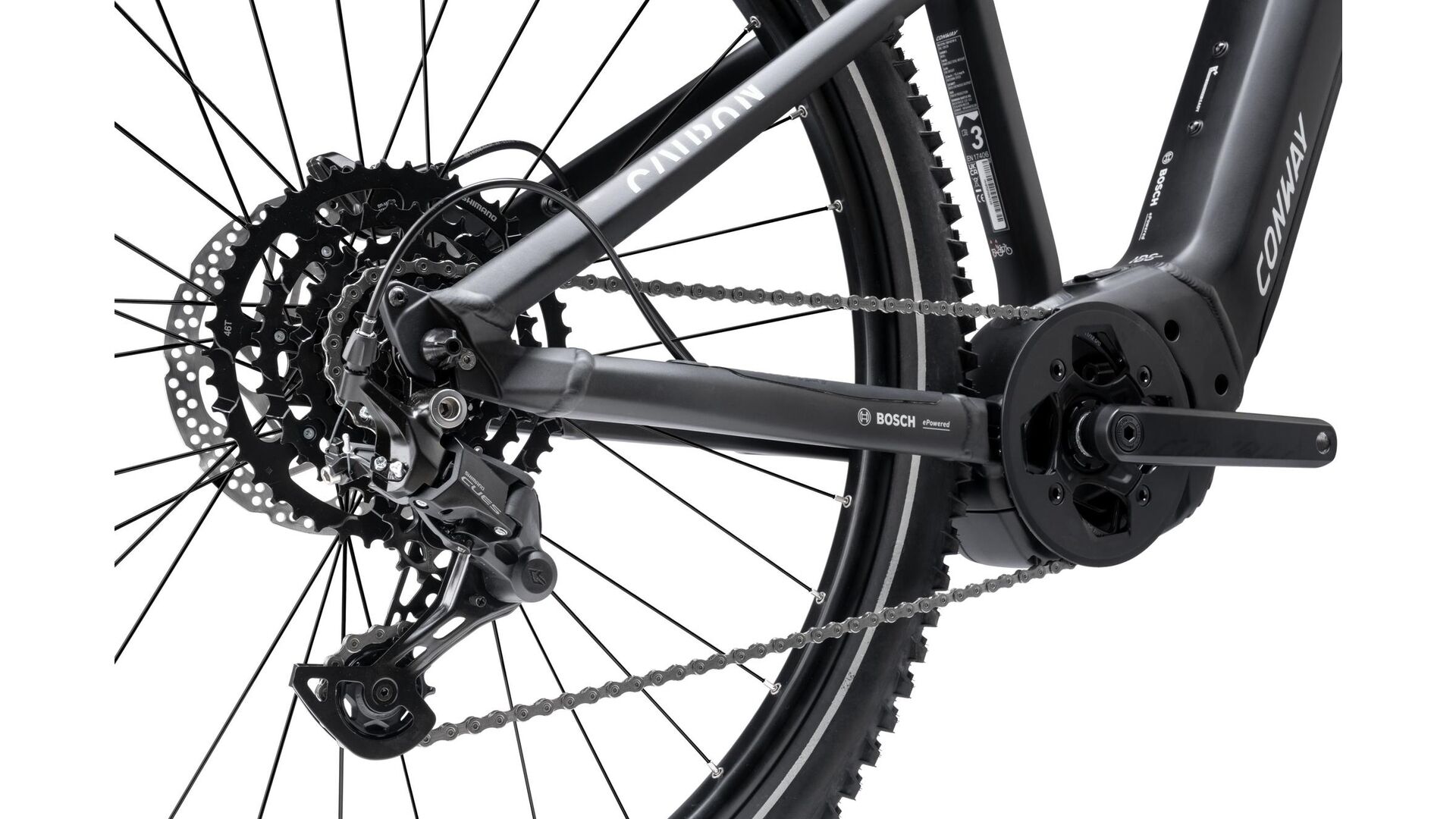

| Rear derailleur: | SHIMANO "Cues RD-U4000", 9-speed |
| Cassette / belt sprocket: | SHIMANO "CS-LG300-9", 11-46 Z. |
| Chain / belt: | SHIMANO "CN-LG500" |

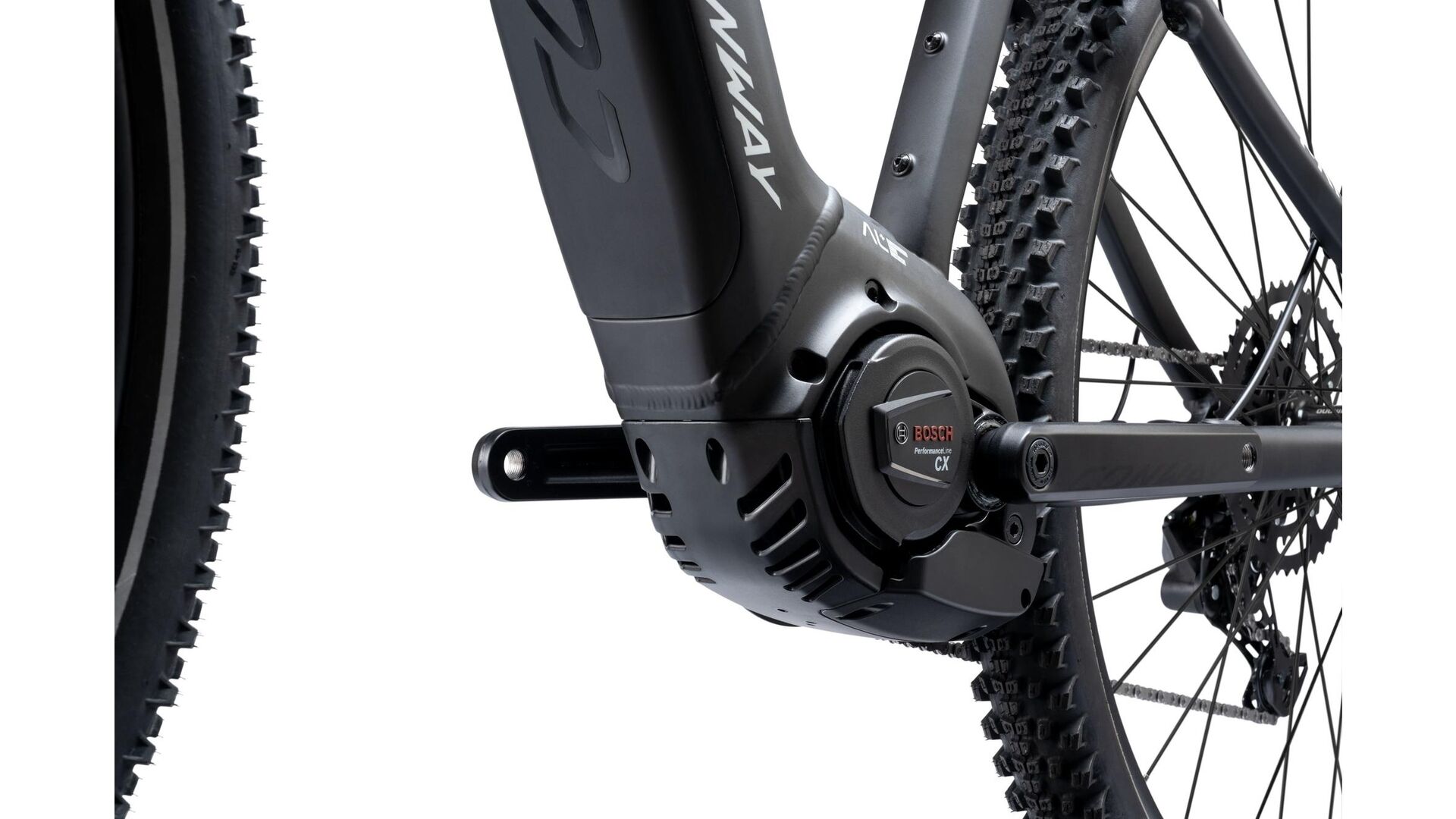

| Drive unit: | BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh, horizontal |
| Charger: | Bosch 4 A, BES3 |
| Remote: | BOSCH "Mini Remote" |
| System interface: | Bosch "System Controller" |

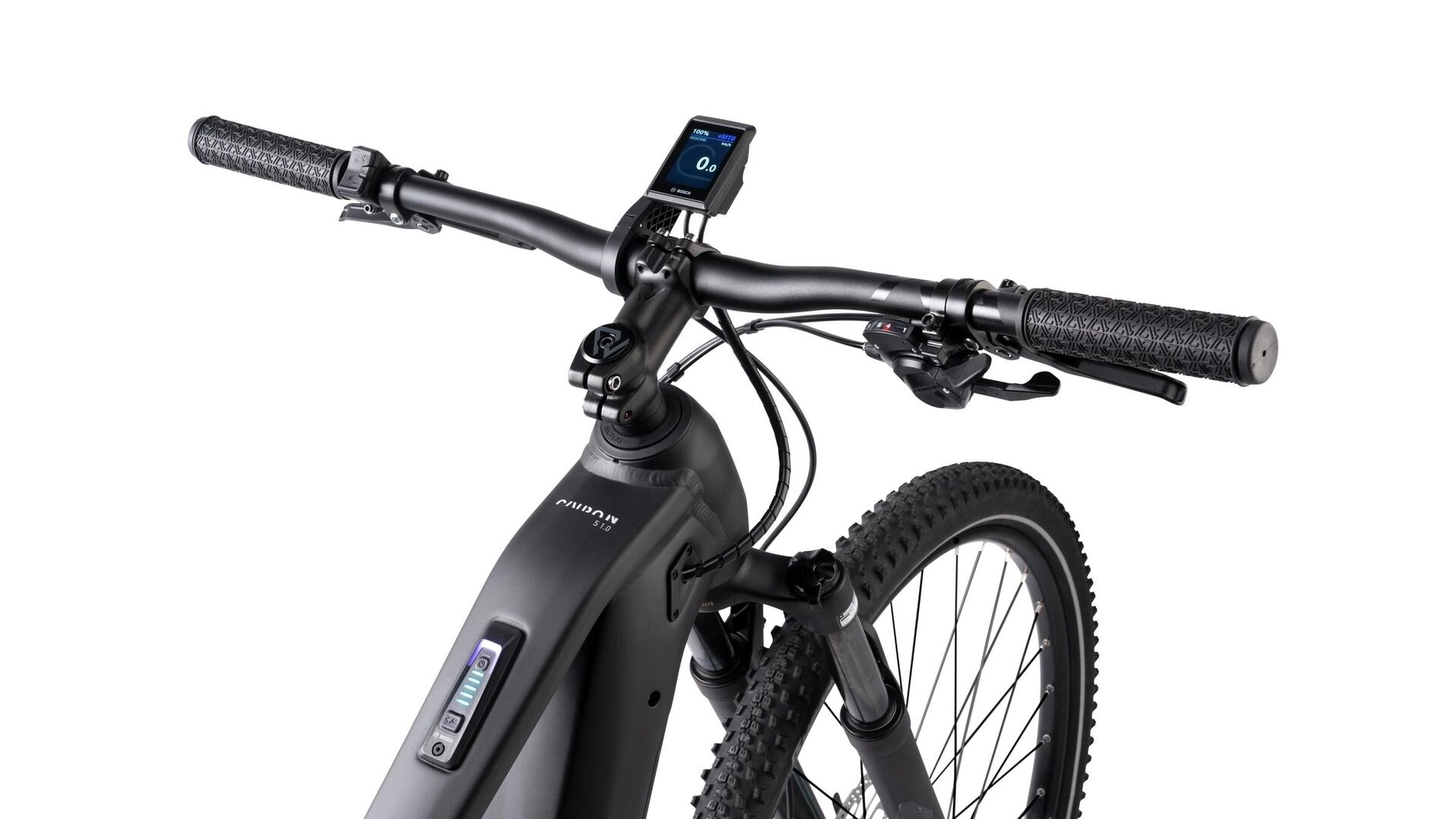

| Display: | BOSCH "Kiox 300" |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Blackrock" |
| Spokes: | MACH 1 |
| Front hub: | SHIMANO "HB-TX505" QR |
| Rear hub: | SHIMANO "FH-TX505" QR |
| Front tires: | CONTINENTAL "Ruban", 54-584 |
| Rear tires: | CONTINENTAL "Ruban", 54-584 |
| Handle bar: | CONWAY "Riser", 31,8, 720 mm |
| Stem: | CONWAY, 31,8 mm, 75 mm |
| Grips: | CONWAY "Sport" |
| Saddle: | SELLE ROYAL "Athletic Ergo", He |
| Seat post: | CONWAY Patent, 31,6 mm, 350 mm |
| Pedals: | VP "VPE-506" |
Technical data
| Category: | Hardtail |
| E-bike: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 27,5" |
| Shifting type: | derailleur |
| Gears: | 9-speed |
| Transmission: | 1x 9-fach |
| Circuit brand: | Shimano |
| Shifting model: | Cues |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Features: | suspension fork, electronic sliding aid |
| Kategorie E-Rad: | 3 |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | grey |
| Colour designation: | black matt / light grey matt |
| Weight: | 24,90 kg |
| EAN | 4251971183759 |
Geometry data
S
M
L
XL
XXL
| A - Seat tube: | 410 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 401 mm |
| I - Stack: | 619 mm |
| J - Wheel distance: | 1.135 mm |
| A - Seat tube: | 450 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 426 mm |
| I - Stack: | 649 mm |
| J - Wheel distance: | 1.174 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 445 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 468 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.220 mm |
| A - Seat tube: | 570 mm |
| B - Toptube: | 660 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 100 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 487 mm |
| I - Stack: | 667 mm |
| J - Wheel distance: | 1.243 mm |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A - Seat tube: | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| B - Toptube: | 575 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| C - Steering tube angle: | 67° | 67° | 67° | 67° | 67° |
| D - Stem length: | 75 mm | 75 mm | 90 mm | 90 mm | 100 mm |
| E - Seat angle: | 75° | 75° | 75° | 75° | 75° |
| F - Kettenstrebe: | 440 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| G - Steering tube: | 130 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| H - Reach: | 401 mm | 426 mm | 445 mm | 468 mm | 487 mm |
| I - Stack: | 619 mm | 649 mm | 658 mm | 658 mm | 667 mm |
| J - Wheel distance: | 1.135 mm | 1.174 mm | 1.197 mm | 1.220 mm | 1.243 mm |
