Cairon S 2.0 625 SE Hardtail, trapeze
3,649.95€ *
E-MOUNTAINBIKE ➜ Material: aluminium ✓ Weight: 24,30 kg ✓ Brake system: hydraulic disc brake ✓ Gears: 9-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information
"Cairon S 2.0 625 SE Hardtail, trapeze "

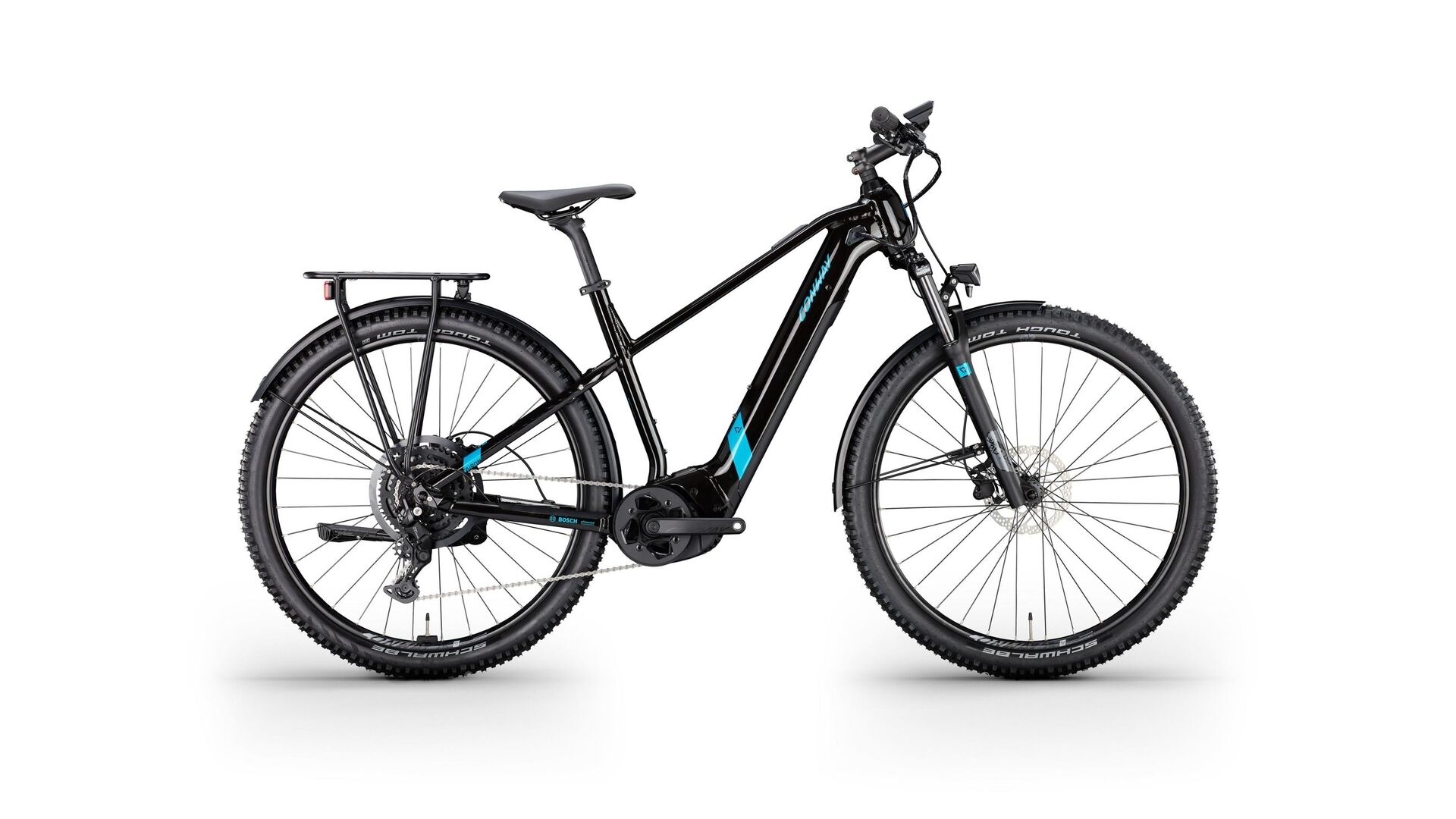

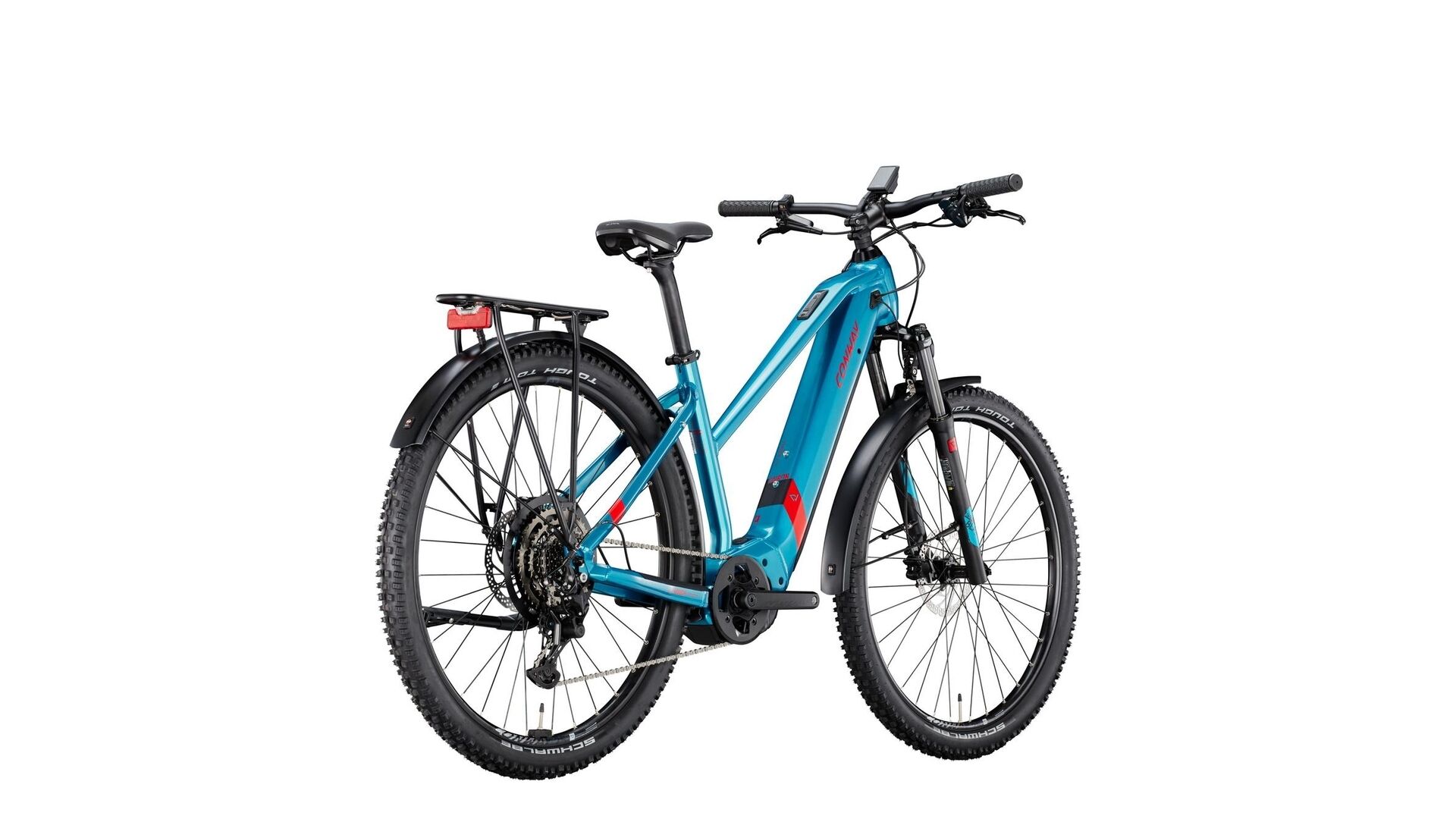

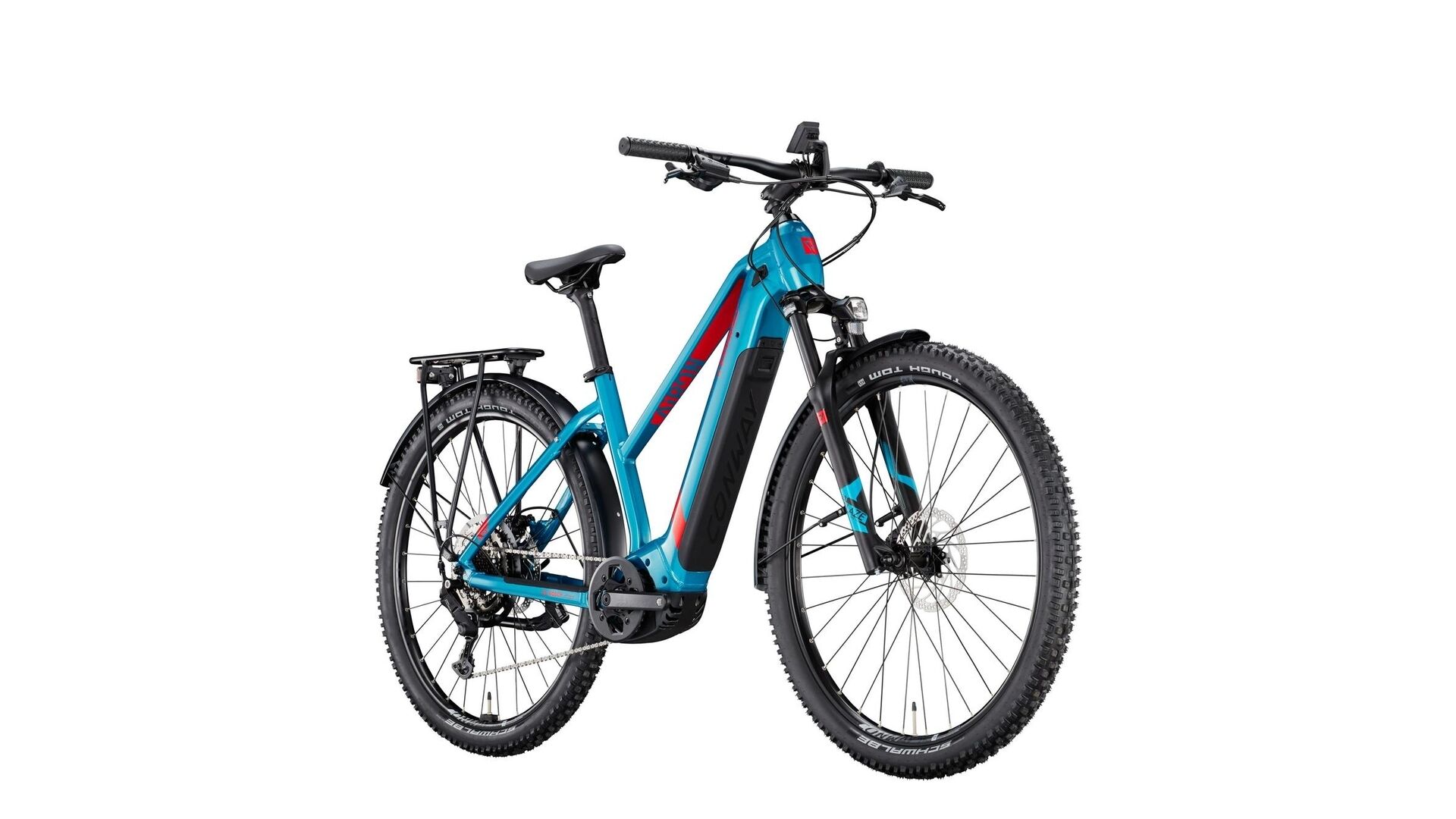

Are you looking for an e-bike that is a reliable companion both in everyday life and on excursions into nature? The "Cairon S 2.0 625 SE" offers you the versatility of an e-bike and takes you effortlessly to your destination. With its agile 27.5" or smooth-running 29" wheels, lively geometry and a pleasant ride feel, it ensures a lot of riding fun on any terrain!
Driven by a Bosch mid-motor, the "Cairon S 2.0 625 SE" offers support up to 25 km/h, while the powerful 625 Wh Battery gives you enough range for longer rides. The 1x 9 derailleur gears from Shimano ensure simple and precise gear changes so that you can concentrate fully on the road or the trail.
The hydraulic Disc Brakes guarantee reliable braking power, whatever the conditions. With a fork travel of 120 mm, the bike offers additional comfort on uneven trails, while the electronic Pushing Help helps you to move the bike effortlessly when you need to.
Last but not least, the permissible total weight of 130 kg makes the "Cairon S 2.0 625 SE" robust and resilient, making it ideal for everyday use and spontaneous excursions.
Driven by a Bosch mid-motor, the "Cairon S 2.0 625 SE" offers support up to 25 km/h, while the powerful 625 Wh Battery gives you enough range for longer rides. The 1x 9 derailleur gears from Shimano ensure simple and precise gear changes so that you can concentrate fully on the road or the trail.
The hydraulic Disc Brakes guarantee reliable braking power, whatever the conditions. With a fork travel of 120 mm, the bike offers additional comfort on uneven trails, while the electronic Pushing Help helps you to move the bike effortlessly when you need to.
Last but not least, the permissible total weight of 130 kg makes the "Cairon S 2.0 625 SE" robust and resilient, making it ideal for everyday use and spontaneous excursions.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, aluminum, trapezoid, 37cm |
| Dropout: | CONWAY "V1" for Cairon QR |
| Fork: | RST "Blaze ML", 120 mm travel, QR |
| Headset: | GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40 |
| Crank arm: | MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black |
| Chain ring / belt ring: | MIRANDA, 36 teeth |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M280" |
| Bremse V.R.: | TEKTRO "HD-M280", Post Mount |
| Bremse H.R.: | TEKTRO Disc Brake "HD-M280", hydraulic, 2 pistons, for 1.8 mm brake rotors |
| Brake lever: | TEKTRO "HD-M280" |
| Front rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Rear rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Shifting lever: | SHIMANO "Cues SL-U4000" |

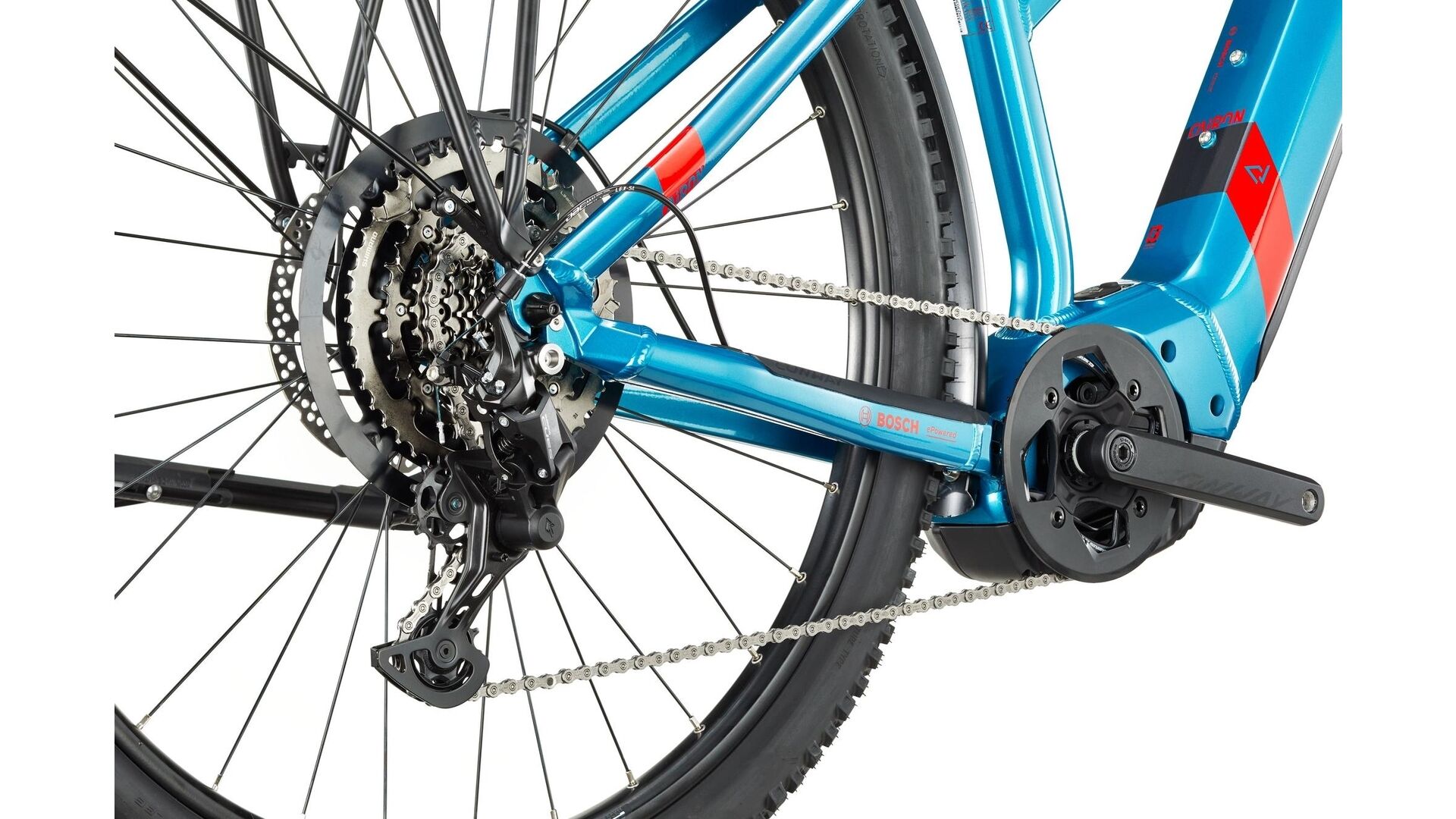

| Rear derailleur: | SHIMANO "Cues RD-U4000" |
| Cassette / belt sprocket: | SHIMANO "Cues CS-LG300", LINKGLIDE, 11-46 teeth |
| Chain / belt: | SHIMANO "CN-LG500" |

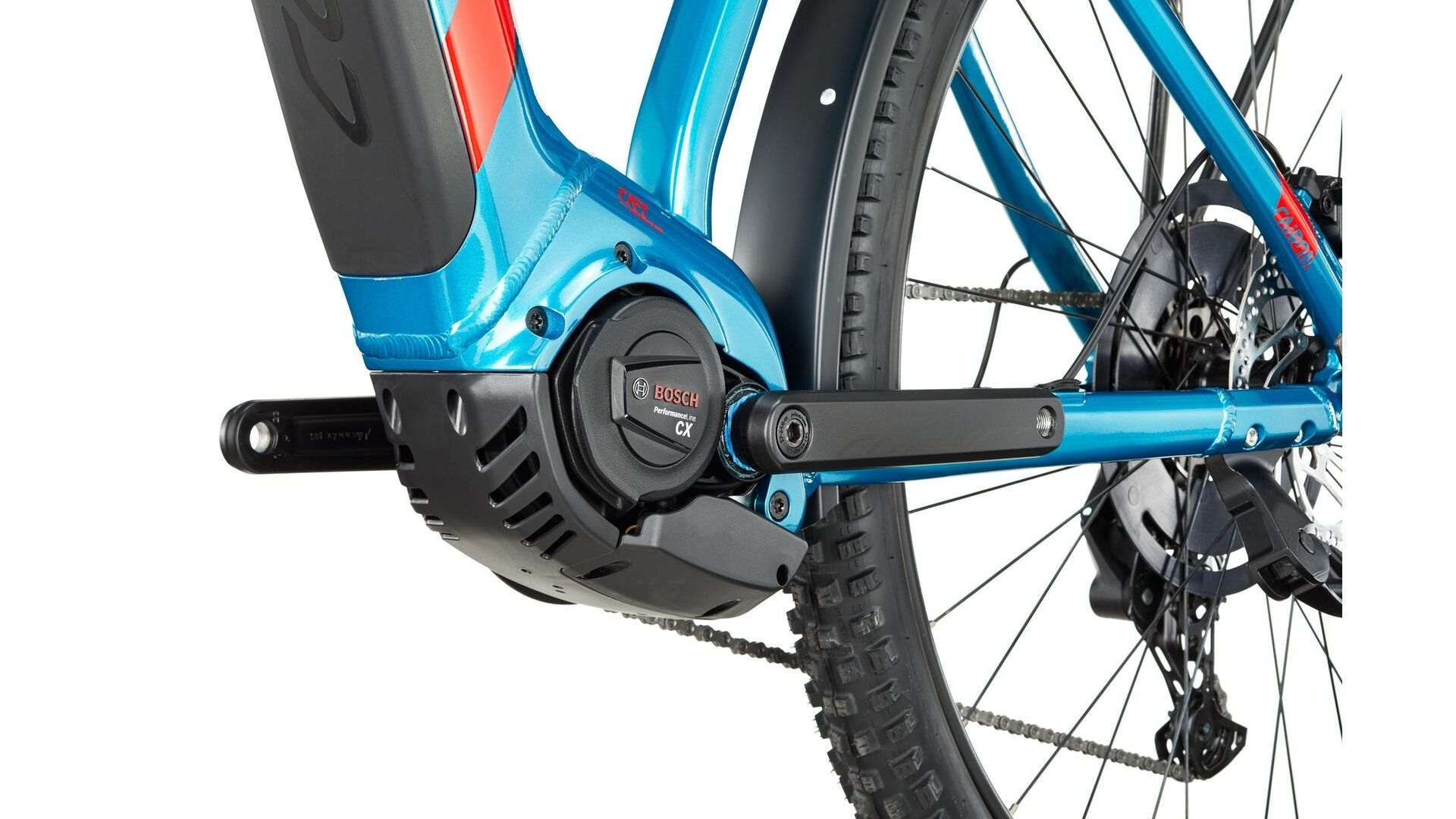

| Drive unit: | BOSCH "Performance Line CX", max. 85 Nm |
| Battery: | BOSCH "PowerTube 625", 625 Wh |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| System interface: | BOSCH "BRC3100" |

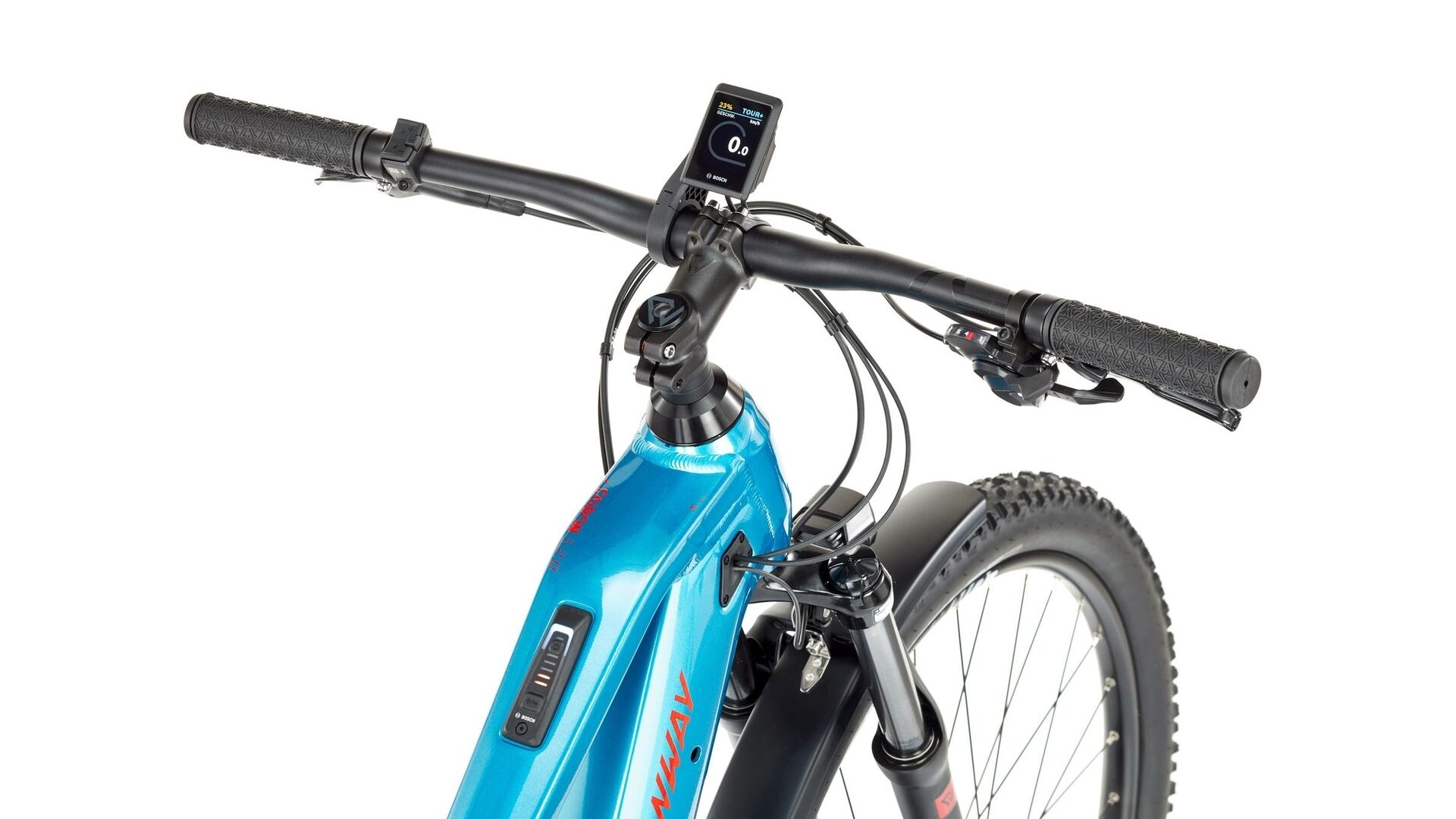

| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Blackrock 25", 32 Loch, geöst, Tubeless Ready |
| Spokes: | MACH 1 |
| Front hub: | SHIMANO "Tourney TX HB-TX505", Center Lock, QR |
| Rear hub: | SHIMANO "Tourney TX FH-TX505", Center Lock, QR |
| Front tires: | SCHWALBE "Tough Tom", 60-584 |
| Rear tires: | SCHWALBE "Tough Tom", 60-584 |
| Handle bar: | CONWAY "HB-RB11L", 720 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm |
| Stem: | CONWAY, 1 1/8", 31,8mm handlebar clamp, 75mm long, angle 7°, black |
| Grips: | CONWAY "Sport", 130 mm, black |
| Saddle: | Selle Royal "Vivo", Athletic |
| Seat post: | CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset |
| Mud Guards: | CONTEC "DLUX 50 E+", 50 lux |
| Carrier: | atranvelo "Commute Pro" |
| Front light: | CONTEC "DLUX 50 E+", 50 lux |
| Tail light: | CONTEC "TL-335 E" |
| Battery Lock: | AXA "New Lock" |
| Kickstand: | URSUS "R81 - Wave Rear" |
| Pedals: | VP COMPONENTS "VPE-506" |
Technical data
| Category: | Hardtail |
| E-bike: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | trapeze |
| Frame size: | XS |
| Frame height: | 37 cm |
| Wheel size: | 27" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 9-speed |
| Transmission: | 1x 9-fach |
| Circuit brand: | Shimano |
| Shifting model: | Cues |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Features: | suspension fork, electronic sliding aid |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | red |
| Colour designation: | topaz metallic / red metallic |
| Weight: | 24,30 kg |
| EAN | 4251971168879 |
Geometry data
XS
S
M
L
XL
| A - Seat tube: | 370 mm |
| B - Toptube: | 555 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 379 mm |
| I - Stack: | 619 mm |
| J - Wheel distance: | 1.113 mm |
| A - Seat tube: | 410 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 401 mm |
| I - Stack: | 619 mm |
| J - Wheel distance: | 1.135 mm |
| A - Seat tube: | 450 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 120 mm |
| H - Reach: | 422 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.175 mm |
| A - Seat tube: | 490 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 445 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 468 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.220 mm |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A - Seat tube: | 370 mm | 410 mm | 450 mm | 490 mm | 530 mm |
| B - Toptube: | 555 mm | 575 mm | 600 mm | 620 mm | 640 mm |
| C - Steering tube angle: | 67° | 67° | 67° | 67° | 67° |
| D - Stem length: | 75 mm | 75 mm | 75 mm | 90 mm | 90 mm |
| E - Seat angle: | 74° | 74° | 75° | 75° | 75° |
| F - Kettenstrebe: | 440 mm | 440 mm | 455 mm | 455 mm | 455 mm |
| G - Steering tube: | 130 mm | 130 mm | 120 mm | 130 mm | 130 mm |
| H - Reach: | 379 mm | 401 mm | 422 mm | 445 mm | 468 mm |
| I - Stack: | 619 mm | 619 mm | 658 mm | 658 mm | 658 mm |
| J - Wheel distance: | 1.113 mm | 1.135 mm | 1.175 mm | 1.197 mm | 1.220 mm |
