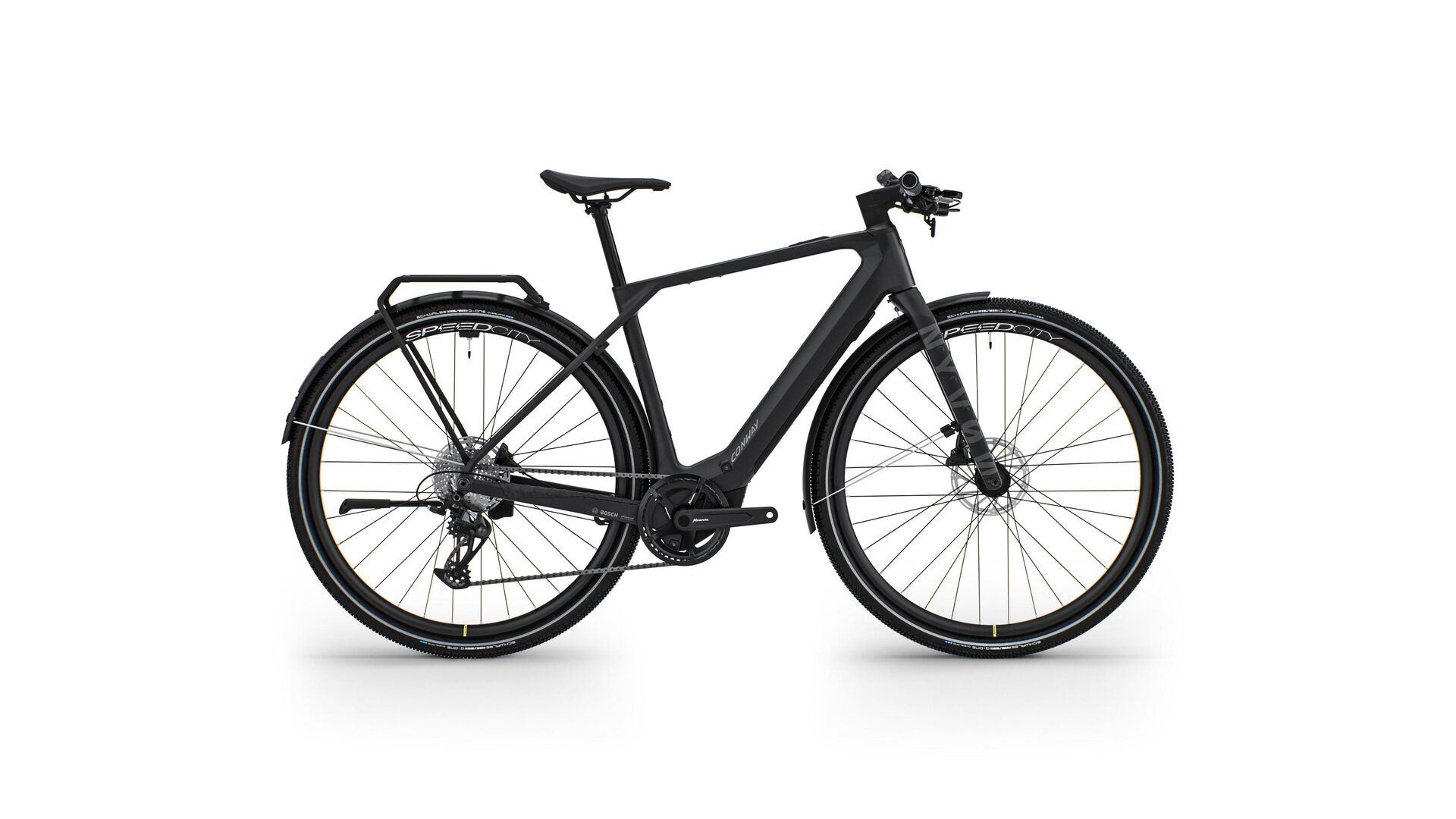

Nyvon 9.0 allroad

4,399.95€ *
Find frame size
4,399.95€ *

E-GRAVEL & COMMUTE ➜ Material: carbon ✓ Weight: 15,20 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251971149762
  • Product information "Nyvon 9.0 allroad "
    Arrive in style! Thanks to the Bosch SX motor, you get tailwind where you need it - and take the fear out of long distances or steep sections. Our "NYVON" offers the perfect synthesis of e-bike and purist gravel bike, having a fast carbon chassis with just the right amount of power you need. Precise, accurate handling, a comfortable, sporty riding position and directional stability ensure a well-rounded riding experience on gravel, road and all routes in between. If your tour takes you from dawn to dusk, you already have a powerful front light on board to illuminate your route properly. The "NYVON" also offers 5 mounting points for luggage and a kickstand mount for direct attachment to the rear triangle. The control unit of your Bosch is positioned centrally on the top tube, which you can also operate from the handlebars using the easy to reach mini-remote.
    Spezifikationen
    Frame: CONWAY E-Gravel Intube Bosch, Carbon
    Dropout: 0347028/3
    Fork: CARBON "Gravel Disc"
    Headset: ACROS "IS52 / IS52 ICR"
    Crank arm: MIRANDA "Omega", 165 mm
    Chain ring / belt ring: MIRANDA "Alloy One Piece", 42 Z.
    Bottom Bracket: BOSCH
    Brakes: SRAM "Apex"
    Brake lever: SRAM "Apex"
    Front rotor: SRAM "Centerline", 160 mm, Centerlock
    Rear rotor: SRAM "Centerline", 160 mm, Centerlock
    Shifting lever: SRAM "Apex"
    Rear derailleur: SRAM "Apex XPLR", 12speed
    Cassette / belt sprocket: SRAM "PG 1231", 11-44 Z.
    Chain / belt: SRAM "Apex"
    Drive unit: BOSCH Mittelmotor "Performance SX", 36 V, 250 W
    Battery: BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
    Charger: Bosch 2 Ah
    Remote: BOSCH "BRC3310"
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: MAVIC
    Spokes: MAVIC
    Front hub: MAVIC "Allroad 1 CL", 12 x 100 mm
    Rear hub: MAVIC "Allroad 1 CL", 12 x 142 mm
    Front tires: SCHWALBE "G-One Allround", fold., 45-622
    Rear tires: SCHWALBE "G-One Allround", fold., 45-622
    Handle bar: SATORI "X-Race Pro", 400mm
    Stem: SATORI "Viper", ICR, 90mm
    Grips: FIZIK "Bar Tape"
    Saddle: SELLE ROYAL "XRC"
    Seat post: SATORI "Trident", 27,2 mm, 350 mm
    Front light: SUPERNOVA "Mini2"
    Technical data
    Category: allroad
    E-bike: yes
    Bosch Smart System: yes
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 400 Wh
    Support: till 25km/h
    Sex: gents
    Frame shape: diamond
    Frame size: S
    Frame height: 45 cm
    Wheel size: 28"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: Apex
    Brake system: hydraulic disc brake
    Permissible total weight: 130 kg
    Material: carbon
    Colour: grey, silver
    Colour designation: graphitegrey matt / silver matt
    Weight: 15,20 kg
    EAN 4251971149762
    Geometry data
    A - Seat tube: 450 mm
    B - Toptube: 530 mm
    C - Steering tube angle: 71°
    D - Stem length: 90 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 440 mm
    G - Reach: 375 mm
    H - Stack: 561 mm
    I - Wheel distance: 1.033 mm
    A - Seat tube: 480 mm
    B - Toptube: 550 mm
    C - Steering tube angle: 71°
    D - Stem length: 100 mm
    E - Seat angle: 75°
    F - Kettenstrebe: 440 mm
    G - Reach: 389 mm
    H - Stack: 582 mm
    I - Wheel distance: 1.050 mm
    A - Seat tube: 510 mm
    B - Toptube: 570 mm
    C - Steering tube angle: 72°
    D - Stem length: 100 mm
    E - Seat angle: 74°
    F - Kettenstrebe: 440 mm
    G - Reach: 397 mm
    H - Stack: 603 mm
    I - Wheel distance: 1.060 mm
    A - Seat tube: 540 mm
    B - Toptube: 590 mm
    C - Steering tube angle: 72°
    D - Stem length: 110 mm
    E - Seat angle: 74°
    F - Kettenstrebe: 440 mm
    G - Reach: 412 mm
    H - Stack: 622 mm
    I - Wheel distance: 1.081 mm
    S M L XL
    A - Seat tube: 450 mm 480 mm 510 mm 540 mm
    B - Toptube: 530 mm 550 mm 570 mm 590 mm
    C - Steering tube angle: 71° 71° 72° 72°
    D - Stem length: 90 mm 100 mm 100 mm 110 mm
    E - Seat angle: 75° 75° 74° 74°
    F - Kettenstrebe: 440 mm 440 mm 440 mm 440 mm
    G - Reach: 375 mm 389 mm 397 mm 412 mm
    H - Stack: 561 mm 582 mm 603 mm 622 mm
    I - Wheel distance: 1.033 mm 1.050 mm 1.060 mm 1.081 mm
