Nyvon 8.0 CF diamond
3,999.95€ *
E-GRAVEL & COMMUTE ➜ Material: carbon ✓ Colour: gold ✓ Weight: 16,90 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Gears: 10-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information
"Nyvon 8.0 CF diamond "
Flat bar or gravel handlebars? The "Nyvon 8.0 CF" stands out from its sister model - the "Nyvon 8.0 C" - primarily due to its flat bar handlebars. Technically, the two E-gravel bikes are almost identical. The straight handlebar shape ensures more direct control in city traffic and a slightly more upright riding position, ideal for commuters and urban all-rounders.

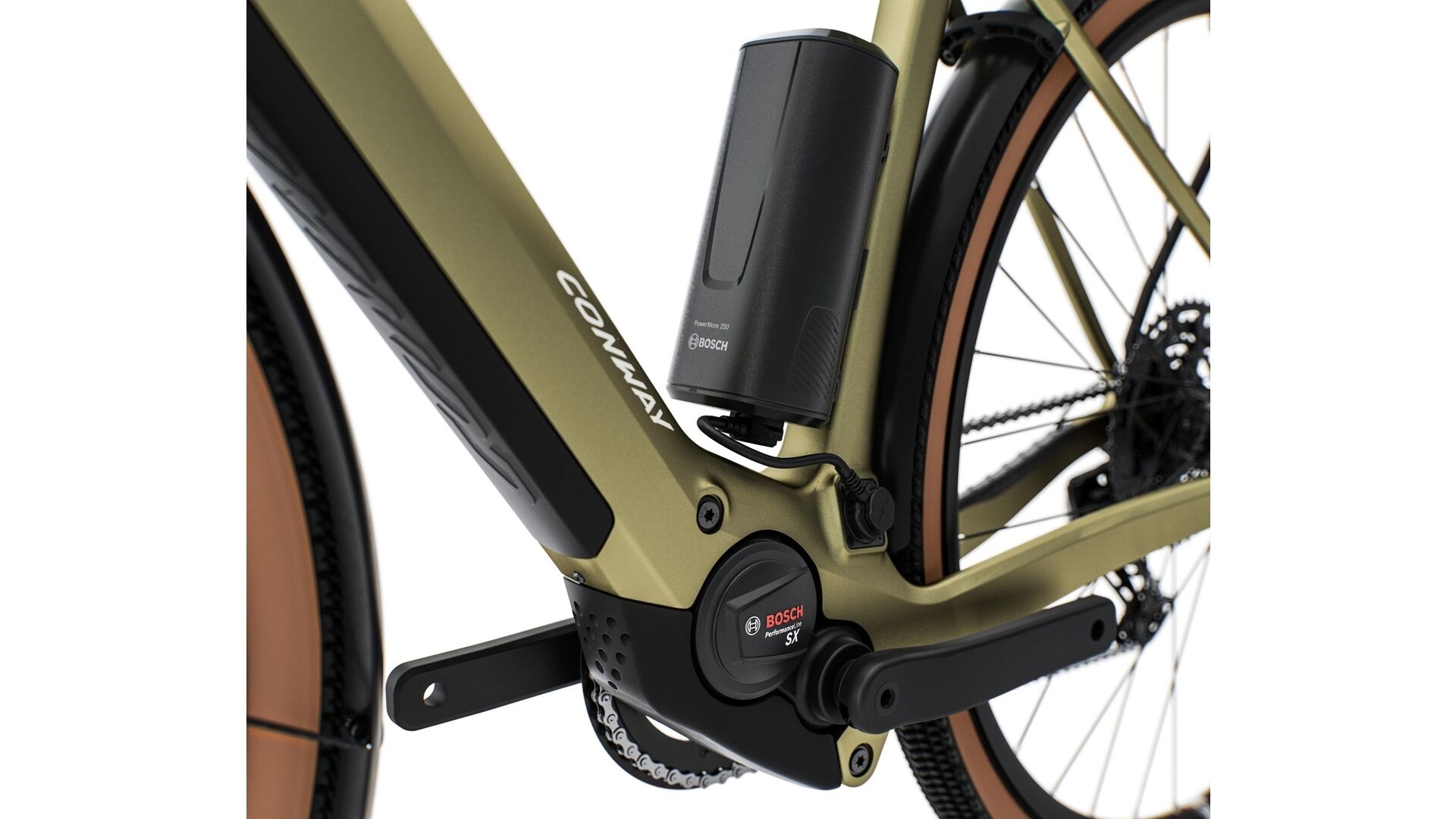

The geometry nevertheless puts you in a sporty, compact position with efficient pedaling and agile handling. Reach, stack and seat angle are tuned for dynamics and comfort, while the long wheelbase ensures a smooth ride. The Bosch mid-motor provides powerful support with 60 Nm of torque in eMTB+ mode.
The full carbon frame is light, stiff and equipped with many mounting points for luggage solutions. Range extender ready, integrated Stem, clever Saddle Clamp and front headlight make the bike suitable for commuting.
The geometry nevertheless puts you in a sporty, compact position with efficient pedaling and agile handling. Reach, stack and seat angle are tuned for dynamics and comfort, while the long wheelbase ensures a smooth ride. The Bosch mid-motor provides powerful support with 60 Nm of torque in eMTB+ mode.
The full carbon frame is light, stiff and equipped with many mounting points for luggage solutions. Range extender ready, integrated Stem, clever Saddle Clamp and front headlight make the bike suitable for commuting.
Spezifikationen
| Frame: | CONWAY E-Gravel Intube Bosch, Carbon |
| Dropout: | 0347028/3 |
| Fork: | CARBON "Gravel Disc" |
| Headset: | ACROS "IS52 / IS52 ICR" |
| Crank arm: | FSA "CK-220", 165 mm |
| Chain ring / belt ring: | MIRANDA "Steel One Piece", 42 Z. with Chainguard |
| Bottom Bracket: | BOSCH |
| Brakes: | SHIMANO "Cues UR300" |
| Brake lever: | SHIMANO "BL-MT201" |
| Front rotor: | SHIMANO "SM-RT30", 160 mm |
| Rear rotor: | SHIMANO "SM-RT30", 160 mm |
| Shifting lever: | SHIMANO "Cues U6000" |
| Rear derailleur: | SHIMANO "Cues RD-U6000", 10speed |
| Cassette / belt sprocket: | SHIMANO "CS-LG300", 11-48 Z. |
| Chain / belt: | SHIMANO "CN-LG500" |
| Drive unit: | BOSCH Mittelmotor "Performance SX", 36 V, 250 W |
| Battery: | BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh |
| Charger: | Bosch 2 Ah |
| Remote: | BOSCH "BRC3300" |
| Display: | BOSCH, "Kiox 300", 4-Stufen, Remote Control, Schiebehilfe |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Sniper" |
| Spokes: | Niro |
| Front hub: | SHIMANO "HB-TC500", 12 x 100 mm |
| Rear hub: | SHIMANO "FH-TC500", 12 x 142 mm |
| Front tires: | CONTINENTAL "Terra Adventure", 50-622 |
| Rear tires: | CONTINENTAL "Terra Adventure", 50-622 |
| Handle bar: | SATORI "Horizon Bow", 720mm |
| Stem: | SATORI "Viper", ICR, 90mm |
| Grips: | SQlab "70X" |
| Saddle: | SELLE ROYAL "SRX" |
| Seat post: | SATORI "Trident", 27,2 mm, 350 mm |
| Mud Guards: | CURANA "C-Lite 60" |
| Carrier: | ATRAN "Urban Light" |
| Front light: | SUPERNOVA "Mini2" |
| Tail light: | B&M "XELTEC", integriert |
| Kickstand: | HEBIE "0661" |
Technical data
| Category: | allroad |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line SX |
| Drive version: | middle motor |
| Battery capacity: | 400 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 45 cm |
| Wheel size: | 28" |
| Shifting type: | derailleur |
| Gears: | 10-speed |
| Transmission: | 1x 10-fach |
| Circuit brand: | Shimano |
| Shifting model: | Cues |
| Brake system: | hydraulic disc brake |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | carbon |
| Colour: | gold |
| Colour designation: | bronze matt |
| Weight: | 16,90 kg |
| EAN | 4251971176935 |
Geometry data
S
M
L
XL
| A - Seat tube: | 450 mm |
| B - Toptube: | 530 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 375 mm |
| I - Stack: | 561 mm |
| J - Standover height: | 777 mm |
| K - Wheel distance: | 1.033 mm |
| A - Seat tube: | 480 mm |
| B - Toptube: | 550 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 100 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 135 mm |
| H - Reach: | 389 mm |
| I - Stack: | 582 mm |
| J - Standover height: | 800 mm |
| K - Wheel distance: | 1.050 mm |
| A - Seat tube: | 510 mm |
| B - Toptube: | 570 mm |
| C - Steering tube angle: | 72° |
| D - Stem length: | 100 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 155 mm |
| H - Reach: | 397 mm |
| I - Stack: | 603 mm |
| J - Standover height: | 825 mm |
| K - Wheel distance: | 1.060 mm |
| A - Seat tube: | 540 mm |
| B - Toptube: | 590 mm |
| C - Steering tube angle: | 72° |
| D - Stem length: | 110 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 175 mm |
| H - Reach: | 412 mm |
| I - Stack: | 622 mm |
| J - Standover height: | 848 mm |
| K - Wheel distance: | 1.081 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 450 mm | 480 mm | 510 mm | 540 mm |
| B - Toptube: | 530 mm | 550 mm | 570 mm | 590 mm |
| C - Steering tube angle: | 71° | 71° | 72° | 72° |
| D - Stem length: | 90 mm | 100 mm | 100 mm | 110 mm |
| E - Seat angle: | 75° | 75° | 74° | 74° |
| F - Kettenstrebe: | 440 mm | 440 mm | 440 mm | 440 mm |
| G - Steering tube: | 115 mm | 135 mm | 155 mm | 175 mm |
| H - Reach: | 375 mm | 389 mm | 397 mm | 412 mm |
| I - Stack: | 561 mm | 582 mm | 603 mm | 622 mm |
| J - Standover height: | 777 mm | 800 mm | 825 mm | 848 mm |
| K - Wheel distance: | 1.033 mm | 1.050 mm | 1.060 mm | 1.081 mm |
