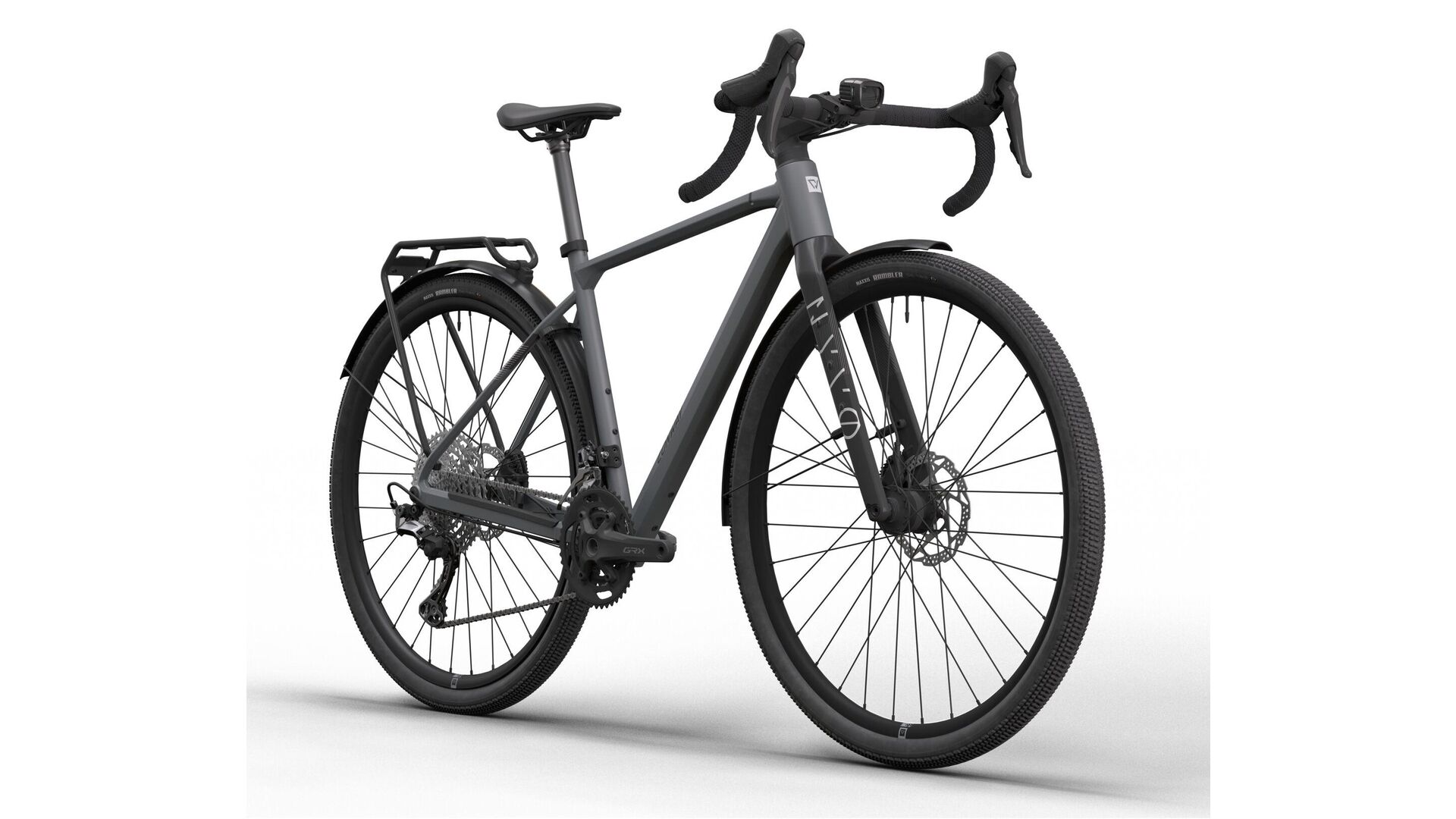

Nyvo 4.0 C diamond
1,899.95€ *
GRAVEL ➜ Material: aluminium ✓ Colour: grey ✓ Weight: 12,20 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Gears: 24-speed ✓ ➤ Discover now
Product information
"Nyvo 4.0 C diamond "
Gravel'n'go - our "Nyvo 4.0 C" is your sporty all-rounder for sport and everyday use. The bike offers you an active riding position with direct handling and stable riding dynamics - perfect for fast tours and everyday routes. The geometry ensures efficiency uphill and control downhill.
With the Shimano "GRX" 2x 12-speed drivetrain, hydraulic disc brakes and 28" wheels, you are technically well equipped. The aluminum frame comes with fully integrated cables, many mounting points and space for wide tires. Carriers, Fenders and a lighting system are already included for urban use - all discreetly and elegantly integrated. The Gravel Handlebar remains sporty, the design clean and modern.
With the Shimano "GRX" 2x 12-speed drivetrain, hydraulic disc brakes and 28" wheels, you are technically well equipped. The aluminum frame comes with fully integrated cables, many mounting points and space for wide tires. Carriers, Fenders and a lighting system are already included for urban use - all discreetly and elegantly integrated. The Gravel Handlebar remains sporty, the design clean and modern.
Spezifikationen
| Frame: | CONWAY Gravel, Alu |
| Dropout: | 0347028/3 |
| Fork: | Gravel "Carbon/Carbon" |
| Headset: | ACROS "IS52 / IS52 ICR" |
| Crank set: | SHIMANO "GRX FC-610-2", 165 mm |
| Bottom Bracket: | SHIMANO "PF SM-BB71" |
| Brakes: | SHIMANO "GRX" |
| Brake lever: | SHIMANO "GRX" |
| Front rotor: | SHIMANO "SM-RT54", 160 mm |
| Rear rotor: | SHIMANO "SM-RT54", 160 mm |
| Shifting lever: | SHIMANO "GRX" |
| Front derailleur: | SHIMANO "GRX FD-RX820" |
| Rear derailleur: | SHIMANO "GRX RD-RX820", 12speed |
| Cassette / belt sprocket: | SHIMANO "CS-HG710-12", 11-36 Z. |
| Chain / belt: | SHIMANO "CN-M6100" |
| Rims: | RODI "Sniper" |
| Spokes: | Niro |
| Front hub: | SHIMANO "DH-UR705-3D", 12 x 100 mm |
| Rear hub: | SHIMANO "FH-TC500", 12 x 142 mm |
| Front tires: | MAXXIS "Rambler", 40-622 |
| Rear tires: | MAXXIS "Rambler", 40-622 |
| Handle bar: | JD "Gravel Alloy Light", 400mm |
| Stem: | JD "Road Alloy Light", ICR, 80mm |
| Grips: | VELO "VLT-1051 black" |
| Saddle: | SELLE ROYAL "SRX" |
| Seat post: | JD "Two Piece Alloy", 27,2 mm, 350 mm |
| Mud Guards: | CURANA "C-Lite 50" |
| Carrier: | ATRAN "Urban Light" |
| Front light: | HERRMANS "MR5" |
| Tail light: | AXA "Juno", Batt. Light |
Technical data
| Category: | Gravel Bike |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 48 cm |
| Wheel size: | 28" |
| Shifting type: | derailleur |
| Gears: | 24-speed |
| Transmission: | 2x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | GRX |
| Brake system: | hydraulic disc brake |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | grey |
| Colour designation: | metallic grey matt |
| Weight: | 12,20 kg |
| EAN | 4251971177215 |
Geometry data
S
M
L
XL
| A - Seat tube: | 480 mm |
| B - Toptube: | 535 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 380 mm |
| I - Stack: | 554 mm |
| J - Wheel distance: | 1.039 mm |
| A - Seat tube: | 510 mm |
| B - Toptube: | 555 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 80 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 396 mm |
| I - Stack: | 568 mm |
| J - Wheel distance: | 1.060 mm |
| A - Seat tube: | 540 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 155 mm |
| H - Reach: | 405 mm |
| I - Stack: | 593 mm |
| J - Wheel distance: | 1.073 mm |
| A - Seat tube: | 570 mm |
| B - Toptube: | 595 mm |
| C - Steering tube angle: | 71° |
| D - Stem length: | 100 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 435 mm |
| G - Steering tube: | 175 mm |
| H - Reach: | 420 mm |
| I - Stack: | 612 mm |
| J - Wheel distance: | 1.094 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 480 mm | 510 mm | 540 mm | 570 mm |
| B - Toptube: | 535 mm | 555 mm | 575 mm | 595 mm |
| C - Steering tube angle: | 70° | 70° | 71° | 71° |
| D - Stem length: | 80 mm | 80 mm | 90 mm | 100 mm |
| E - Seat angle: | 75° | 75° | 74° | 74° |
| F - Kettenstrebe: | 435 mm | 435 mm | 435 mm | 435 mm |
| G - Steering tube: | 115 mm | 130 mm | 155 mm | 175 mm |
| H - Reach: | 380 mm | 396 mm | 405 mm | 420 mm |
| I - Stack: | 554 mm | 568 mm | 593 mm | 612 mm |
| J - Wheel distance: | 1.039 mm | 1.060 mm | 1.073 mm | 1.094 mm |
