Product information
"eWME 8.9 MX Full Suspension "
Sporty, fast & savvy
Inspired by motocross, the CONWAY developers have designed the "MX" models in the "eWME" range. With 29" wheels at the front and 27.5" wheels at the rear, the "eWME 8.9 MX" E-Fully is ready to take on all-mountain or enduro trails. All the advantages that are otherwise only available solo have been skillfully combined on this bike. The 720 Wh battery is a new feature that defines impressive trail lengths.

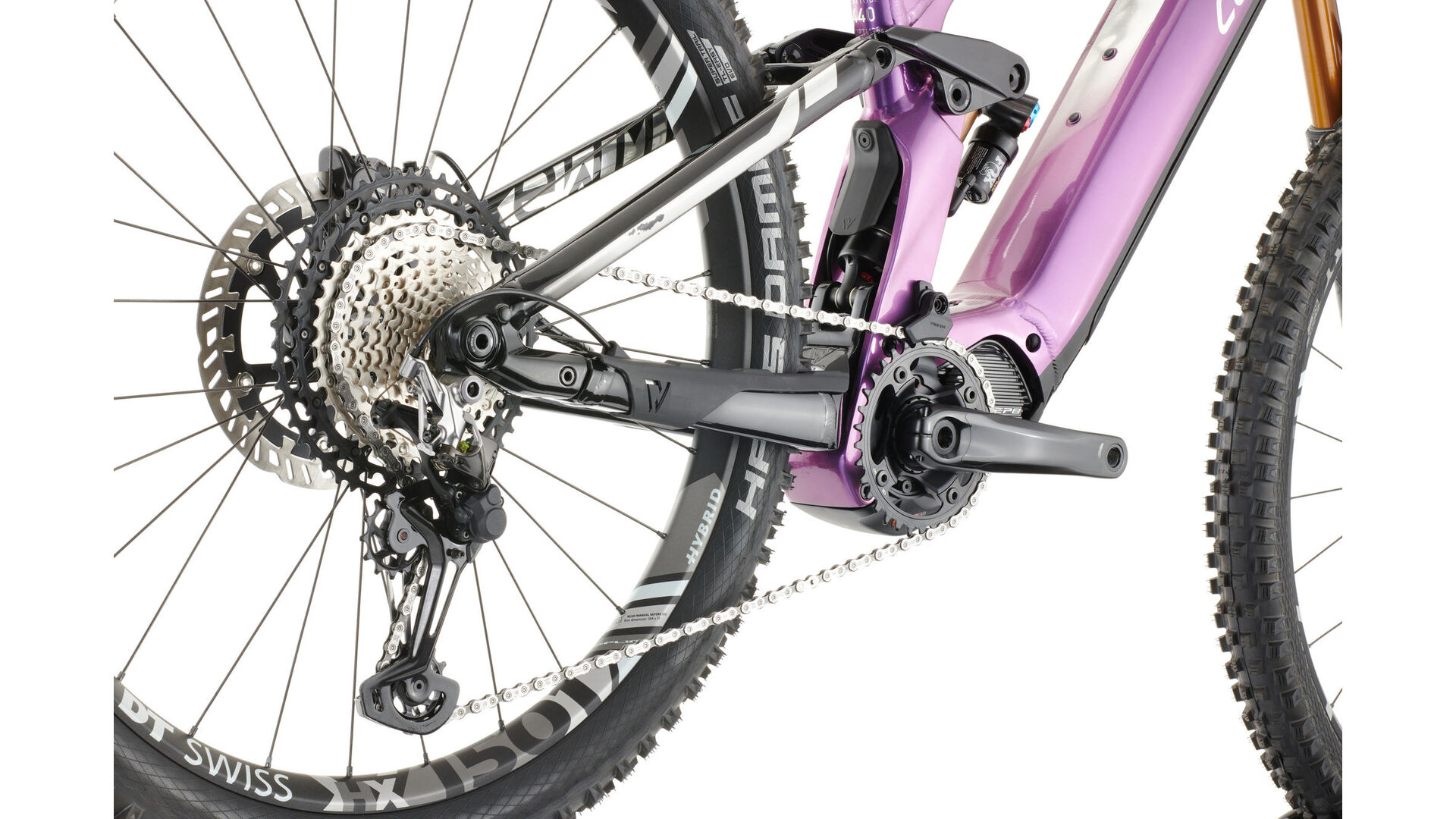

The small wheels on the rear triangle have the advantage that you can steer the bike with great agility. In addition, the 65 mm wide SCHWALBE "Hans Damper" tires with Speedgrip compound - smooth running, grip and puncture protection are perfectly combined here. At the front, you have plenty of traction in all corners thanks to the 60 mm "Magic Mary", which allows the bike to deliver the powerful 85 Nm torque of the new SHIMANO "EP8" mid-motor directly to the trail. The tried-and-tested SHIMANO "XTR" derailleur system provides fine-tuning in terms of drive, with its 12 gears always ensuring the right cadence.
The FOX suspension with "Factory 38 Float" Fork with 170 mm travel and the "Float X" Damper makes the "eWME 8.9 MX" fully capable off-road and a guarantee of fun on fast, sporty descents. The FOX "Transfer Factory" seatpost, the wide Handlebar and the powerful Magura "MT5 eStop" with its 220 (front) and 203 mm (rear) brake rotors also ensure full control.
As you can see, anything is possible with the CONWAY "eWME 8.9 MX": the all-mountain bike is sporty, fast and agile and is just as much fun to ride uphill as it is downhill - thanks to the MX concept and powerful components. For that extra bit of comfort, it even has an adapter plate for a side stand. And charging the batteries? Simply remove it from the down tube. Now it's just up to you - get on and ride!
Inspired by motocross, the CONWAY developers have designed the "MX" models in the "eWME" range. With 29" wheels at the front and 27.5" wheels at the rear, the "eWME 8.9 MX" E-Fully is ready to take on all-mountain or enduro trails. All the advantages that are otherwise only available solo have been skillfully combined on this bike. The 720 Wh battery is a new feature that defines impressive trail lengths.
The small wheels on the rear triangle have the advantage that you can steer the bike with great agility. In addition, the 65 mm wide SCHWALBE "Hans Damper" tires with Speedgrip compound - smooth running, grip and puncture protection are perfectly combined here. At the front, you have plenty of traction in all corners thanks to the 60 mm "Magic Mary", which allows the bike to deliver the powerful 85 Nm torque of the new SHIMANO "EP8" mid-motor directly to the trail. The tried-and-tested SHIMANO "XTR" derailleur system provides fine-tuning in terms of drive, with its 12 gears always ensuring the right cadence.
The FOX suspension with "Factory 38 Float" Fork with 170 mm travel and the "Float X" Damper makes the "eWME 8.9 MX" fully capable off-road and a guarantee of fun on fast, sporty descents. The FOX "Transfer Factory" seatpost, the wide Handlebar and the powerful Magura "MT5 eStop" with its 220 (front) and 203 mm (rear) brake rotors also ensure full control.
As you can see, anything is possible with the CONWAY "eWME 8.9 MX": the all-mountain bike is sporty, fast and agile and is just as much fun to ride uphill as it is downhill - thanks to the MX concept and powerful components. For that extra bit of comfort, it even has an adapter plate for a side stand. And charging the batteries? Simply remove it from the down tube. Now it's just up to you - get on and ride!
Spezifikationen
| Frame: | Intube EP8, aluminum, full suspension, 41 cm |
| Dropout: | SRAM "UDH", for Thru Axle, 1 mm thread pitch |
| Fork: | FOX "38 Float Factory", 170 mm travel, Float Glidecore, Grip X2, Thru Axle, Kashima |
| Headset: | ACROS ZS56/28.6 / ZS56/40, 135° blocklock |
| Rear shock: | FOX "Float X", 205 mm x 62.5 mm |
| Crank arm: | SHIMANO "FC-EM900", 165 mm |
| Chain ring / belt ring: | SHIMANO "SM-CRE80", 34 teeth |
| Bremse V.R.: | MAGURA Disc Brakes "MT5 eStop", hydraulic, 4 pistons, Post Mount, Adapter to 220 mm |
| Bremse H.R.: | MAGURA "MT5 eStop" |
| Front rotor: | MAGURA "MDR-P", Ø 220mm, 6-hole, 2-part |
| Rear rotor: | MAGURA "MDR-P", Ø 203mm, 6-hole, with magnet, 2-part |
| Shifting lever: | SHIMANO "XTR SL-M9100-IR" |
| Rear derailleur: | SHIMANO "Deore XTR RD-M9100", Shadow Plus, long cage |
| Cassette / belt sprocket: | SHIMANO "Deore XT CS-M8100", 10-51 teeth |
| Chain / belt: | SHIMANO "Deore XT CN-M8100" |
| Drive unit: | SHIMANO "EP800" |
| Battery: | DARFON "Intube 720", 720 Wh |
| Charger: | DARFON 4-5.6 A |
| Remote: | SHIMANO "SW-EM800" |
| Display: | SHIMANO "SC-EM800", 3-levels, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Laufrad V.R.: | DT SWISS "HX 1501 Spline One", 15 x 110 mm Boost, Thru Axle, 6-hole |
| Laufrad H.R.: | DT SWISS "HX 1501 Spline One", 12 x 148 mm Boost, Thru Axle, 6-hole |
| Front tires: | SCHWALBE "Magic Mary", 62-622 |
| Rear tires: | SCHWALBE "Hans Damper", 65-584 |
| Handle bar: | ergotec "Low Riser", 780 mm, Ø 31.8 mm |
| Stem: | ergotec "Bass", 45 mm long, angle 0°, level 6+ |
| Grips: | SQlab "70X" |
| Saddle: | FIZIK "Terra Aidon X5" |
| Seat post: | FOX "Transfer Factory", Ø 31.6 mm, 125 mm adjustment range |
| Battery Lock: | DARFON |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | SHIMANO STEPS EP8 |
| Drive version: | middle motor |
| Battery capacity: | 720 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 29" |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XTR |
| Brake system: | hydraulic disc brake |
| Travel: | 170 mm |
| Frame travel: | 160 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | silver |
| Colour designation: | flipflop / chrome |
| Weight: | 24,90 kg |
| EAN | 4251507982016 |
Geometry data
S
M
L
XL
| A - Seat tube: | 410 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 432 mm |
| I - Stack: | 628 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 440 mm |
| B - Toptube: | 605 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 452 mm |
| I - Stack: | 628 mm |
| J - Wheel distance: | 1.217 mm |
| A - Seat tube: | 470 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 472 mm |
| I - Stack: | 638 mm |
| J - Wheel distance: | 1.237 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 645 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 440 mm |
| G - Steering tube: | 125 mm |
| H - Reach: | 492 mm |
| I - Stack: | 648 mm |
| J - Wheel distance: | 1.257 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 410 mm | 440 mm | 470 mm | 500 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° |
| D - Stem length: | 45 mm | 45 mm | 45 mm | 45 mm |
| E - Seat angle: | 76° | 76° | 76° | 76° |
| F - Kettenstrebe: | 440 mm | 440 mm | 440 mm | 440 mm |
| G - Steering tube: | 105 mm | 105 mm | 115 mm | 125 mm |
| H - Reach: | 432 mm | 452 mm | 472 mm | 492 mm |
| I - Stack: | 628 mm | 628 mm | 638 mm | 648 mm |
| J - Wheel distance: | 1.197 mm | 1.217 mm | 1.237 mm | 1.257 mm |
