Product information
"eWME 4.9 full suspension "

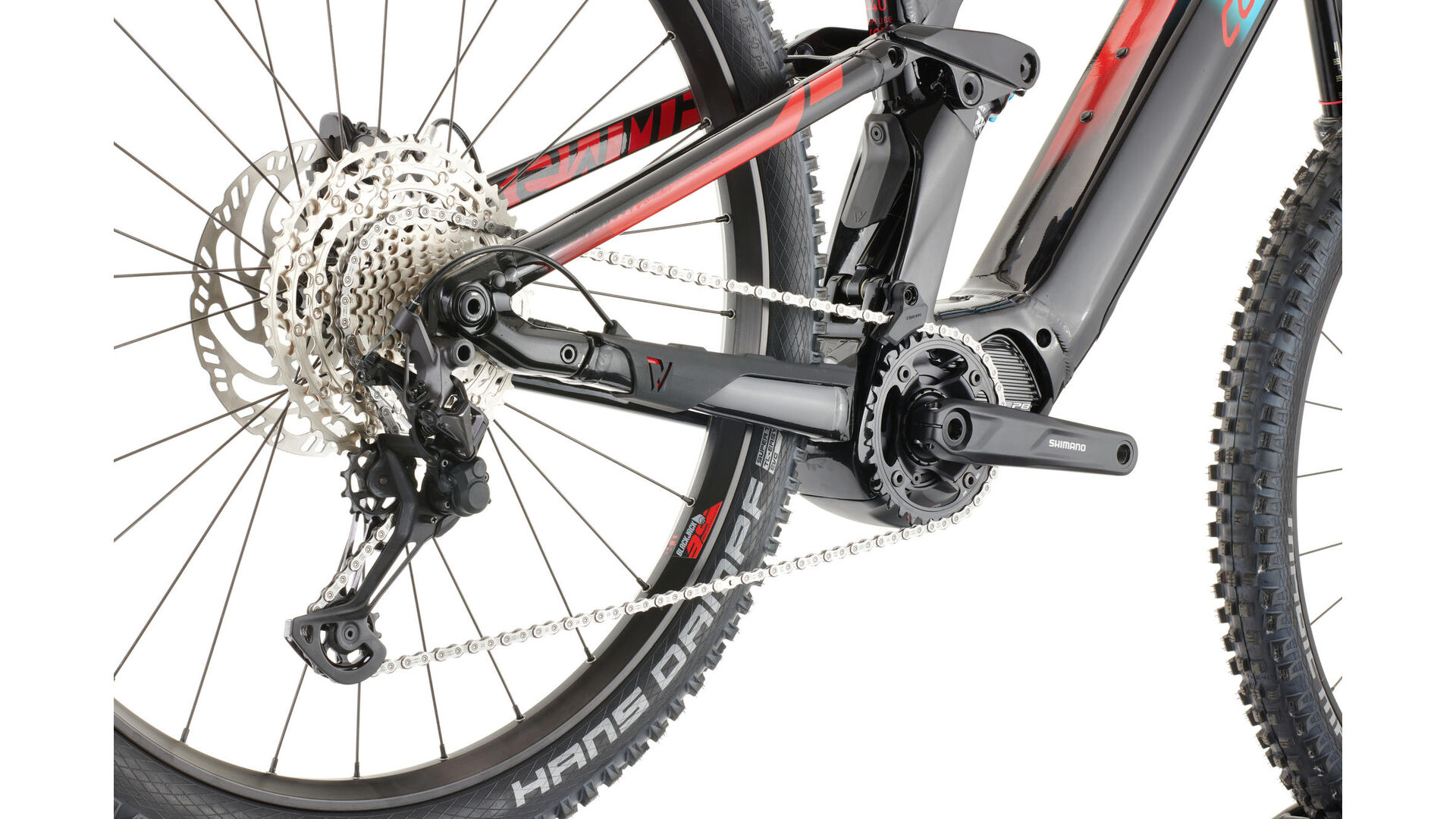

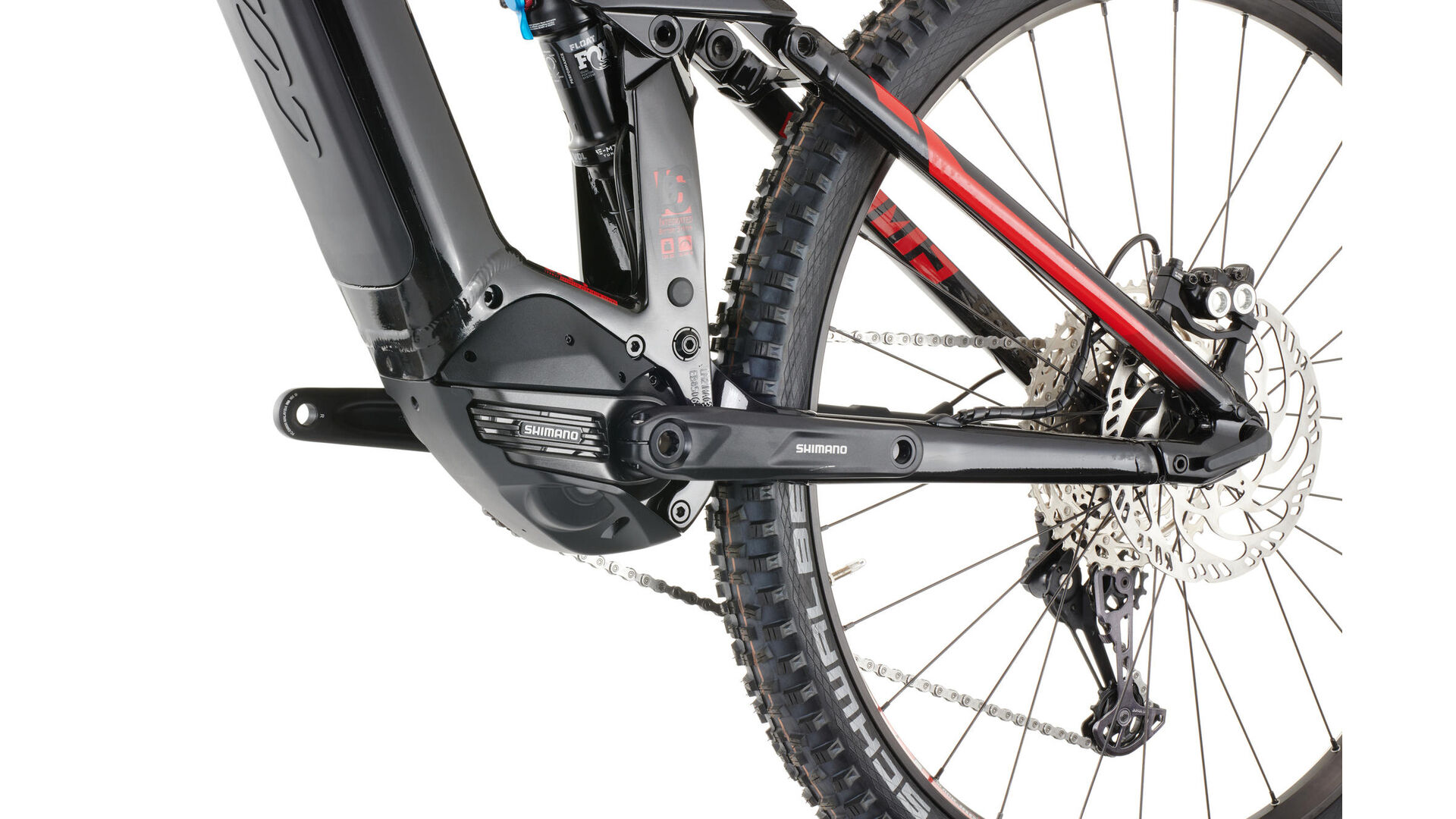

The "eWME 4.9" is one of the entry-level models of the CONWAY E-Fullys in the "We Make Enduro" range. It specializes in challenging all-mountain and fast trails. The developers have given this bike a Battery upgrade for even more extensive tours: Now with 720 Wh, the DARFON "Intube" battery feeds the powerful SHIMANO "EP8" engine. Together with the 12-speed "XT" derailleur mix, you can climb steep climbs with ease and set a good pace downhill.
The "eWME 4.9" offers large 29er wheels with a high-quality mix of SCHWALBE "Magic Mary" tires at the front and "Hans Damper" tires at the rear for challenging descents. But above all, the high-performance suspension with ROCKSHOX "Lyrik Select" fork with 160 mm travel and FOX "Float DPS" Damper irons out everything that gets in front of your wheels. The equipment together with the balanced geometry ensure that the E-Fully feels right at home on technically demanding descents and tight hairpin bends.
The "Drop-A-Gogo" seatpost from CONTEC, which can be lowered and operated from the cockpit, provides the perfect riding position both uphill and downhill. The CONWAY "eWME 4.9" manages the balancing act effortlessly with a decent price-performance ratio. It also has a low weight and a balanced mix of maneuverability and smoothness.
The "eWME 4.9" offers large 29er wheels with a high-quality mix of SCHWALBE "Magic Mary" tires at the front and "Hans Damper" tires at the rear for challenging descents. But above all, the high-performance suspension with ROCKSHOX "Lyrik Select" fork with 160 mm travel and FOX "Float DPS" Damper irons out everything that gets in front of your wheels. The equipment together with the balanced geometry ensure that the E-Fully feels right at home on technically demanding descents and tight hairpin bends.
The "Drop-A-Gogo" seatpost from CONTEC, which can be lowered and operated from the cockpit, provides the perfect riding position both uphill and downhill. The CONWAY "eWME 4.9" manages the balancing act effortlessly with a decent price-performance ratio. It also has a low weight and a balanced mix of maneuverability and smoothness.
Spezifikationen
| Frame: | Intube EP8, aluminum, full suspension, 41 cm |
| Dropout: | SRAM "UDH", for Thru Axle, 1 mm thread pitch |
| Fork: | SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner |
| Headset: | ACROS ZS56/28.6 / ZS56/40, 135° blocklock |
| Rear shock: | FOX "Float DPS", 205 mm x 60 mm |
| Crank arm: | SHIMANO "Deore XT FC-M8150", 165 mm |
| Chain ring / belt ring: | SHIMANO "SM-CRE80", 34 teeth |
| Bremse V.R.: | MAGURA "MT5 eStop" |
| Bremse H.R.: | MAGURA "MT5 eStop" |
| Front rotor: | MAGURA "MDR-C", Ø 203mm, 6-hole |
| Rear rotor: | MAGURA "MDR-C", Ø 203mm, 6-hole, with magnet |
| Shifting lever: | SHIMANO "Deore SL-M6100" |
| Rear derailleur: | SHIMANO "Deore XT RD-M8100" |
| Cassette / belt sprocket: | SHIMANO "Deore CS-M6100", 10-51 teeth |
| Chain / belt: | SHIMANO "Deore CN-M6100" |
| Drive unit: | SHIMANO "EP800" |
| Battery: | DARFON "Intube 720", 720 Wh |
| Charger: | DARFON 4-5.6 A |
| Remote: | SHIMANO "SW-EM800" |
| Display: | SHIMANO "SC-EM800", 3-levels, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Laufrad V.R.: | BLACKJACK "Ready 35", 15 x 110 mm Boost, Thru Axle, 6-hole |
| Laufrad H.R.: | BLACKJACK "Ready 35", 12 x 148 mm Boost, Thru Axle, 6-hole |
| Spokes: | Niro, schwarz |
| Front tires: | SCHWALBE "Magic Mary", 62-622 |
| Rear tires: | SCHWALBE "Hans Damper", 60-622 |
| Handle bar: | ergotec "Low Riser", 780 mm, Ø 31.8 mm |
| Stem: | ERGOTEC "Bass", ahead 1 1/8", 31,8mm handlebar clamp, 45mm long, angle 0°, Level 6+, sandblasted black |
| Grips: | SQlab "70X" |
| Saddle: | FIZIK "Terra Aidon X5" |
| Seat post: | CONTEC "Drop-A-Gogo", Ø 31.6 mm, 340 mm long, 100 mm adjustment range |
| Battery Lock: | DARFON |
Technical data
| Category: | Full Suspension |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | SHIMANO STEPS EP8 |
| Drive version: | middle motor |
| Battery capacity: | 720 Wh |
| Support: | till 25km/h |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 41 cm |
| Wheel size: | 29" |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 160 mm |
| Frame travel: | 155 mm |
| Features: | suspension fork, damper, electronic sliding aid |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | red |
| Colour designation: | turquoise fade / red |
| Weight: | 25,30 kg |
| EAN | 4251507981897 |
Geometry data
S
M
L
XL
| A - Seat tube: | 410 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 456 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 432 mm |
| I - Stack: | 628 mm |
| J - Wheel distance: | 1.212 mm |
| A - Seat tube: | 440 mm |
| B - Toptube: | 605 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 456 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 452 mm |
| I - Stack: | 628 mm |
| J - Wheel distance: | 1.232 mm |
| A - Seat tube: | 470 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 456 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 472 mm |
| I - Stack: | 638 mm |
| J - Wheel distance: | 1.252 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 645 mm |
| C - Steering tube angle: | 65° |
| D - Stem length: | 45 mm |
| E - Seat angle: | 76° |
| F - Kettenstrebe: | 456 mm |
| G - Steering tube: | 125 mm |
| H - Reach: | 492 mm |
| I - Stack: | 648 mm |
| J - Wheel distance: | 1.272 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 410 mm | 440 mm | 470 mm | 500 mm |
| B - Toptube: | 585 mm | 605 mm | 625 mm | 645 mm |
| C - Steering tube angle: | 65° | 65° | 65° | 65° |
| D - Stem length: | 45 mm | 45 mm | 45 mm | 45 mm |
| E - Seat angle: | 76° | 76° | 76° | 76° |
| F - Kettenstrebe: | 456 mm | 456 mm | 456 mm | 456 mm |
| G - Steering tube: | 105 mm | 105 mm | 115 mm | 125 mm |
| H - Reach: | 432 mm | 452 mm | 472 mm | 492 mm |
| I - Stack: | 628 mm | 628 mm | 638 mm | 648 mm |
| J - Wheel distance: | 1.212 mm | 1.232 mm | 1.252 mm | 1.272 mm |
