E-BIKES ➜ Material: aluminium ✓ Colour: gold ✓ Weight: 27,80 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Gears: 11-speed ✓ ➤ Discover now
Product information
"Cairon T 6.0 trapeze "
Clean in design, strong on tours: our "Cairon T 6.0" complements our touring and trekking series as the new top model. The smart system from Bosch takes the e-bike to a new level. The E-Bike Flow app, the Battery, the Display, the Operating Unit, the Drive Unit and the Bosch E-Bike ABS are fully networked in the smart system and allow you to fully customize your riding experience.

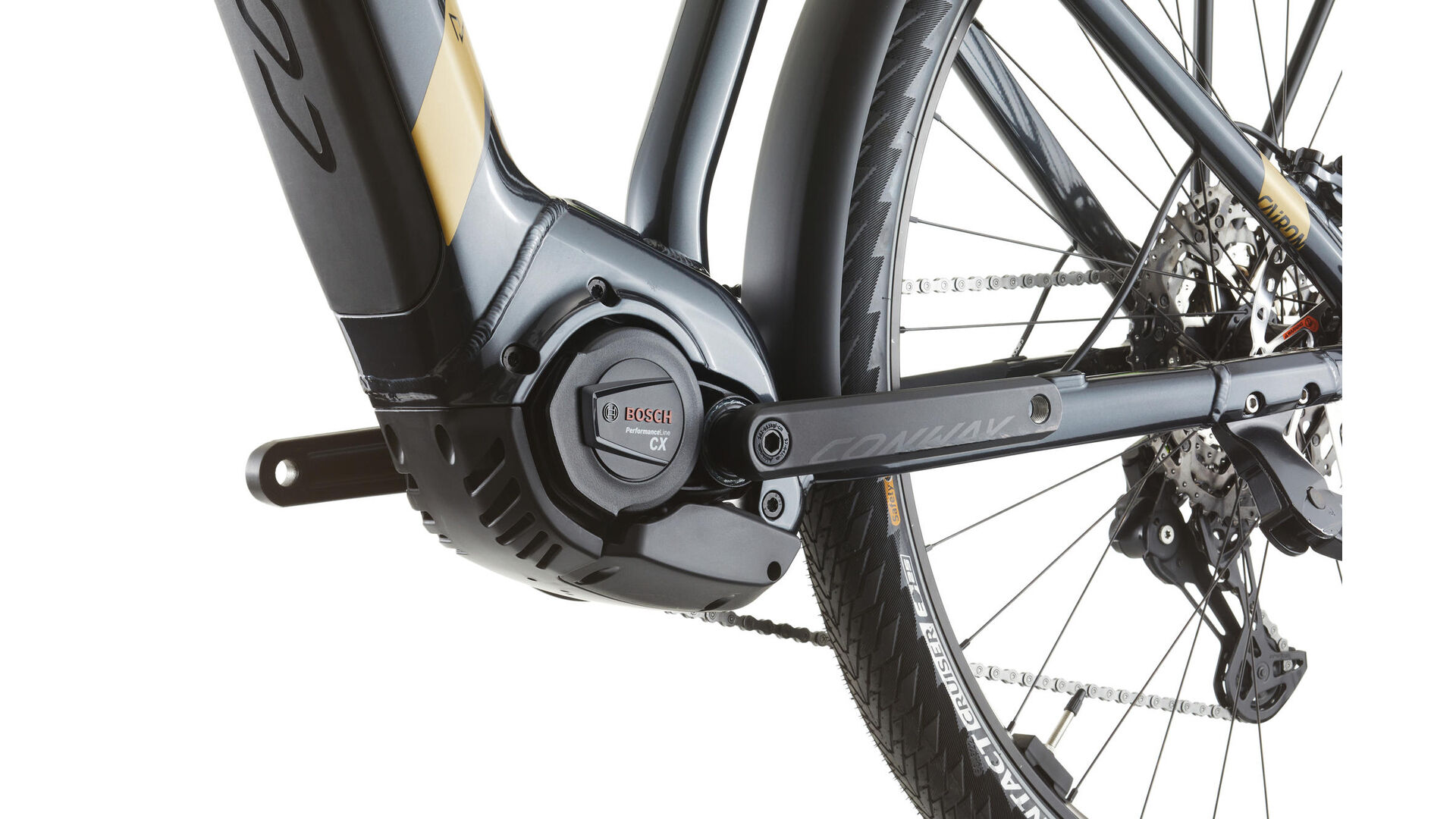

The 4th generation Bosch "Performance CX" mid-motor will drive you forward. Thanks to its central placement in the bottom bracket area, it not only impresses with the sporty thrust it generates, but also with its balanced riding feel. The 750 Wh Intube battery powers the engine and disappears completely into the down tube. The look is therefore beautifully tidy.
The Rockshox "Recon Silver RL" Fork contributes outstanding stiffness paired with precise steering behavior to the all-round e-bike. Air-suspended, it provides the necessary comfort and balances the bike perfectly on all touring and urban routes. Fenders and a bright and clever Front Light round off the overall package and make the "Cairon T 6.0" ready for daily use.
The 4th generation Bosch "Performance CX" mid-motor will drive you forward. Thanks to its central placement in the bottom bracket area, it not only impresses with the sporty thrust it generates, but also with its balanced riding feel. The 750 Wh Intube battery powers the engine and disappears completely into the down tube. The look is therefore beautifully tidy.
The Rockshox "Recon Silver RL" Fork contributes outstanding stiffness paired with precise steering behavior to the all-round e-bike. Air-suspended, it provides the necessary comfort and balances the bike perfectly on all touring and urban routes. Fenders and a bright and clever Front Light round off the overall package and make the "Cairon T 6.0" ready for daily use.
Spezifikationen
| Frame: | Intube Bosch, Gen. 4, BES3, aluminum, trapeze, 49 cm |
| Dropout: | CONWAY for WME Carbon, Xyron, RLC FS, Cairon SUV FS, from mod. 2020 |
| Fork: | RST "Blaze ML", 120 mm travel, QR |
| Headset: | GLORY WHEEL ZS56/28.6 / EC56/40 |
| Crank arm: | MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black |
| Chain ring / belt ring: | MIRANDA, 36 teeth |
| Bremse V.R.: | SHIMANO "Deore BL-M6100 / BR-M6120", Post Mount |
| Bremse H.R.: | SHIMANO "Deore BL-M6100 / BR-M6100" |
| Front rotor: | SHIMANO "SM-RT64", Ø 203 mm, Center Lock |
| Rear rotor: | SHIMANO "SM-RT64", Ø 180 mm, Center Lock |
| Shifting lever: | SHIMANO "Deore XT SL-M8130" |
| Rear derailleur: | SHIMANO "Deore XT RD-M8130", LINKGLIDE, long cage, 11-speed |
| Cassette / belt sprocket: | SHIMANO "CS-LG600", LINKGLIDE, 11-50 teeth |
| Chain / belt: | SHIMANO "CN-LG500" |
| Drive unit: | BOSCH "Performance Line CX", max. 85 Nm |
| Battery: | BOSCH "PowerTube 750", 750 Wh |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black |
| Spokes: | Niro, schwarz |
| Front hub: | SHIMANO "Altus HB-MT400-B", 15 x 110 mm Boost, Thru Axle, Center Lock |
| Rear hub: | SHIMANO "Alivio FH-MT400-B", 12 x 148 mm Boost, Center Lock, Thru Axle |
| Front tires: | CONTINENTAL "Contact Cruiser", 50-622, Reflex |
| Rear tires: | CONTINENTAL "Contact Cruiser", 50-622, Reflex |
| Handle bar: | LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5° |
| Stem: | LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black |
| Grips: | CONTEC "MERGE Mountain Comfort", 140 mm, G-Link, black / gray |
| Saddle: | Selle Royal "Vivo", Athletic |
| Seat post: | CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset |
| Chain guard: | Hesling "Move", 38 teeth |
| Mud Guards: | curana "Apollo 65" |
| Carrier: | atranvelo "Commute Pro" |
| Front light: | CONTEC "DLUX 120 E-XTENT", 120 lux, 350 lumen, radio-controlled high beam |
| Tail light: | Busch + Müller "ILU SR" |
| Frame Lock: | AXA "Block XXL" |
| Battery Lock: | AXA "Block XXL" |
| Kickstand: | URSUS "R81 - Wave Rear" |
| Pedals: | VP COMPONENTS "VPE-506" |
Technical data
| Category: | trekking bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 750 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | trapeze |
| Frame size: | L |
| Frame height: | 49 cm |
| Wheel size: | 28" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 11-speed |
| Transmission: | 1x 11-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 100 mm |
| Features: | suspension fork, suspensed seat post, frame lock, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | gold |
| Colour designation: | black metallic / gold metallic matt |
| Weight: | 27,80 kg |
| EAN | 4251971121102 |
Geometry data
L
XL
| A - Seat tube: | 490 mm |
| B - Toptube: | 620 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 445 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.197 mm |
| A - Seat tube: | 530 mm |
| B - Toptube: | 640 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 75° |
| F - Kettenstrebe: | 455 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 468 mm |
| I - Stack: | 658 mm |
| J - Wheel distance: | 1.220 mm |
| L | XL | |
|---|---|---|
| A - Seat tube: | 490 mm | 530 mm |
| B - Toptube: | 620 mm | 640 mm |
| C - Steering tube angle: | 67° | 67° |
| D - Stem length: | 65 mm | 65 mm |
| E - Seat angle: | 75° | 75° |
| F - Kettenstrebe: | 455 mm | 455 mm |
| G - Steering tube: | 130 mm | 130 mm |
| H - Reach: | 445 mm | 468 mm |
| I - Stack: | 658 mm | 658 mm |
| J - Wheel distance: | 1.197 mm | 1.220 mm |
