Product information

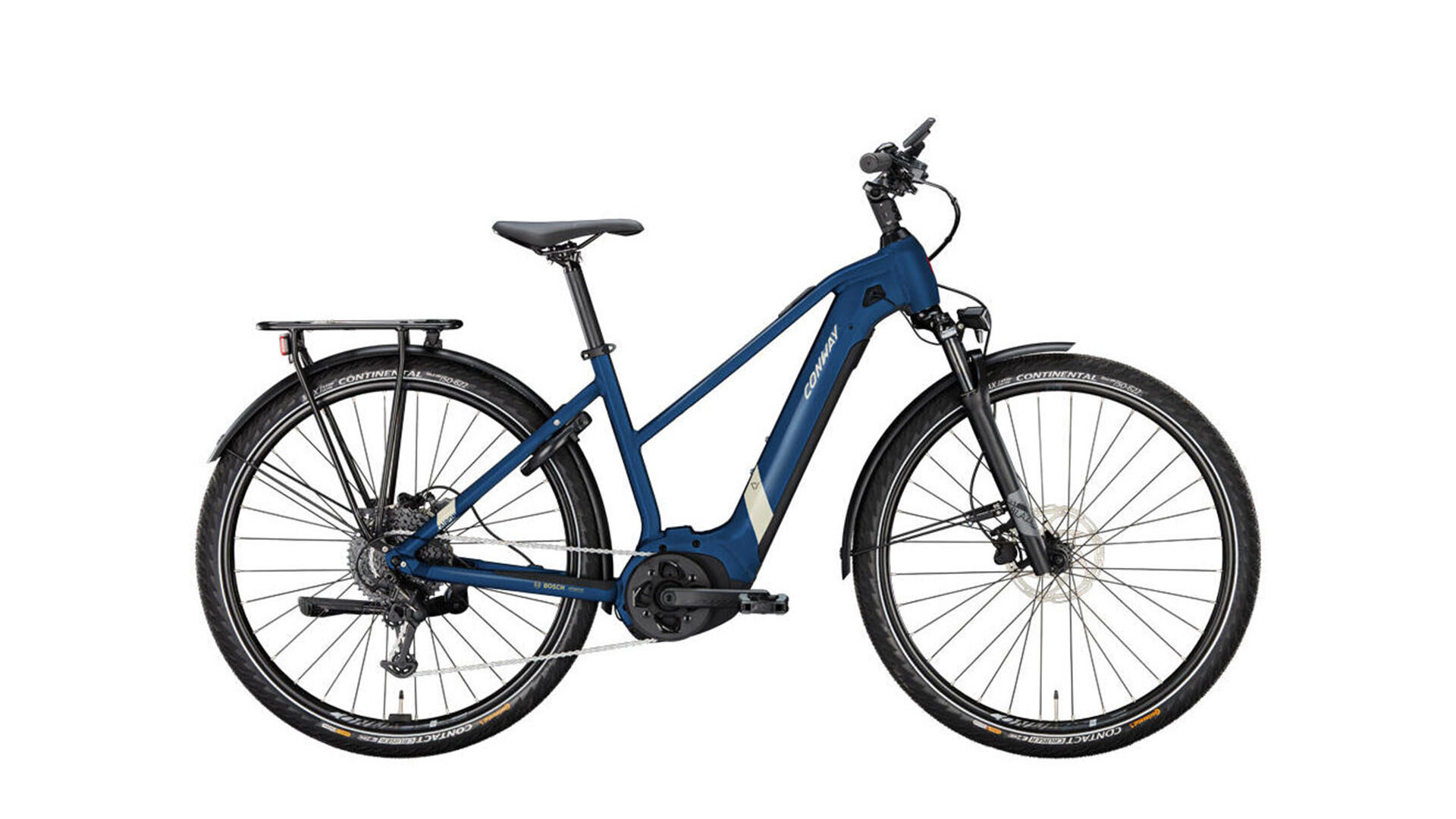

"Cairon T 2.0 625 trapeze "
Versatile use - that was our aim when developing the "Cairon T 2.0 625", and we have achieved it. The trekking bike is a loyal companion for short rides through the city as well as long and extensive rides through the countryside after work or at the weekend - with the 625 Wh Battery, which disappears elegantly into the down tube, this model is extremely good at this.
But just riding a bike is a thing of the past, so we have digitized our "Cairon T 2.0 625" with the Bosch Smart System. This very special ecosystem for this model consists of the Bosch "Performance CX" mid-motor, the "Intuvia100" Display, the remote lever on the Handlebar and the E-Bike Flow app, which is the interface between the E-Bike and smartphone. Updates are automatically downloaded to your bike thanks to the app. It also keeps track of all the tour data you have collected and reminds you when your bike should next be serviced.
Top speeds of up to 25 km/h can be achieved with powerful thrust and fine gear increments. The extremely reliable Tektro hydraulic Disc Brakes are there for precise braking. Last but not least, the 50 mm wide Continental tires in combination with the Suspension Fork and the suspended seatposts give the "Cairon T 2.0 625" plenty of comfort.
The Contec LED lighting and Reflective Stripes on the tires ensure that other road users can see you better in the dark or when visibility is poor. The Carrier can take all the bags packed with spare clothing or provisions for excursions. The Fenders, on the other hand, make the bike more suitable for use in the city. Dirt and splash water are kept out with ease.
But just riding a bike is a thing of the past, so we have digitized our "Cairon T 2.0 625" with the Bosch Smart System. This very special ecosystem for this model consists of the Bosch "Performance CX" mid-motor, the "Intuvia100" Display, the remote lever on the Handlebar and the E-Bike Flow app, which is the interface between the E-Bike and smartphone. Updates are automatically downloaded to your bike thanks to the app. It also keeps track of all the tour data you have collected and reminds you when your bike should next be serviced.
Top speeds of up to 25 km/h can be achieved with powerful thrust and fine gear increments. The extremely reliable Tektro hydraulic Disc Brakes are there for precise braking. Last but not least, the 50 mm wide Continental tires in combination with the Suspension Fork and the suspended seatposts give the "Cairon T 2.0 625" plenty of comfort.
The Contec LED lighting and Reflective Stripes on the tires ensure that other road users can see you better in the dark or when visibility is poor. The Carrier can take all the bags packed with spare clothing or provisions for excursions. The Fenders, on the other hand, make the bike more suitable for use in the city. Dirt and splash water are kept out with ease.
Spezifikationen
| Frame: | Intube Bosch, Gen. 3, BES3, aluminum, trapezoid, 38 cm |
| Dropout: | CONWAY "V2" for Cairon QR |
| Fork: | RST "Blaze ML", 80 mm travel, QR |
| Headset: | GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40 |
| Crank set: | MIRANDA "Classic", 165 mm, 36 teeth |
| Crank arm: | MIRANDA "Classic Gen3", 165 mm |
| Chain ring / belt ring: | MIRANDA "Gen3", 36 Z., w CG |
| Bremse V.R.: | SHIMANO "BL-MT200 / BR-MT200", Post Mount |
| Bremse H.R.: | SHIMANO Disc Brakes "BL-MT200 / BR-MT200", hydraulic, Adapter for 180 mm |
| Front rotor: | SHIMANO "SM-RT30", Ø 180 mm, Center Lock |
| Rear rotor: | SHIMANO "SM-RT30", Ø 180 mm, Center Lock |
| Shifting lever: | TEKTRO "SL-M350R" |
| Rear derailleur: | TEKTRO "RD-M350" |
| Cassette / belt sprocket: | TEKTRO "CS-M350-9", 11-46 teeth |
| Chain / belt: | SHIMANO "CN-HG53" |
| Drive unit: | BOSCH "Performance Line" engine, max. 75 Nm |
| Battery: | BOSCH "PowerTube 625", 625 Wh, BES3, horizontal |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3300", Mini Remote |
| Display: | BOSCH "Intuvia 100", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RODI "Blackrock 25", 25-622, 32 holes disc brake, easy eyelets, black |
| Spokes: | Niro schwarz |
| Front hub: | SHIMANO "Tourney TX HB-TX505", Center Lock, QR |
| Rear hub: | SHIMANO "Tourney TX FH-TX505", Center Lock, QR |
| Front tires: | CONTINENTAL "Contact Cruiser", 50-622, Reflex |
| Rear tires: | CONTINENTAL "Contact Cruiser", 50-622, Reflex |
| Handle bar: | LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5° |
| Stem: | LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black |
| Grips: | CONWAY "Sport", 130 mm, black |
| Saddle: | Selle Royal "Vivo", Athletic |
| Seat post: | CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset |
| Chain guard: | HESLING “Move” |
| Mud Guards: | SKS "A 60 S" |
| Carrier: | atranvelo "Commute Pro" |
| Front light: | CONTEC "DLUX 50 E+", 50 lux |
| Tail light: | CONTEC "TL-335 E" |
| Frame Lock: | AXA "Block XXL" |
| Battery Lock: | AXA "Block XXL" |
| Kickstand: | URSUS "R81 - Wave Rear" |
| Pedals: | UNION "SP-827" |
Technical data
| Category: | trekking bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | trapeze |
| Frame size: | XS |
| Frame height: | 38 cm |
| Wheel size: | 28" |
| Shifting type: | derailleur |
| Gears: | 9-speed |
| Transmission: | 1x 9-fach |
| Circuit brand: | Tektro |
| Shifting model: | M350 |
| Brake system: | hydraulic disc brake |
| Travel: | 80 mm |
| Features: | suspension fork, suspensed seat post, frame lock, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Colour: | beige |
| Colour designation: | blue metallic / desert matt |
| Weight: | 27,10 kg |
| EAN | 4251971120334 |
Geometry data
XS
S
M
L
XL
| A - Seat tube: | 380 mm |
| B - Toptube: | 570 mm |
| C - Steering tube angle: | 68° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 73° |
| F - Kettenstrebe: | 485 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 379 mm |
| I - Stack: | 626 mm |
| J - Wheel distance: | 1.147 mm |
| A - Seat tube: | 420 mm |
| B - Toptube: | 585 mm |
| C - Steering tube angle: | 69° |
| D - Stem length: | 65 mm |
| E - Seat angle: | 73° |
| F - Kettenstrebe: | 485 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 393 mm |
| I - Stack: | 631 mm |
| J - Wheel distance: | 1.151 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 69° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 73° |
| F - Kettenstrebe: | 485 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 409 mm |
| I - Stack: | 631 mm |
| J - Wheel distance: | 1.167 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 615 mm |
| C - Steering tube angle: | 69° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 73° |
| F - Kettenstrebe: | 485 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 422 mm |
| I - Stack: | 640 mm |
| J - Wheel distance: | 1.184 mm |
| A - Seat tube: | 540 mm |
| B - Toptube: | 630 mm |
| C - Steering tube angle: | 69° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 73° |
| F - Kettenstrebe: | 485 mm |
| G - Steering tube: | 150 mm |
| H - Reach: | 434 mm |
| I - Stack: | 649 mm |
| J - Wheel distance: | 1.200 mm |
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| A - Seat tube: | 380 mm | 420 mm | 460 mm | 500 mm | 540 mm |
| B - Toptube: | 570 mm | 585 mm | 600 mm | 615 mm | 630 mm |
| C - Steering tube angle: | 68° | 69° | 69° | 69° | 69° |
| D - Stem length: | 65 mm | 65 mm | 90 mm | 90 mm | 90 mm |
| E - Seat angle: | 73° | 73° | 73° | 73° | 73° |
| F - Kettenstrebe: | 485 mm | 485 mm | 485 mm | 485 mm | 485 mm |
| G - Steering tube: | 130 mm | 130 mm | 130 mm | 140 mm | 150 mm |
| H - Reach: | 379 mm | 393 mm | 409 mm | 422 mm | 434 mm |
| I - Stack: | 626 mm | 631 mm | 631 mm | 640 mm | 649 mm |
| J - Wheel distance: | 1.147 mm | 1.151 mm | 1.167 mm | 1.184 mm | 1.200 mm |
