BIKES ➜ Material: carbon ✓ Weight: 12,20 kg ✓ Wheel size: 29" ✓ Brake system: hydraulic disc brake ✓ Gears: 12-speed ✓ E-bike: no ✓ ➤ Discover now
Product information

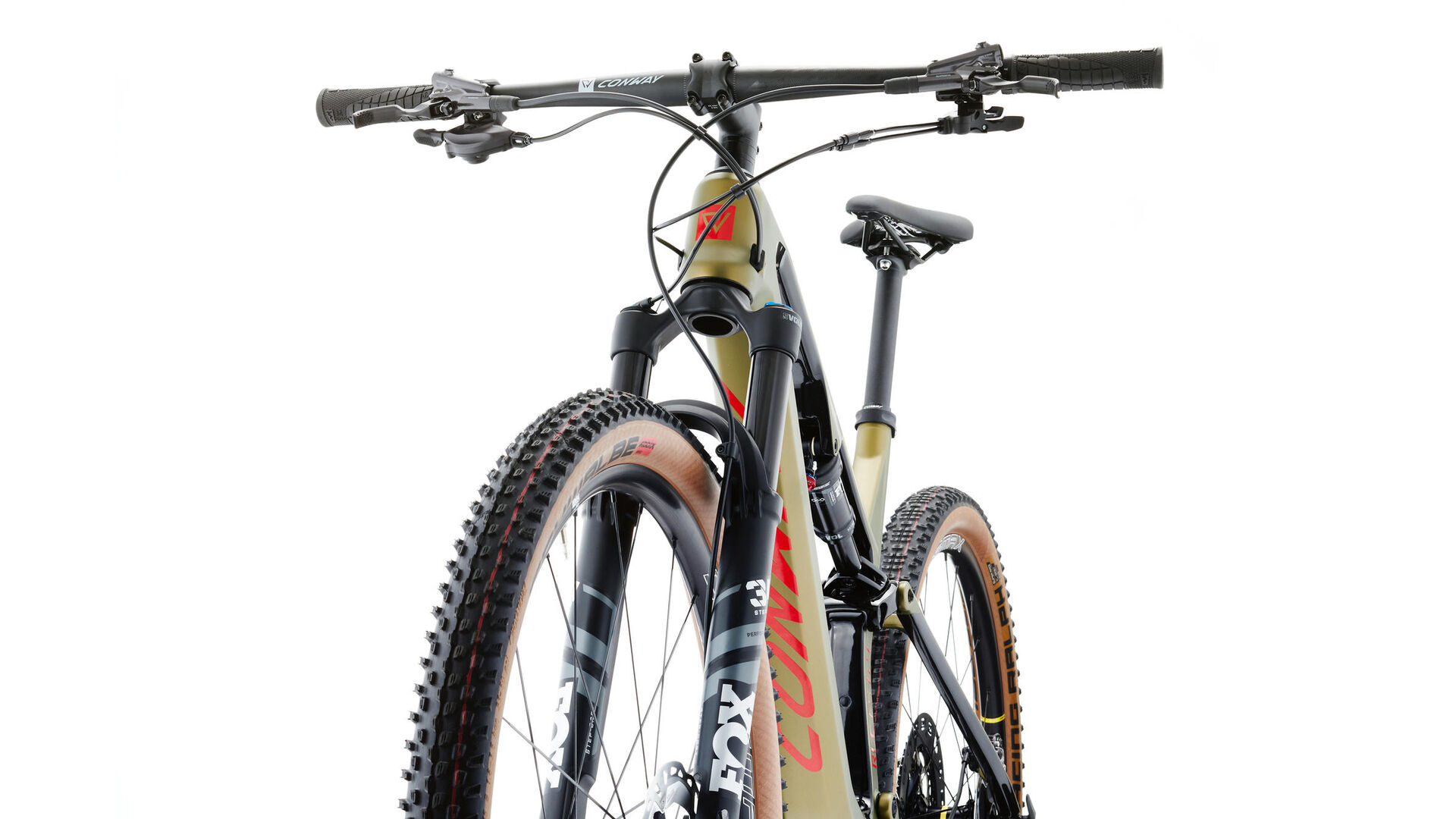

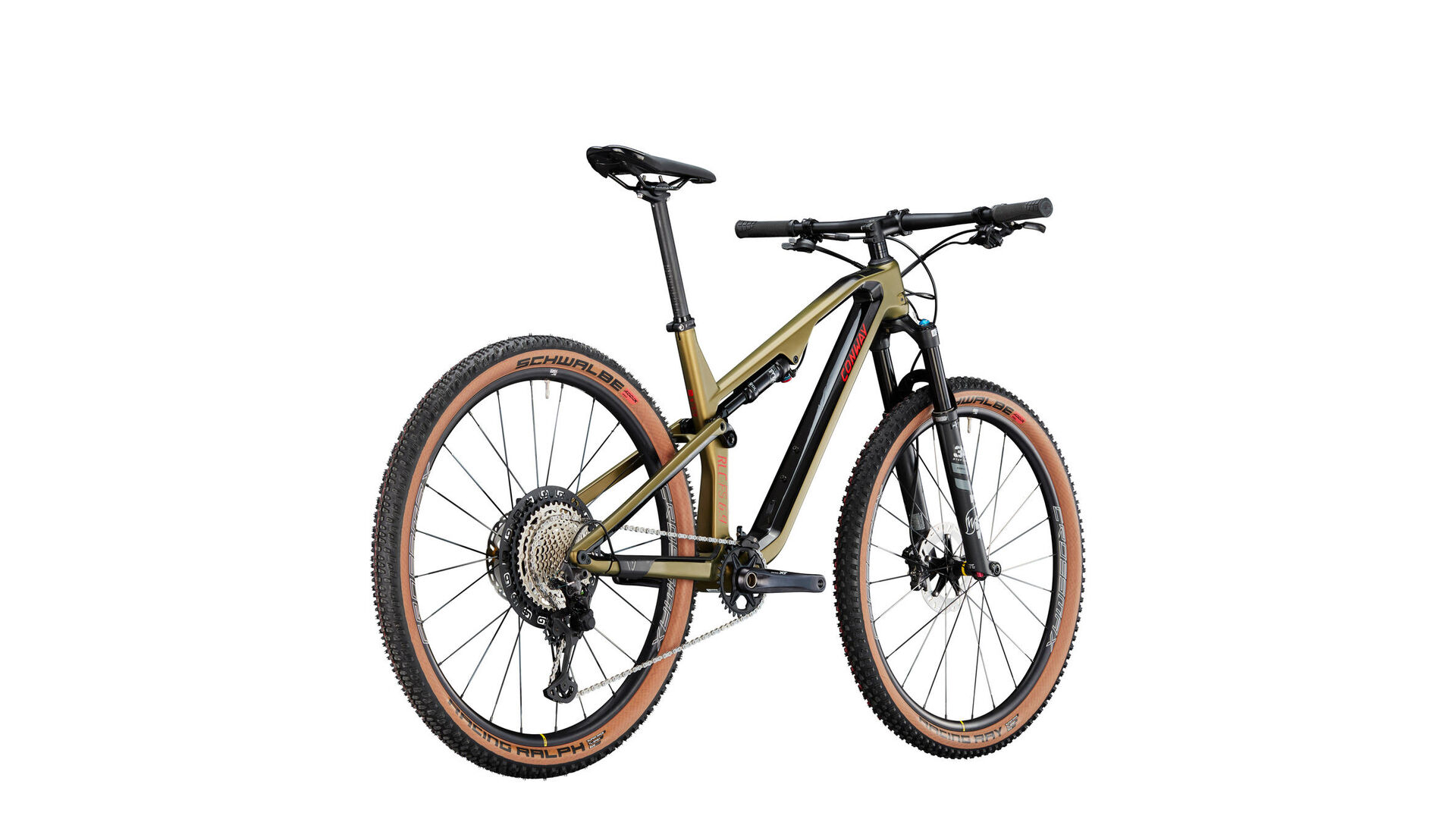

"RLC FS 6.9 Full Suspension "
The "RLC FS 6.9" comes up with more travel - and thus qualifies as a true marathon and downcountry bike. All bumps and uneven surfaces that come in front of the CONWAY "RLC FS 6.9" on cross-country or marathon trails are smoothed out with 120mm. To ensure full power transmission, the full-carbon race full suspension is light and laterally stiff.
Your drive is provided by the SHIMANO "Deore XT Shadow Plus" shifting system with its 12 gears. From the same family come the hydraulic disc brakes. The lug tread of the tire combination of SCHWALBE, front "Racing Ray" and rear "Racing Ralph" in Evo quality, 60mm width with Addix Compound, gives you enough grip on loose ground. The DT SWISS "X 1900 Spline" wheels contribute to the lateral stiffness and plenty of drive power.
The genes of the race full suspension bike come from the CONWAY siblings "WME" and "RLC", its handling is correspondingly sporty, the seating position nevertheless suitable for long distances. The "RLC FS" series is also prepared for the FOX "Livevalve" suspension systems.
Your drive is provided by the SHIMANO "Deore XT Shadow Plus" shifting system with its 12 gears. From the same family come the hydraulic disc brakes. The lug tread of the tire combination of SCHWALBE, front "Racing Ray" and rear "Racing Ralph" in Evo quality, 60mm width with Addix Compound, gives you enough grip on loose ground. The DT SWISS "X 1900 Spline" wheels contribute to the lateral stiffness and plenty of drive power.
The genes of the race full suspension bike come from the CONWAY siblings "WME" and "RLC", its handling is correspondingly sporty, the seating position nevertheless suitable for long distances. The "RLC FS" series is also prepared for the FOX "Livevalve" suspension systems.
Spezifikationen
| Frame: | Carbon, full suspension, 43 cm |
| Dropout: | CONWAY for WME Carbon, Xyron, RLC FS, Cairon SUV FS, from mod. 2020 |
| Fork: | FOX "34 Float Performance SC", 120 mm travel, Float Evol, Grip, Thru Axle |
| Headset: | ACROS ZS44/28.6 / ZS56/40 |

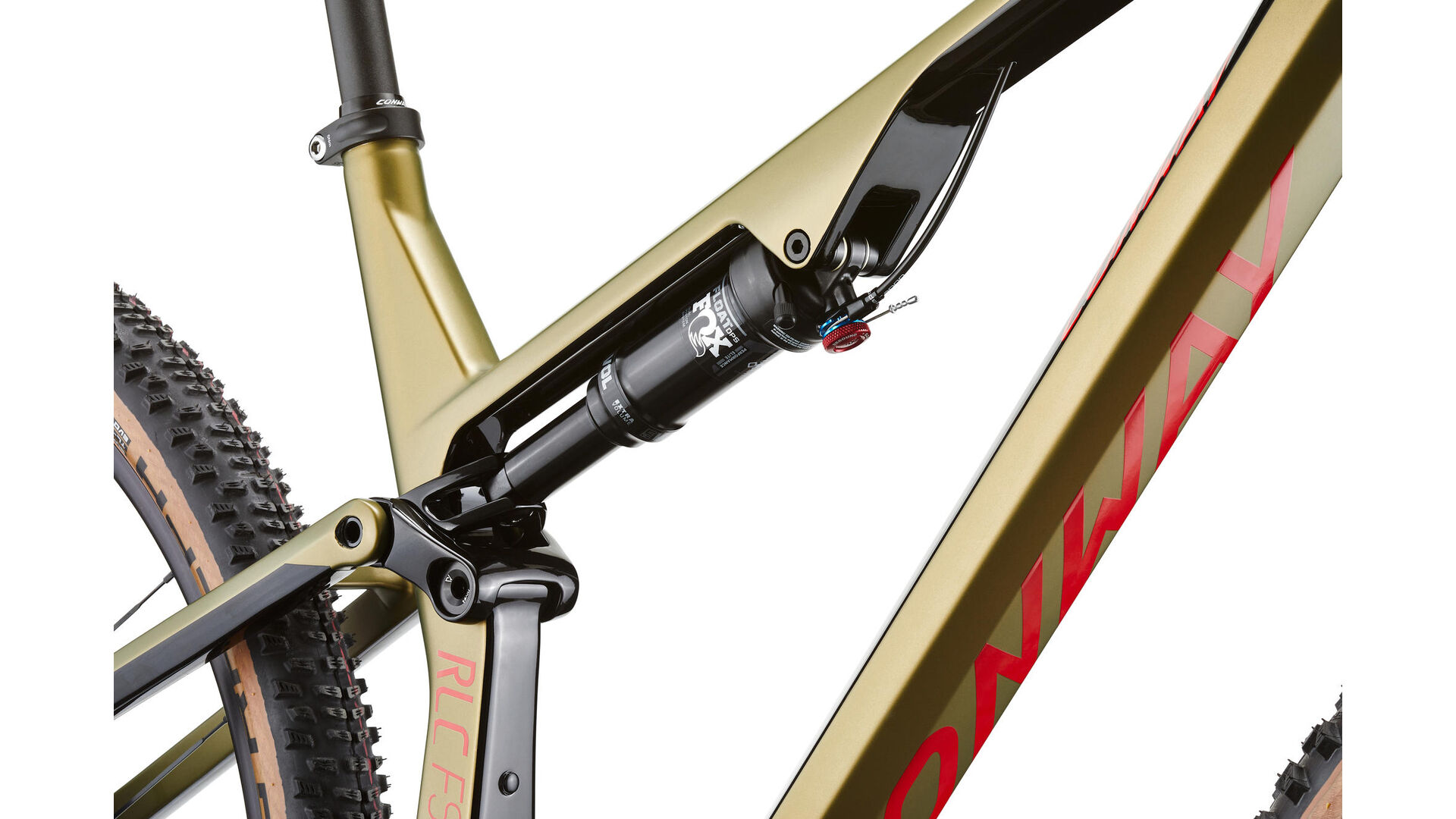

| Rear shock: | FOX "Float DPS", 210 mm x 50 mm |
| Crank set: | SHIMANO "Deore XT FC-M8100", 170 mm, 32 teeth |
| Bottom Bracket: | SHIMANO "BB-MT800", Pressfit BB92, 89.5 mm / 92 mm housing width |
| Bremse V.R.: | SHIMANO "Deore XT BL-M8100 / BR-M8100", Post Mount |
| Bremse H.R.: | SHIMANO "Deore XT BL-M8100 / BR-M8100" |
| Front rotor: | SHIMANO "RT-MT800", Ø 180 mm, Center Lock |
| Rear rotor: | SHIMANO "RT-MT800", Ø 160 mm, Center Lock |
| Shifting lever: | SHIMANO "Deore XT SL-M8100" |
| Rear derailleur: | SHIMANO "Deore XT RD-M8100" |
| Cassette / belt sprocket: | SHIMANO "SLX CS-M7100", 10-51 teeth |
| Chain / belt: | SHIMANO "SLX CN-M7100" |
| Rims: | MAVIC |
| Spokes: | MAVIC |
| Front hub: | MAVIC „Crossmax″, 15 x 110 mm |
| Rear hub: | MAVIC „Crossmax″, 12 x 148 mm |
| Front tires: | SCHWALBE "Racing Ray" Tires, 60-622 |
| Rear tires: | SCHWALBE "Racing Ralph", 60-622 |
| Handle bar: | LEVELNINE "Flat Bar", 740 mm, Ø 31.8 mm, Backsweep 8° |
| Stem: | LEVELNINE "Race A-Head", 1 1/8", 31,8mm handlebar clamp, 60mm long, angle 6°, black |
| Grips: | SQlab "70X" |
| Saddle: | CONWAY "1489 sport light" |
| Seat post: | LEVELNINE "Race", Ø 27.2 mm, 350 mm long, 12 mm offset, black |
Technical data
| Category: | Full Suspension |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | full suspension |
| Frame size: | S |
| Frame height: | 43 cm |
| Wheel size: | 29" |
| Shifting type: | derailleur |
| Gears: | 12-speed |
| Transmission: | 1x 12-fach |
| Circuit brand: | Shimano |
| Shifting model: | XT |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Frame travel: | 100 mm |
| Features: | suspension fork, damper |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | carbon |
| Colour: | black |
| Colour designation: | bronze metallic matt / black metallic |
| Weight: | 12,20 kg |
| EAN | 4251971103184 |
Geometry data
S
M
L
XL
| A - Seat tube: | 425 mm |
| B - Toptube: | 575 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 60 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 95 mm |
| H - Reach: | 424 mm |
| I - Stack: | 586 mm |
| J - Wheel distance: | 1.119 mm |
| A - Seat tube: | 465 mm |
| B - Toptube: | 600 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 105 mm |
| H - Reach: | 449 mm |
| I - Stack: | 595 mm |
| J - Wheel distance: | 1.147 mm |
| A - Seat tube: | 505 mm |
| B - Toptube: | 625 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 115 mm |
| H - Reach: | 473 mm |
| I - Stack: | 604 mm |
| J - Wheel distance: | 1.175 mm |
| A - Seat tube: | 545 mm |
| B - Toptube: | 650 mm |
| C - Steering tube angle: | 70° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 72° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 495 mm |
| I - Stack: | 618 mm |
| J - Wheel distance: | 1.203 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 425 mm | 465 mm | 505 mm | 545 mm |
| B - Toptube: | 575 mm | 600 mm | 625 mm | 650 mm |
| C - Steering tube angle: | 70° | 70° | 70° | 70° |
| D - Stem length: | 60 mm | 75 mm | 90 mm | 90 mm |
| E - Seat angle: | 72° | 72° | 72° | 72° |
| F - Kettenstrebe: | 445 mm | 445 mm | 445 mm | 445 mm |
| G - Steering tube: | 95 mm | 105 mm | 115 mm | 130 mm |
| H - Reach: | 424 mm | 449 mm | 473 mm | 495 mm |
| I - Stack: | 586 mm | 595 mm | 604 mm | 618 mm |
| J - Wheel distance: | 1.119 mm | 1.147 mm | 1.175 mm | 1.203 mm |
