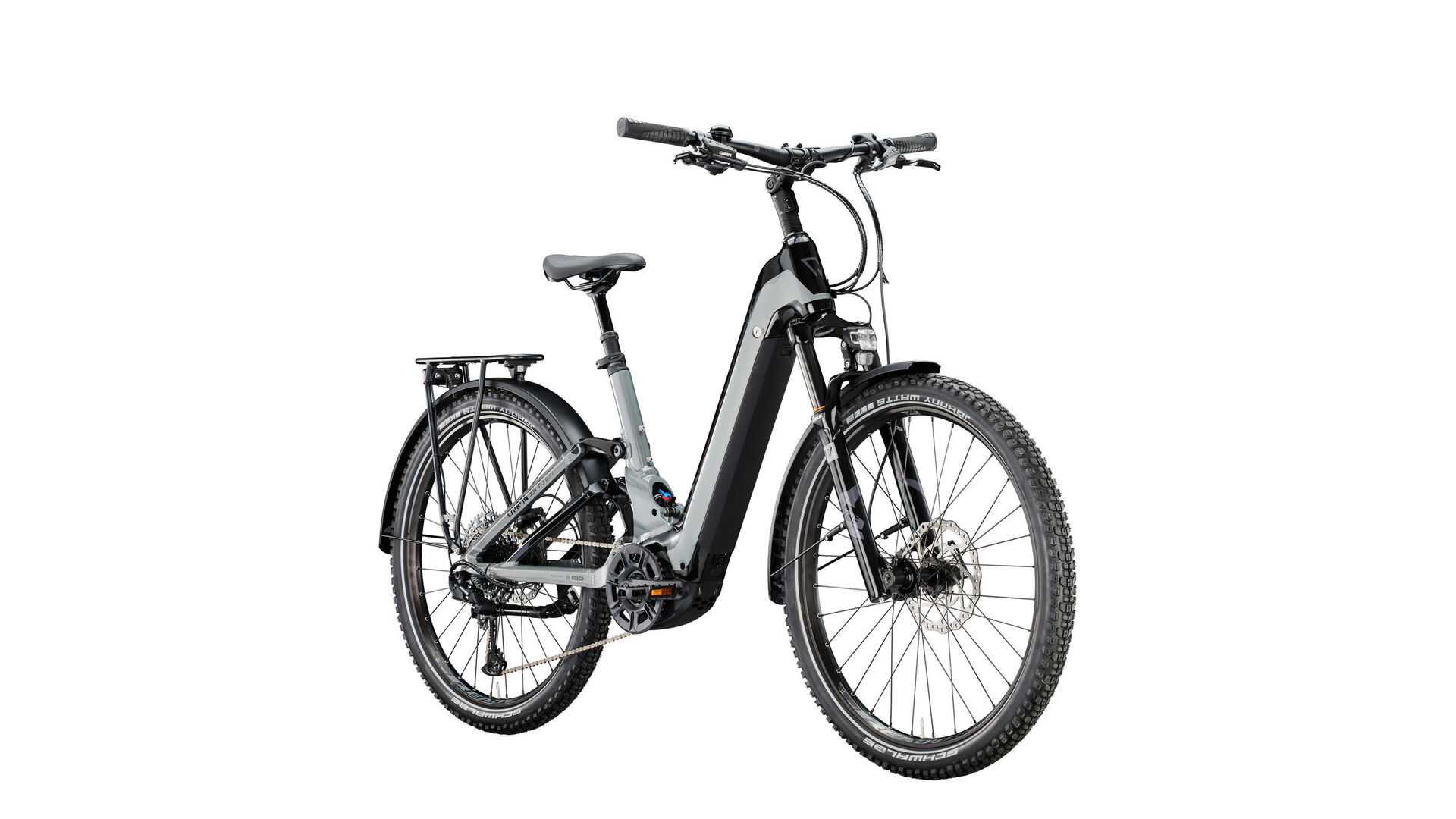

Cairon SUV FS 4.7 wave

4,599.95€ *
Find frame size
4,599.95€ *

E-BIKES ➜ Material: aluminium ✓ Weight: 28,20 kg ✓ Wheel size: 27,5" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now

  • 4251507979931
  • Product information "Cairon SUV FS 4.7 wave "
    Thinking ahead to the E-SUV principle: The powerful BOSCH "Performance CX" drive, which is powered by the high-capacity 625 Wh "PowerTube" battery, is joined by a complete frame suspension on the "Cairon SUV FS 4.7" for even greater comfort. The look remains clean, because the battery disappears completely in the down tube, where it can also remain for charging.

    The tires indicate that the E-SUV actually proves itself on any terrain: the 60mm wide "Johnny Watts" from SCHWALBE have a robust tread and cope well with forest paths and gravel roads. Suspension fork plus rear shock with 120mm travel not only cope with this terrain, they ensure that you glide confidently through potholes and tree roots. Shifting is by 12-speed SRAM "SX Eagle".

    The "Cairon SUV FS 4.7" is suitable for touring thanks to the luggage rack, to which bags or baskets can be attached for even shorter trips to the lake. Mudguards and the LED light make the bike fit for the way home through the city. The headlight shines with day-bright 80 lux the way safely. The rear light convinces with its stop light function. If the hydraulic disc brakes have to react spontaneously biting times, subsequent cyclists can react better.
    Spezifikationen
    Frame: CONWAY Intube Wave Fully Bosch, Alu
    Dropout: 0281180/0
    Fork: RST "Vibe Air", 110mm
    Headset: ZS44 / ZS56, Blocklock
    Rear shock: FOX "Float DPS"
    Crank arm: FSA "CK-745", 165 mm
    Chain ring / belt ring: SRAM "Gen4 Eagle DM non-B", 38 Z., w CG
    Bottom Bracket: BOSCH
    Brakes: TEKTRO "HD-M530", 4/2-Kolben
    Brake lever: TEKTRO "HD-M530"
    Front rotor: TEKTRO "TR203-17 2,3"", 203 mm
    Rear rotor: TEKTRO "TR180-17 2,3"", 180 mm
    Shifting lever: SRAM "SX Eagle Trigger", single click
    Rear derailleur: SRAM "SX Eagle", 12speed
    Cassette / belt sprocket: SRAM "PG 1210 Eagle", 11-50 Z.
    Chain / belt: SRAM "SX Eagle"
    Drive unit: BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
    Battery: BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
    Charger: Bosch 4 Ah
    Display: BOSCH, "Kiox", 4-Stufen, Remote Control, Schiebehilfe
    Sensor: Tretkraftmessung im Motor + Geschwindigkeitssensor
    Rims: RODI "Ready 30"
    Spokes: Niro
    Front hub: FORMULA "DC 711", 15 x 110 mm
    Rear hub: FORMULA "DCL 360", 12x142 mm
    Front tires: SCHWALBE "Johnny Watts", 60-584, Reflex
    Rear tires: SCHWALBE "Johnny Watts", 60-584, Reflex
    Handle bar: LEVEL 9 "Low Riser", Ø 31,8, 720 mm
    Stem: LEVEL 9 "Adjustable", 65mm
    Grips: SQlab "70X"
    Saddle: SELLE ROYAL "Vivo Athletic Ergo", Da
    Seat post: CONWAY "Droper Post", 30,9 mm, 75mm
    Mud Guards: SKS "A75R", Kunststoff
    Carrier: ATRAN "Cummute Pro", inkl. Federklappe
    Front light: CONTEC "DLUX 80 E+"
    Tail light: CONTEC "CTL 335 E", Stoplight
    Kickstand: URSUS "Wave", 40mm
    Pedals: VP "VPE-506"
    Technical data
    Category: SUV
    E-bike: yes
    Bosch Smart System: no
    Drive system: Bosch
    Drive version: middle motor
    Battery capacity: 625 Wh
    Support: till 25km/h
    Sex: ladies
    Frame shape: wave
    Frame size: S
    Frame height: 42 cm
    Wheel size: 27,5"
    Drive: chain drive
    Shifting type: derailleur
    Gears: 12-speed
    Transmission: 1x 12-fach
    Circuit brand: SRAM
    Shifting model: SX
    Brake system: hydraulic disc brake
    Travel: 110 mm
    Frame travel: 100 mm
    Features: suspension fork, damper, electronic sliding aid, fender
    Permissible total weight: 130 kg
    Material: aluminium
    Type: Article
    Colour: grey, grey
    Colour designation: graphitegrey metallic / shadowgrey
    Weight: 28,20 kg
    EAN 4251507979931
    Geometry data
    A - Seat tube: 420 mm
    B - Toptube: 580 mm
    C - Steering tube angle: 68°
    D - Stem length: 65 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 500 mm
    G - Steering tube: 150 mm
    H - Reach: 392 mm
    I - Stack: 631 mm
    J - Wheel distance: 1.176 mm
    A - Seat tube: 460 mm
    B - Toptube: 600 mm
    C - Steering tube angle: 68°
    D - Stem length: 65 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 500 mm
    G - Steering tube: 150 mm
    H - Reach: 412 mm
    I - Stack: 631 mm
    J - Wheel distance: 1.196 mm
    A - Seat tube: 500 mm
    B - Toptube: 620 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 500 mm
    G - Steering tube: 170 mm
    H - Reach: 425 mm
    I - Stack: 650 mm
    J - Wheel distance: 1.216 mm
    A - Seat tube: 540 mm
    B - Toptube: 640 mm
    C - Steering tube angle: 68°
    D - Stem length: 90 mm
    E - Seat angle: 73°
    F - Kettenstrebe: 500 mm
    G - Steering tube: 170 mm
    H - Reach: 445 mm
    I - Stack: 650 mm
    J - Wheel distance: 1.236 mm
    S M L XL
    A - Seat tube: 420 mm 460 mm 500 mm 540 mm
    B - Toptube: 580 mm 600 mm 620 mm 640 mm
    C - Steering tube angle: 68° 68° 68° 68°
    D - Stem length: 65 mm 65 mm 90 mm 90 mm
    E - Seat angle: 73° 73° 73° 73°
    F - Kettenstrebe: 500 mm 500 mm 500 mm 500 mm
    G - Steering tube: 150 mm 150 mm 170 mm 170 mm
    H - Reach: 392 mm 412 mm 425 mm 445 mm
    I - Stack: 631 mm 631 mm 650 mm 650 mm
    J - Wheel distance: 1.176 mm 1.196 mm 1.216 mm 1.236 mm
