E-BIKES ➜ Material: aluminium ✓ Weight: 24,30 kg ✓ Wheel size: 27,5" ✓ Brake system: hydraulic disc brake ✓ Gears: 9-speed ✓ E-bike: yes ✓ ➤ Discover now
Product information

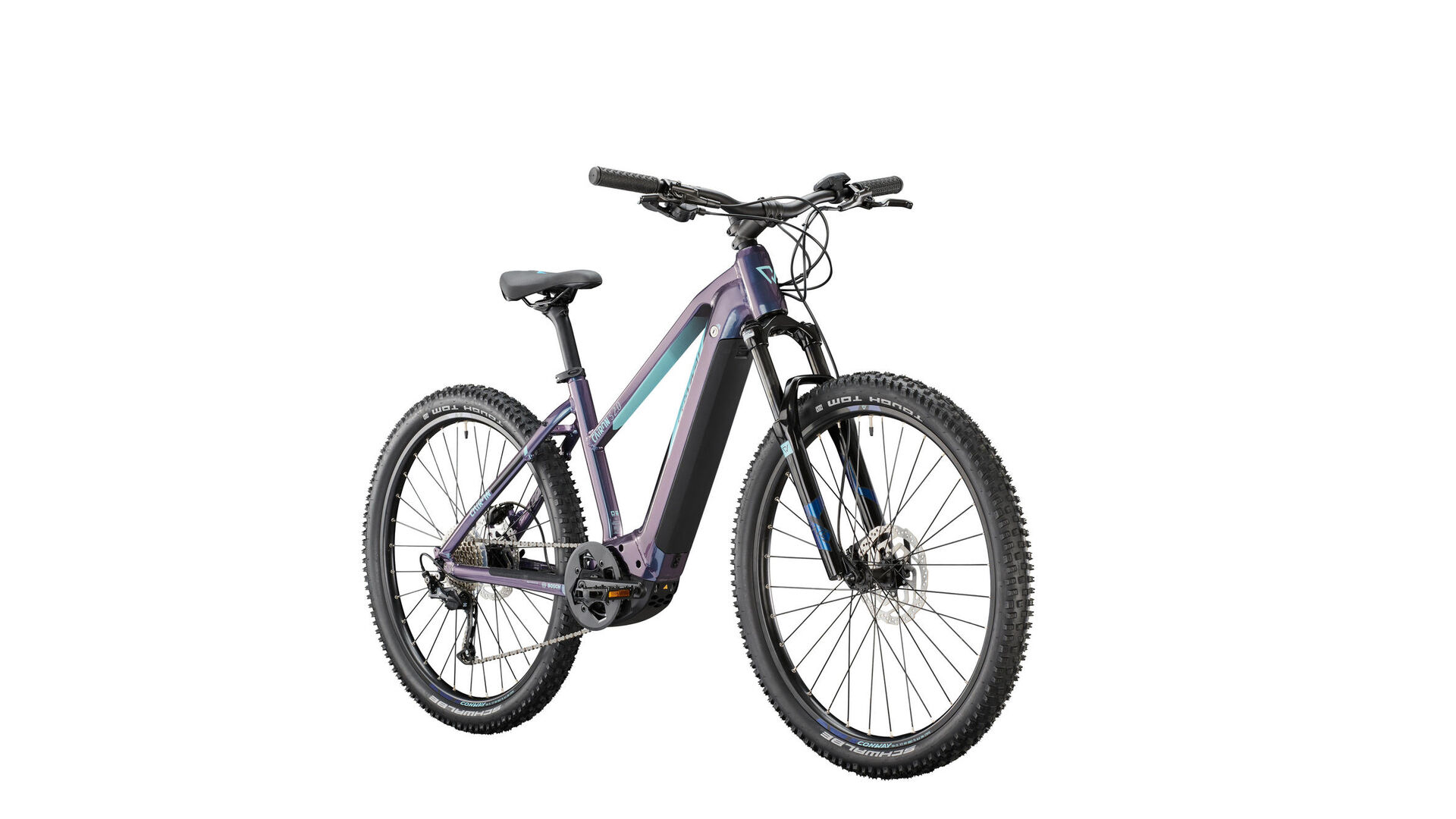

"Cairon S 2.0 625 Hardtail, trapeze "
Sporty on the road
Off-road and in a balanced and sporty way with the "Cairon S 2.0 625". The revised frame now accommodates the battery completely on the down tube and thus ensures a clean appearance of the e-hardtail. The battery supplies the BOSCH "Performance CX" mid-motor with 625 Wh of energy for extensive tours in the countryside. The 9-speed SHIMANO "Altus" derailleur provides the fine work for the drive.
Who speeds up strongly, must also brake with pinpoint accuracy: The hydraulic disc brakes from TEKTRO with their 180 mm disc diameter do the job extremely reliably. The RST suspension fork, which provides a lot of balance with its 120 mm, makes the e-hardtail suitable for trails and touring. With the large 29er wheels, the "Cairon S 2.0 625" is already prepared for bumpy trails. Combined with the coarse profile of the SCHWALBE "Tough Tom" tires, the bike is perfectly designed for dirt roads and light trails.
Off-road and in a balanced and sporty way with the "Cairon S 2.0 625". The revised frame now accommodates the battery completely on the down tube and thus ensures a clean appearance of the e-hardtail. The battery supplies the BOSCH "Performance CX" mid-motor with 625 Wh of energy for extensive tours in the countryside. The 9-speed SHIMANO "Altus" derailleur provides the fine work for the drive.
Who speeds up strongly, must also brake with pinpoint accuracy: The hydraulic disc brakes from TEKTRO with their 180 mm disc diameter do the job extremely reliably. The RST suspension fork, which provides a lot of balance with its 120 mm, makes the e-hardtail suitable for trails and touring. With the large 29er wheels, the "Cairon S 2.0 625" is already prepared for bumpy trails. Combined with the coarse profile of the SCHWALBE "Tough Tom" tires, the bike is perfectly designed for dirt roads and light trails.
Spezifikationen
| Frame: | CONWAY Intube Bosch, Alu |
| Dropout: | 0281175/0 |
| Fork: | RST "Blaze ML", 120 mm |
| Headset: | ZS44 / ZS56, Reduzierkonus |
| Crank arm: | MIRANDA "PSI", 170 mm |
| Chain ring / belt ring: | MIRANDA "Gen4 Narrow Wide 47,5 CL", 38 Z., w CG |
| Bottom Bracket: | BOSCH |
| Brakes: | TEKTRO "HD-M280" |
| Brake lever: | TEKTRO "HD-M280" |
| Front rotor: | TEKTRO "TR180-35", 180 mm |
| Rear rotor: | TEKTRO "TR180-35", 180 mm |
| Shifting lever: | SHIMANO "Altus SL-M2000" |
| Rear derailleur: | SHIMANO "Altus RD-M2000", 9speed |
| Cassette / belt sprocket: | SHIMANO "HG200", 11-36 Z. |
| Chain / belt: | SHIMANO "HG53" |
| Drive unit: | BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W |
| Battery: | BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh |
| Charger: | Bosch 2 Ah |
| Display: | BOSCH, "Purion", 4-Stufen, Schiebehilfe |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | CONWAY Hohlkammer "X17", Disc |
| Spokes: | Niro |
| Front hub: | CONWAY "Alloy" QR front |
| Rear hub: | CONWAY "Alloy" QR rear |
| Front tires: | SCHWALBE "Tough Tom", 60-584 |
| Rear tires: | SCHWALBE "Tough Tom", 60-584 |
| Handle bar: | CONWAY Riser, Ø 31,8, 720 mm |
| Stem: | CONWAY, 31,8 mm, 75 mm |
| Grips: | CONWAY "Sport" |
| Saddle: | SELLE ROYAL "Vivo Athletic Ergo", Da |
| Seat post: | CONWAY Patent, 31,6 mm, 350 mm |
| Pedals: | VP "VPE-506" |
Technical data
| Category: | Hardtail |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | BOSCH Performance Line CX |
| Drive version: | middle motor |
| Battery capacity: | 625 Wh |
| Support: | till 25km/h |
| Sex: | ladies |
| Frame shape: | trapeze |
| Frame size: | XS |
| Frame height: | 38 cm |
| Wheel size: | 27,5" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 9-speed |
| Transmission: | 1x 9-fach |
| Circuit brand: | Shimano |
| Shifting model: | Altus |
| Brake system: | hydraulic disc brake |
| Travel: | 120 mm |
| Features: | suspension fork, electronic sliding aid |
| Zulässiges Systemgewicht: | 130 kg |
| Material: | aluminium |
| Type: | Article |
| Colour: | blue |
| Colour designation: | darkpetrol metallic / lightblue |
| Weight: | 24,30 kg |
| EAN | 4251507980494 |
Geometry data
XS
S
M
L
| A - Seat tube: | 380 mm |
| B - Toptube: | 565 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 395 mm |
| I - Stack: | 616 mm |
| J - Wheel distance: | 1.131 mm |
| A - Seat tube: | 420 mm |
| B - Toptube: | 578 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 130 mm |
| H - Reach: | 408 mm |
| I - Stack: | 616 mm |
| J - Wheel distance: | 1.145 mm |
| A - Seat tube: | 460 mm |
| B - Toptube: | 598 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 75 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 423 mm |
| I - Stack: | 625 mm |
| J - Wheel distance: | 1.165 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 618 mm |
| C - Steering tube angle: | 67° |
| D - Stem length: | 90 mm |
| E - Seat angle: | 74° |
| F - Kettenstrebe: | 445 mm |
| G - Steering tube: | 140 mm |
| H - Reach: | 447 mm |
| I - Stack: | 625 mm |
| J - Wheel distance: | 1.185 mm |
| XS | S | M | L | |
|---|---|---|---|---|
| A - Seat tube: | 380 mm | 420 mm | 460 mm | 500 mm |
| B - Toptube: | 565 mm | 578 mm | 598 mm | 618 mm |
| C - Steering tube angle: | 67° | 67° | 67° | 67° |
| D - Stem length: | 75 mm | 75 mm | 75 mm | 90 mm |
| E - Seat angle: | 74° | 74° | 74° | 74° |
| F - Kettenstrebe: | 445 mm | 445 mm | 445 mm | 445 mm |
| G - Steering tube: | 130 mm | 130 mm | 140 mm | 140 mm |
| H - Reach: | 395 mm | 408 mm | 423 mm | 447 mm |
| I - Stack: | 616 mm | 616 mm | 625 mm | 625 mm |
| J - Wheel distance: | 1.131 mm | 1.145 mm | 1.165 mm | 1.185 mm |
