BIKES ➜ Weight: 9,30 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ Gears: 22-speed ✓ E-bike: no ✓ ➤ Discover now
Product information

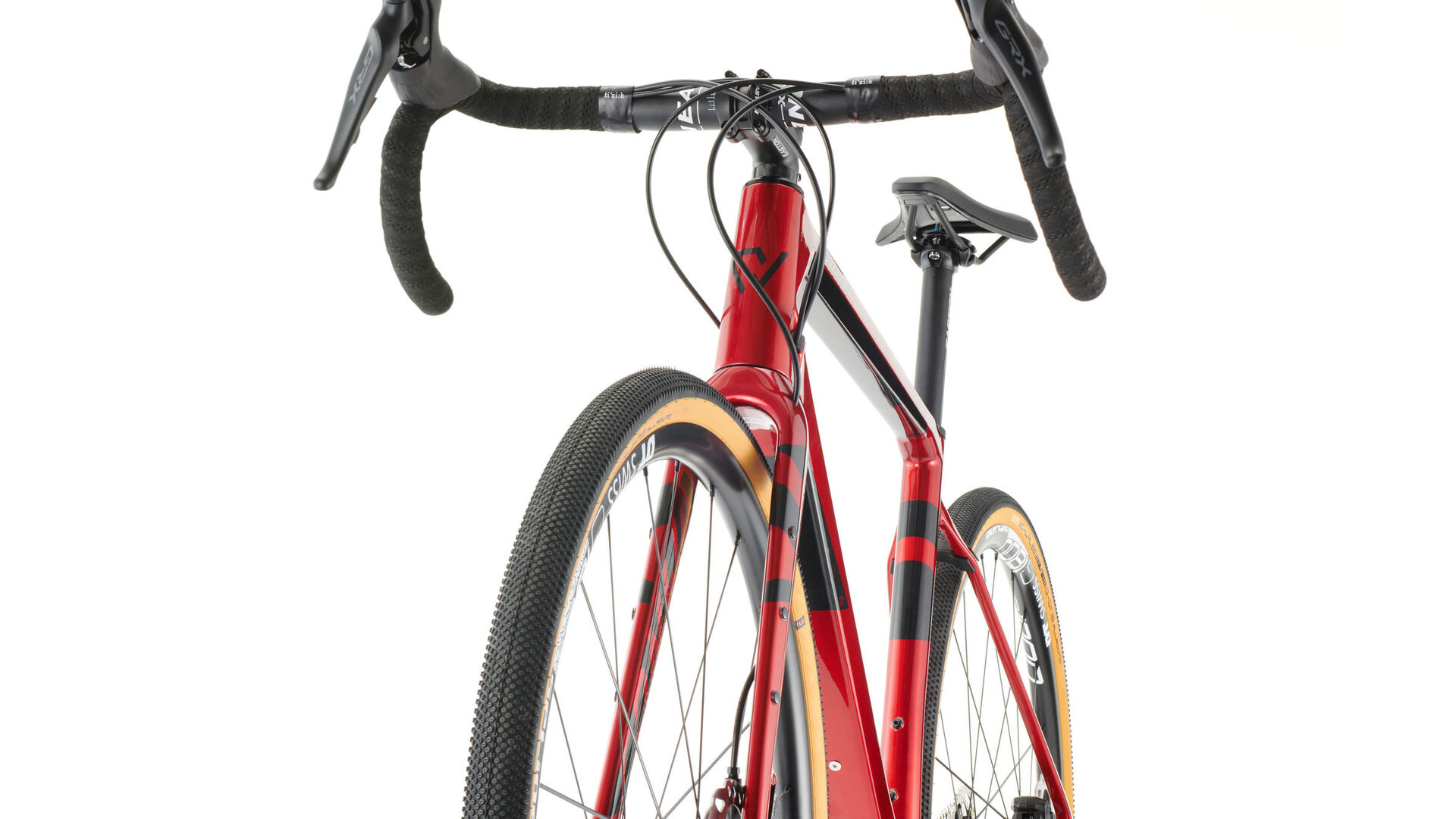

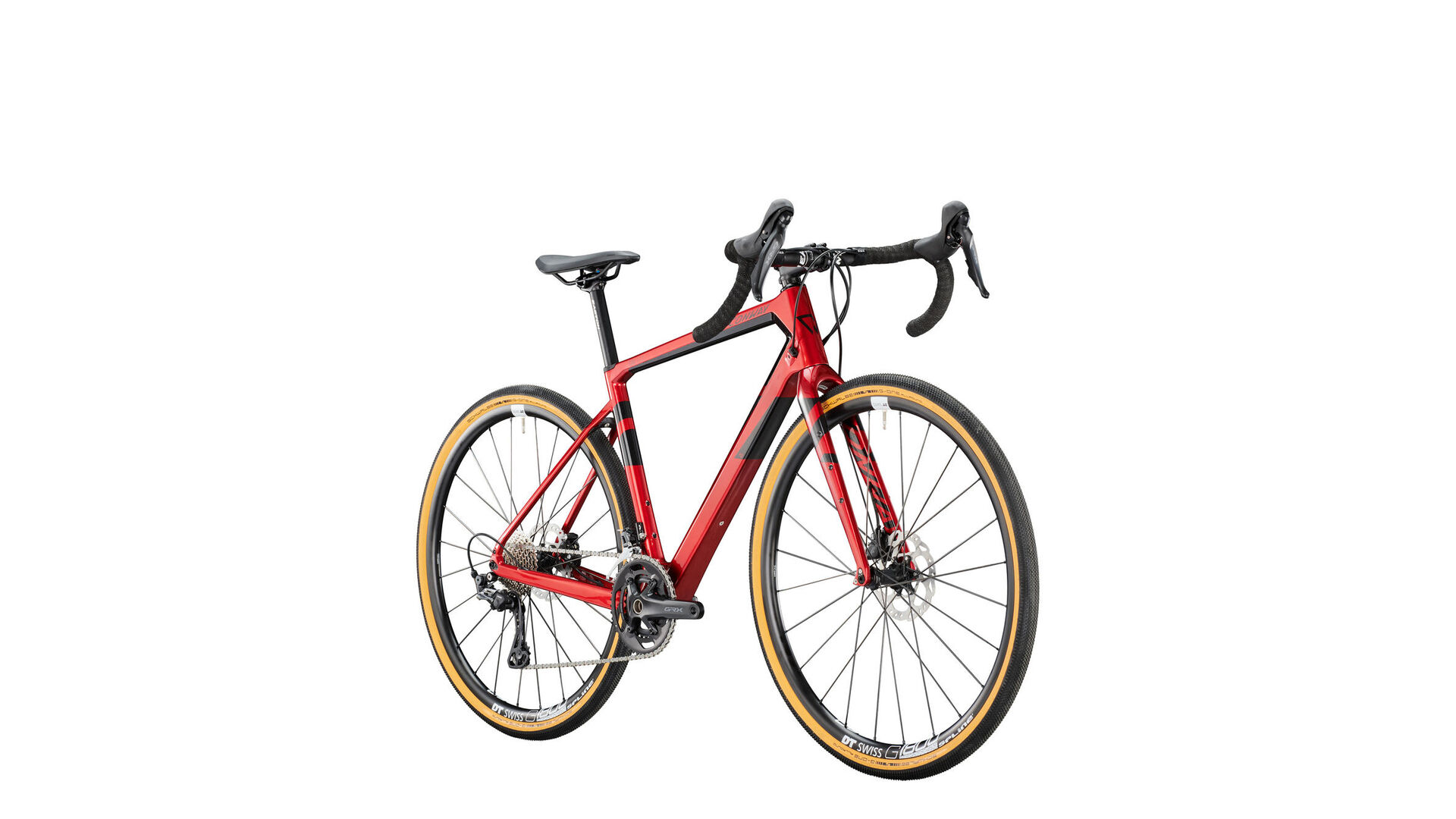

"GRV 10.0 diamond "
With the new CONWAY "GRV 10.0" you have all the options: Whether you use it as a winter bike for training, cyclocross racing or the long-distance bikepacking tour in the summer – the "GRV 10.0" is like a best friend you go through thick and thin, in this case through deep mud and fast rides on smooth asphalt.

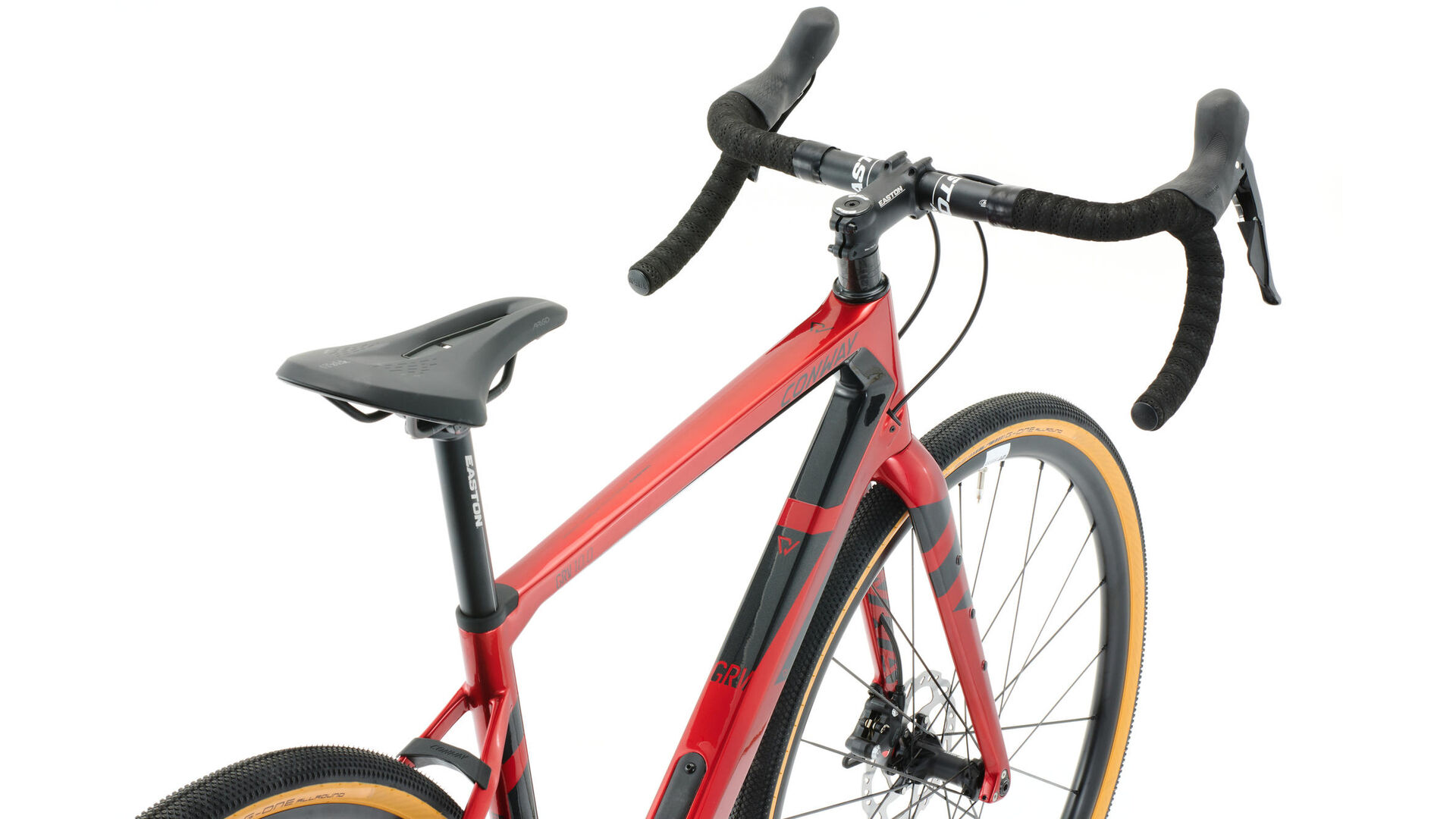

The now deeper seat stays provide a little more flexibility and cushioning, but without sacrificing stiffness in the approach. The lightweight, robust and torsionally stiff carbon frame with the integrated seat clamp provides you with a sporty riding position and riding style. It is pleasantly compact and can be steered nimbly, but always has the smoothness to confidently stay in line on long distances.

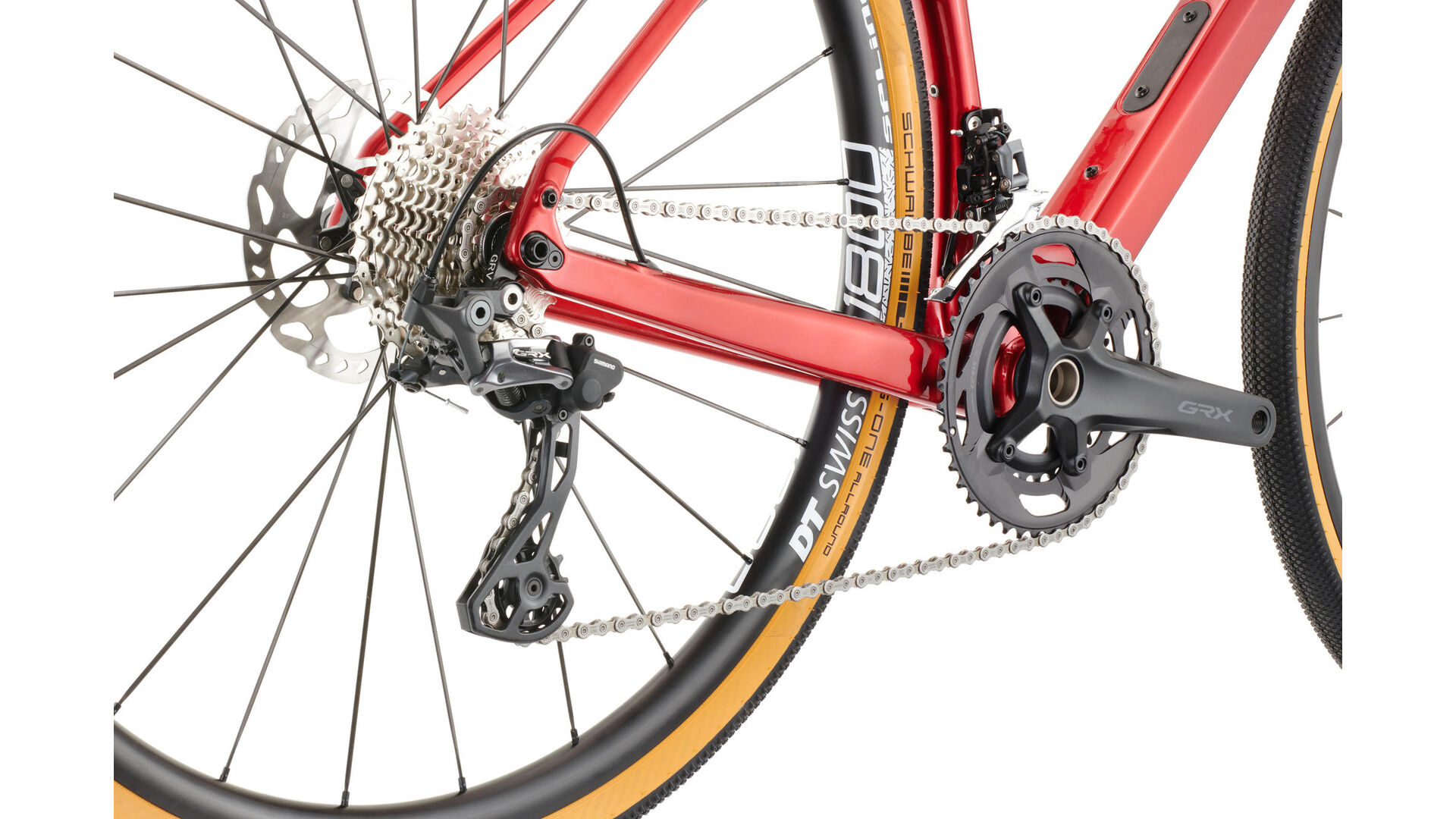

The carbon frame offers sufficient tire clearance: The 40 mm wide "G-One Allround Classic" from SCHWALBE are fitted to the DT SWISS "1800 Spline" wheels. On tour, the tires provide you with pleasant cushioning comfort. The high-quality version of the new SHIMANO "GRX" drive with 30/46 teeth on the chain ring and a 11-speed cassette are a great support with the 11-34 drive.
The now deeper seat stays provide a little more flexibility and cushioning, but without sacrificing stiffness in the approach. The lightweight, robust and torsionally stiff carbon frame with the integrated seat clamp provides you with a sporty riding position and riding style. It is pleasantly compact and can be steered nimbly, but always has the smoothness to confidently stay in line on long distances.
The carbon frame offers sufficient tire clearance: The 40 mm wide "G-One Allround Classic" from SCHWALBE are fitted to the DT SWISS "1800 Spline" wheels. On tour, the tires provide you with pleasant cushioning comfort. The high-quality version of the new SHIMANO "GRX" drive with 30/46 teeth on the chain ring and a 11-speed cassette are a great support with the 11-34 drive.
Spezifikationen
Frame: | CONWAY Gravel, Carbon |
Dropout: | 0.281.516/5 |
Fork: | CARBON "DU", Vollcarbon |
Headset: | IS42 / IS52 |
Crank set: | SHIMANO "GRX FC-RX600 11", 30/46 Z., 165mm |
Bottom Bracket: | SHIMANO "BB-71", Press-Fit |
Brakes: | SHIMANO "GRX BR-RX400" |
Brake lever: | SHIMANO "GRX ST-RX600" |
Front rotor: | SHIMANO "SM-RT70", 160 mm |
Rear rotor: | SHIMANO "SM-RT70", 160 mm |
Shifting lever: | SHIMANO "GRX ST-RX600" |
Front derailleur: | SHIMANO "GRX FD-RX810" |
Rear derailleur: | SHIMANO "GRX RD-RX810", 11speed |
Cassette / belt sprocket: | SHIMANO "HG700", 11-34 Z. |
Chain / belt: | SHIMANO "HG601" |
Rims: | DT SWISS „G1800 Spline" |
Spokes: | DT SWISS |
Front hub: | DT SWISS „G1800 Spline″, 12 x 100 mm |
Rear hub: | DT SWISS „G1800 Spline″, 12 x 142 mm |
Front tires: | SCHWALBE "G-One Allround classic", 700 x 40 |
Rear tires: | SCHWALBE "G-One Allround classic", 700 x 40 |
Handle bar: | EASTON "EA50 AX", 400 mm |
Stem: | EASTON "EA50", 80mm |
Grips: | FIZIK "Bar Tape" |
Saddle: | FIZIK "ARGO Terra 150" |
Seat post: | EASTON "EA50", 27,2 mm, 350 mm |
Technical data
Category: | Gravel Bike |
E-bike: | no |
Sex: | gents |
Frame shape: | diamond |
Frame size: | S |
Frame height: | 45 cm |
Wheel size: | 28" |
Drive: | chain drive |
Shifting type: | derailleur |
Gears: | 22-speed |
Transmission: | 2x 11-fach |
Circuit brand: | Shimano |
Shifting model: | GRX810 |
Brake system: | hydraulic disc brake |
Permissible total weight: | 130 kg |
Type: | Article |
Colour: | red, black |
Colour designation: | red metallic / black metallic |
Weight: | 9,30 kg |
EAN | 4251507983501 |
Geometry data
S
M
L
XL
A - Seat tube: | 448 mm |
B - Toptube: | 528 mm |
C - Steering tube angle: | 71° |
D - Stem length: | 80 mm |
E - Seat angle: | 74° |
F - Kettenstrebe: | 420 mm |
G - Steering tube: | 140 mm |
H - Reach: | 361 mm |
I - Stack: | 564 mm |
J - Wheel distance: | 998 mm |
A - Seat tube: | 471 mm |
B - Toptube: | 545 mm |
C - Steering tube angle: | 72° |
D - Stem length: | 80 mm |
E - Seat angle: | 74° |
F - Kettenstrebe: | 420 mm |
G - Steering tube: | 150 mm |
H - Reach: | 374 mm |
I - Stack: | 576 mm |
J - Wheel distance: | 1.011 mm |
A - Seat tube: | 493 mm |
B - Toptube: | 570 mm |
C - Steering tube angle: | 72° |
D - Stem length: | 90 mm |
E - Seat angle: | 73° |
F - Kettenstrebe: | 420 mm |
G - Steering tube: | 170 mm |
H - Reach: | 388 mm |
I - Stack: | 597 mm |
J - Wheel distance: | 1.026 mm |
A - Seat tube: | 504 mm |
B - Toptube: | 590 mm |
C - Steering tube angle: | 72° |
D - Stem length: | 100 mm |
E - Seat angle: | 73° |
F - Kettenstrebe: | 420 mm |
G - Steering tube: | 190 mm |
H - Reach: | 402 mm |
I - Stack: | 616 mm |
J - Wheel distance: | 1.046 mm |
S | M | L | XL | |
---|---|---|---|---|
A - Seat tube: | 448 mm | 471 mm | 493 mm | 504 mm |
B - Toptube: | 528 mm | 545 mm | 570 mm | 590 mm |
C - Steering tube angle: | 71° | 72° | 72° | 72° |
D - Stem length: | 80 mm | 80 mm | 90 mm | 100 mm |
E - Seat angle: | 74° | 74° | 73° | 73° |
F - Kettenstrebe: | 420 mm | 420 mm | 420 mm | 420 mm |
G - Steering tube: | 140 mm | 150 mm | 170 mm | 190 mm |
H - Reach: | 361 mm | 374 mm | 388 mm | 402 mm |
I - Stack: | 564 mm | 576 mm | 597 mm | 616 mm |
J - Wheel distance: | 998 mm | 1.011 mm | 1.026 mm | 1.046 mm |
