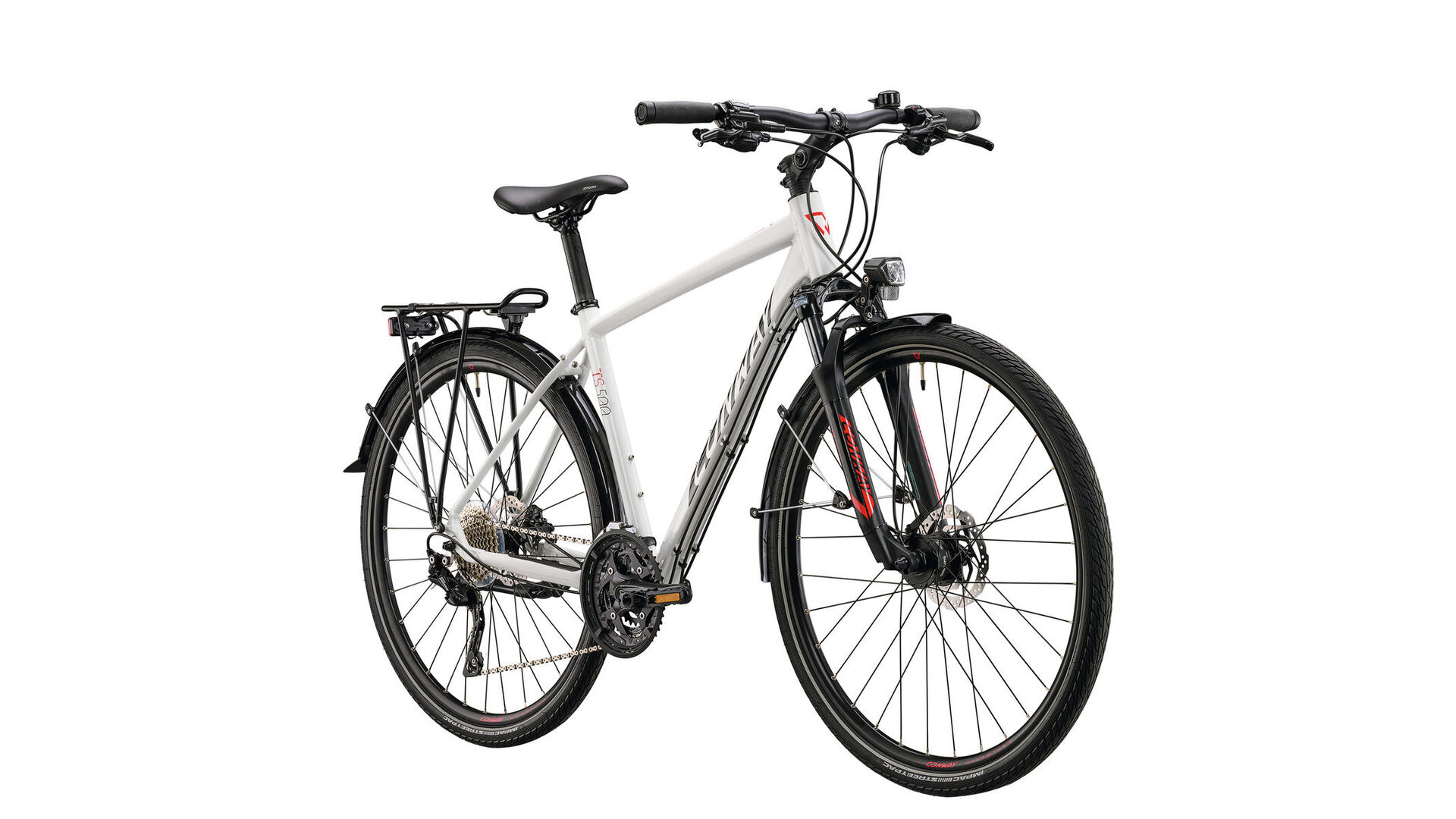

TS 500 trekking bike, diamond
899.95€ *
BIKES ➜ Material: aluminium ✓ Weight: 17,30 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
BIKES ➜ Material: aluminium ✓ Weight: 17,30 kg ✓ Wheel size: 28" ✓ Brake system: hydraulic disc brake ✓ Permissible total weight: 130 kg ✓ ➤ Discover now
| Frame: | CONWAY, Alu |
| Dropout: | 0.758.916/1 |
| Fork: | RST "Volant ML", 63mm |
| Headset: | ZS44 / ZS44 |
| Crank set: | SHIMANO "FC-CT521", 26/36/48 Z., 175 mm |
| Bottom Bracket: | SHIMANO "BB-ES300" |
| Brakes: | SHIMANO "BR-MT200" |
| Brake lever: | SHIMANO "BL-MT200" |
| Front rotor: | SHIMANO "SM-RT10", 160 mm |
| Rear rotor: | SHIMANO "SM-RT10", 160 mm |
| Shifting lever: | SHIMANO "Deore SL-T6000" |
| Front derailleur: | SHIMANO "Deore FD-T6000" |
| Rear derailleur: | SHIMANO "Deore RD-T6000", 10 speed |
| Cassette / belt sprocket: | SHIMANO "HG500", 11-34 Z. |
| Chain / belt: | KMC "X10" |
| Rims: | CONWAY Hohlkammer "X11", Disc |
| Spokes: | Stahl schwarz |
| Front hub: | SHIMANO Nabendynamo "DH3D37" QR |
| Rear hub: | SHIMANO "FH-TX505" QR |
| Front tires: | IMPAC "Streetpac", 47-622, Reflex |
| Rear tires: | IMPAC "Streetpac", 47-622, Reflex |
| Handle bar: | CONWAY Riser, 700 mm |
| Stem: | CONWAY, 31,8 mm |
| Grips: | HERRMANS "DD37" |
| Saddle: | SELLE ROYAL "Shadow" |
| Seat post: | CONWAY Patent, 31,6 mm |
| Mud Guards: | SKS, Kunststoff |
| Carrier: | ATRAN "Tour Pro", inkl. Federklappe |
| Dynamo: | SHIMANO Nabendynamo "DH3D37" QR |
| Front light: | CONTEC "DLUX 50" |
| Tail light: | CONTEC "TL135" |
| Kickstand: | Ursus, Alu |
| Pedals: | Marwi "SP 610" |
| Category: | trekking bike |
| E-bike: | no |
| Sex: | gents |
| Frame shape: | diamond |
| Frame size: | S |
| Frame height: | 45 cm |
| Wheel size: | 28" |
| Drive: | chain drive |
| Shifting type: | derailleur |
| Gears: | 30-speed |
| Transmission: | 3x 10-fach |
| Circuit brand: | Shimano |
| Shifting model: | Deore |
| Brake system: | hydraulic disc brake |
| Travel: | 63 mm |
| Features: | suspension fork, hub dynamo, fender |
| Permissible total weight: | 130 kg |
| Material: | aluminium |
| Type: | Article |
| Colour: | white, black |
| Colour designation: | white / black |
| Weight: | 17,30 kg |
| EAN | 4251507963374 |
| A - Seat tube: | 450 mm |
| B - Toptube: | 584 mm |
| C - Steering tube angle: | 71° |
| D - Seat angle: | 73° |
| E - Kettenstrebe: | 450 mm |
| F - Steering tube: | 135 mm |
| G - Stack: | 623 mm |
| H - Wheel distance: | 1.073 mm |
| A - Seat tube: | 500 mm |
| B - Toptube: | 584 mm |
| C - Steering tube angle: | 71° |
| D - Seat angle: | 73° |
| E - Kettenstrebe: | 450 mm |
| F - Steering tube: | 135 mm |
| G - Stack: | 623 mm |
| H - Wheel distance: | 1.073 mm |
| A - Seat tube: | 550 mm |
| B - Toptube: | 603 mm |
| C - Steering tube angle: | 71° |
| D - Seat angle: | 73° |
| E - Kettenstrebe: | 450 mm |
| F - Steering tube: | 150 mm |
| G - Stack: | 637 mm |
| H - Wheel distance: | 1.092 mm |
| A - Seat tube: | 600 mm |
| B - Toptube: | 622 mm |
| C - Steering tube angle: | 71° |
| D - Seat angle: | 73° |
| E - Kettenstrebe: | 450 mm |
| F - Steering tube: | 170 mm |
| G - Stack: | 656 mm |
| H - Wheel distance: | 1.113 mm |
| S | M | L | XL | |
|---|---|---|---|---|
| A - Seat tube: | 450 mm | 500 mm | 550 mm | 600 mm |
| B - Toptube: | 584 mm | 584 mm | 603 mm | 622 mm |
| C - Steering tube angle: | 71° | 71° | 71° | 71° |
| D - Seat angle: | 73° | 73° | 73° | 73° |
| E - Kettenstrebe: | 450 mm | 450 mm | 450 mm | 450 mm |
| F - Steering tube: | 135 mm | 135 mm | 150 mm | 170 mm |
| G - Stack: | 623 mm | 623 mm | 637 mm | 656 mm |
| H - Wheel distance: | 1.073 mm | 1.073 mm | 1.092 mm | 1.113 mm |
